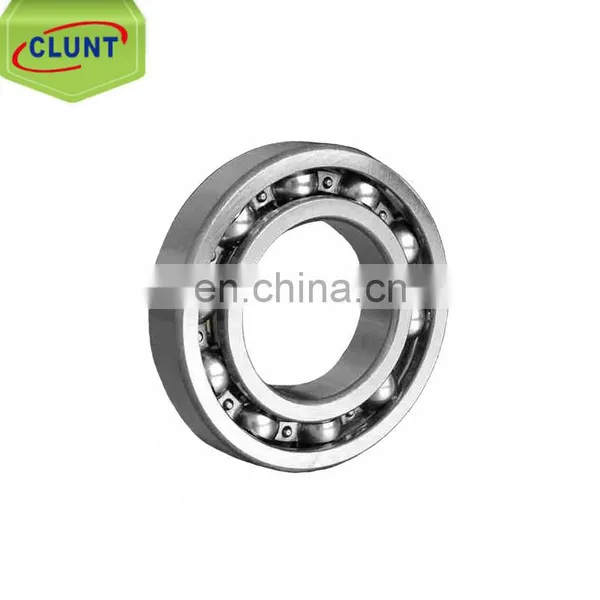

car lift ball bearings 6352-2rs China factory bearing 6352
Descriptions of hydraulic car lift bearings 6352
Bearings 6352 ball bearings, deep groove ball bearing, bearing can be rubber seals or steel seals to protect the bearing from dust or any possible contamination.
Shielded bearings have metal seals that connect to the outer race only; this protects the bearing from dust and large solid particles but not from moisture. They are generally used in faster running machines as they have less friction than the sealed bearings.
Bearings 6352 mainly take radial load as well as take moderate axial load With less coefficient of friction ,high limiting speed, large size range and variations of structure.
Bearings 6352 is a kind of the most common rolling bearing. The basic type of deep groove ball bearing is composed of an outer ring, a ring, a group of steel ball and a group of cage.There are single and double row of two deep groove ball bearings, deep groove ball structure is sealed and open two structure, open refers to the bearing without sealing structure,sealing type deep groove ball into the dust seal and oil seal. Dust seal cover material for steel plate stamping, plays only a simpleprevent dust from entering the bearing raceway. Oil proof typecontact type oil seal, can effectively prevent bearing grease inside the spillover.
Bearings 6352 is non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway, the bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings. Deep groove ball bearing have various types in structure, beside open type bearings, shield or seals at both side can also be provided.
This bearings 6352 is particularly versatile, it’s sample in design, non-separable, suitable for high and even very high speeds and is robust in operation, requiring little maintenance.Because of its raceway grooves and conformity between the raceway grooves and the balls, it’s able to accommodate axial loads in both directions, even at high speeds, in addition to radial loads.
Thin Section bearings are optimal where the major design constraints are space, weight and load. They are available with metal shields (ZZ) or rubber seals (2RS). The available bore dimension range from 10mm to 200mm.
| Bearing type: | Deep groove ball bearing |
| Bearing series |
60 Series,62 Series,63 Series,68 Series,69 Series,40 series,Miniature Bearings R Series,(Inch) Bearings,Non Standard bearings,Pillow Block Bearings,Bicycle bearings, Skateboard bearings |
| Material | CGr15 bearing steel,Chrome steel |
| Tolerance | ABEC-1,ABEC-3,ABEC-5,ABEC-7. |
| Vibration | Z2V2; Z3V3 |
| Internal clearance | C0,C2,C3,C4,C5 |
| Seals type | OPEN, ZZ, 2RS |
| Hardness | 59-64 |
| Hand feeling | With very smooth feeling |
| Usage |
Household appliance, medical facilities, communication devices, office facilities and motor industry. |
| Package |
1)tube package+outer carton+pallets 2)single box+outer carton+pallets 3)tube package+middle box+outer carton+pallets 4)according to your requirement |
| Payment term |
A:30%T/T in advance,70% T/T Against Copy of B/L .B:100% L/C at sight Bank transfer |
Specifications of hydraulic car lift bearings 6352
| Model Number | bearings 6352 |
| Structure | Deep Groove |
| Type | Ball |
| Bore Size | 260mm |
| Outside Diameter | 540mm |
| Width | 102mm |
| Precision Rating | ABEC-1,3,5,7,9 |
| Seals Type | OPEN, RS, 2RS, Z, ZZ |
| Internal clearance codes | C0,C2, C3, C4, C5 |
| Vibration and Noise | Z1V1, Z2V2, Z3V3 |
| Number of Row | Single Row |
| Place of Origin | China |
| Material | Chrome steel, carbon steel, stainless steel |
| Lubrication | Oil, grease |
| Packaging Details | 1. Industrial packaging: carton box+ wood pallets 2. Commercial packing: individual plastic bag+ individual carton box+ wood pallets 3. Customers' requirement |
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Applications of hydraulic car lift bearings 6352
Bearings 6352 Widely used for food, beverage processing machinery, medical appliances and medicine equipment Typical applications: Electric motors, automotive applications, home appliances and industrial equipment. It has high speed, high precision, noise and vibration, main radial load, can withstand the axial load
Features of hydraulic car lift bearings 6352
Deep groove ball bearings 6352 usually with simple and easy structure, so it is also easier for maintenance. It's mainly used for carrying radial load, also can endure certain amount of axial load, deep groove ball bearing is widely used in many machinery industry, such as automobile, tractor, engine bed, electrical machinery, water pump, agricultural machinery and fabrics machine, etc.
Benefits of hydraulic car lift bearings 6352
Higher load rating compared to single-row deep groove ball bearings
Other bearing variants available on request:
Outer and inner ring: diameter, width, threads etc.
Contour options: crowned, gothic etc.
Special seals
Model numbers of deep groove ball bearings
|
Model
|
