6300-zz deep ball bearing 6300 2RS 6300RS
1.brief description of deep groove ball bearing
Deep groove ball bearing is the most common type among ball bearings.The basic structure of deep groove ball bearing include an outer ring,an inner ring, a group of steel ball and a set of cage. Deep groove ball bearing has two types: single row and double rows bearings. The simple structure,convenience,and large production contribute deep groove ball bearing to be the most widely used kind. Deep goove ball bearing is nonseperatable and the design is very simple. This kind of bearing don't need special maintainance
Special properties:
1. High accuracy, High speed
2. ISO 9001:2000
3. Can be customized according to your needs
4. Can provide small & miniature standard and non-standard ball berings
5. Reasonable price
6. Technology: low vibration, low noise, high precision and durability
With one or two side rubber seal RS, 2RS
With one or two side metal shields Z and ZZ (2Z)
With a snap ring groove in outer ring N
With a snap ring groove in outer ring and external snap ring NR
6300-zz deep ball bearing 6300 2RS 6300RS details:
|
6300-2RS Bearing is double sealed, radial and deep groove ball bearing,6300-2RS bearing is made of Chrome Steel with chrome steel balls and steel cage,bearing is closed with rubber seals to protect the bearing from dust or any possible contamination,6300-2RS is sealed and self lubricated,the quality is set to EMQ (electric motor quality) to ensure high speed6300-2RS bearing is lubricated with grease.
|
· Single Row Deep Groove Ball Bearings: Single row deep groove ball bearings are the most commonly used bearing type, which can accommodate radial and thrust loads. These bearings can be used at high speeds. The self-aligning capacity of deep groove ball bearings is limited; therefore the bearing locations must be accurately aligned.
· Double Row Deep Groove Ball Bearings Double row deep groove ball bearings have, contrary to their former design, no filling slots. This is the reason that these bearings can accommodate thrust loads in both directions. These are fitted with cages of glass-fibre reinforced polyamide 66 and lubricated with grease. This ball bearing is not suitable, where angular misalignments have to be accommodated
6300-zz deep ball bearing 6300 2RS 6300RS technical data:
| RPM Grease: | 22000 |
| Brand: | CLUNT |
| Sealing: | Sealed |
| Width: | 11mm |
| Outside Dia: | 35mm |
| Inside Dia: | 10mm |
| RPM Oil: | 28000 |
6300-zz deep ball bearing 6300 2RS 6300RS catalogue:
| New Items | Specifications(dxDxB | Weight/kg |
| 6200 | 10x30x9 | 0.0277 |
| 6201 | 12x32x10 | 0.0365 |
| 6202 | 15x35x11 | 0.0431 |
| 6203 | 17x40x12 | 0.065 |
| 6204 | 20x47x14 | 0.11 |
| 6205 | 25x52x15 | 0.134 |
| 6206 | 30x62x16 | 0.218 |
| 6207 | 35x72x17 | 0.284 |
| 6208 | 40x80x18 | 0.37 |
| 6209 | 45x85x19 | 0.428 |
| 6210 | 50x90x20 | 0.462 |
| 6211 | 55x100x21 | 0.59 |
| 6212 | 60x110x22 | 0.8 |
| 6213 | 65x120x23 | 1.01 |
| 6214 | 70x125x24 | 1.34 |
| 6215 | 75x130x25 | 1.16 |
| 6216 | 80x140x26 | 1.39 |
| 6217 | 85x150x28 | 1.92 |
| 6218 | 90x160x30 | 2.19 |
| 6219 | 95x170x32 | 2.61 |
| 6220 | 100x180x34 | 3.23 |
| 6221 | 105x190x36 | 3.66 |
| 6222 | 110x200x38 | 4.29 |
| 6224 | 120x215x40 | 5.16 |
| 6226 | 130x230x40 | 6.19 |
| 6228 | 140x250x42 | 9.44 |
| 6230 | 150x270x45 | 10.4 |
| 6232 | 160x290x48 | 15 |
| 6234 | 170x310x52 | 16.5 |
| 6236 | 180x320x52 | 16.5 |
| 6236 | 180x320x52 | 15.4 |
| 6236 | 180x320x52 | 15.4 |
| 6238 | 190x340x55 | 23 |
| 6238 | 190x340x55 | 18.6 |
| 6238 | 190x340x55 | 18.9 |
| 6240 | 200x360x58 | 24.8 |
| 6244 | 220x400x65 | 34.7 |
| 6248 | 240x440x72 | 51.8 |
| 6252 | 260x480x80 | 68.1 |
| 6256 | 280×500×80 | 71 |
| 6260 | 300×540×85 | 88.5 |
| 6264 | 320×580×92 | 110 |
| 6268 | 340×620×92 | 110 |

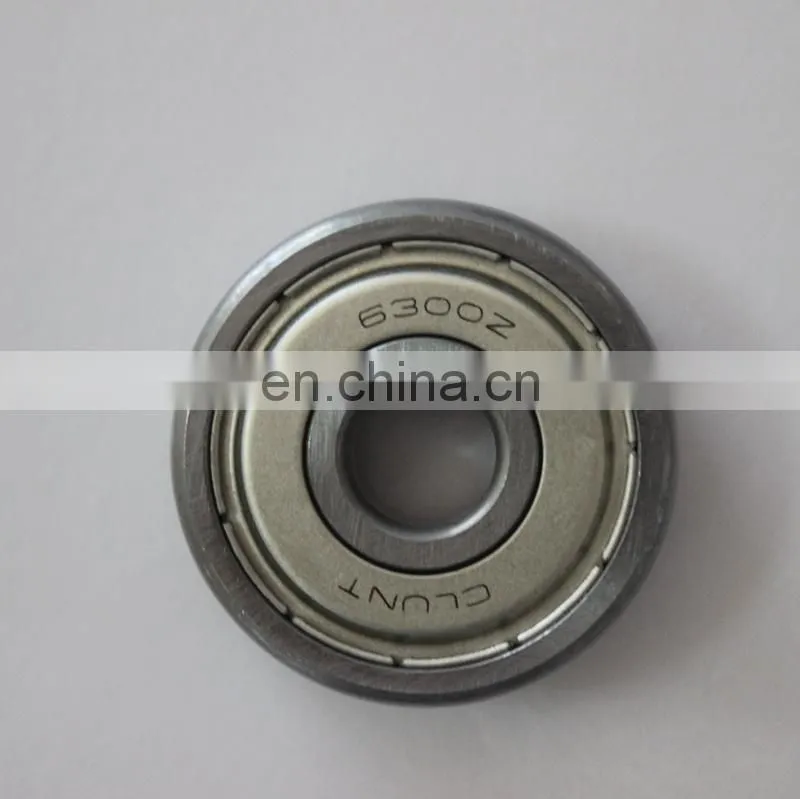

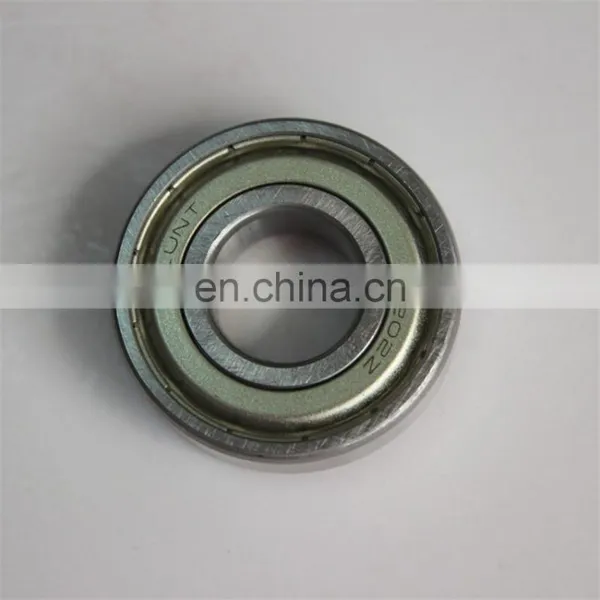

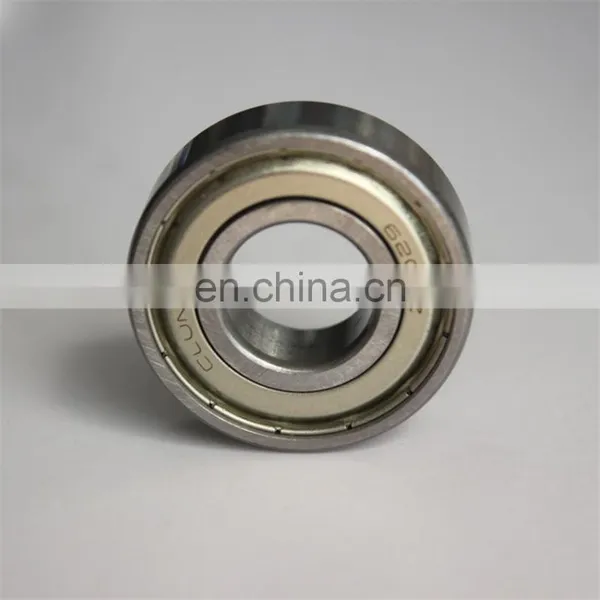

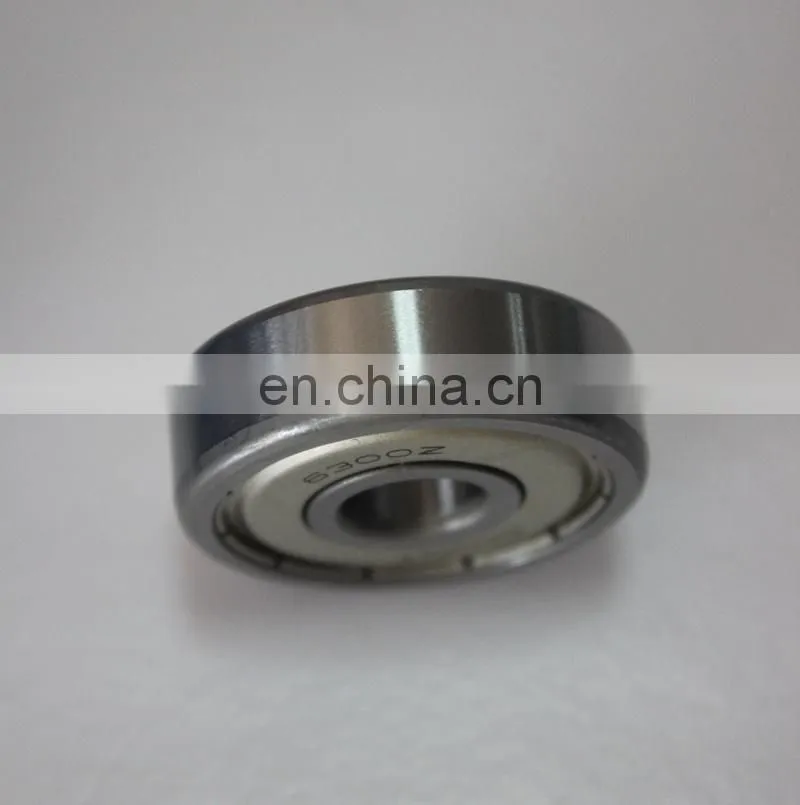

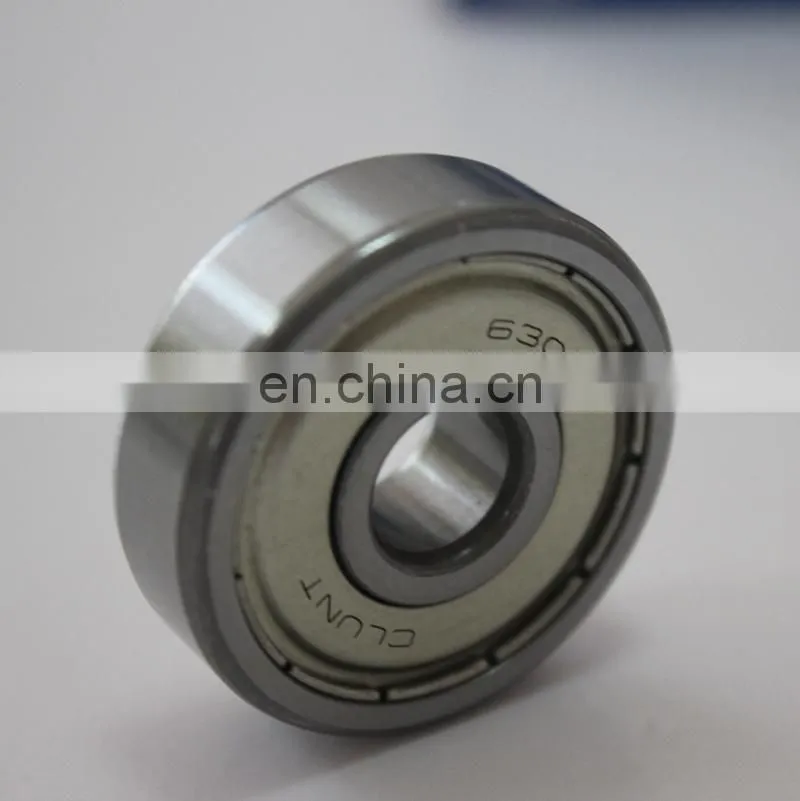

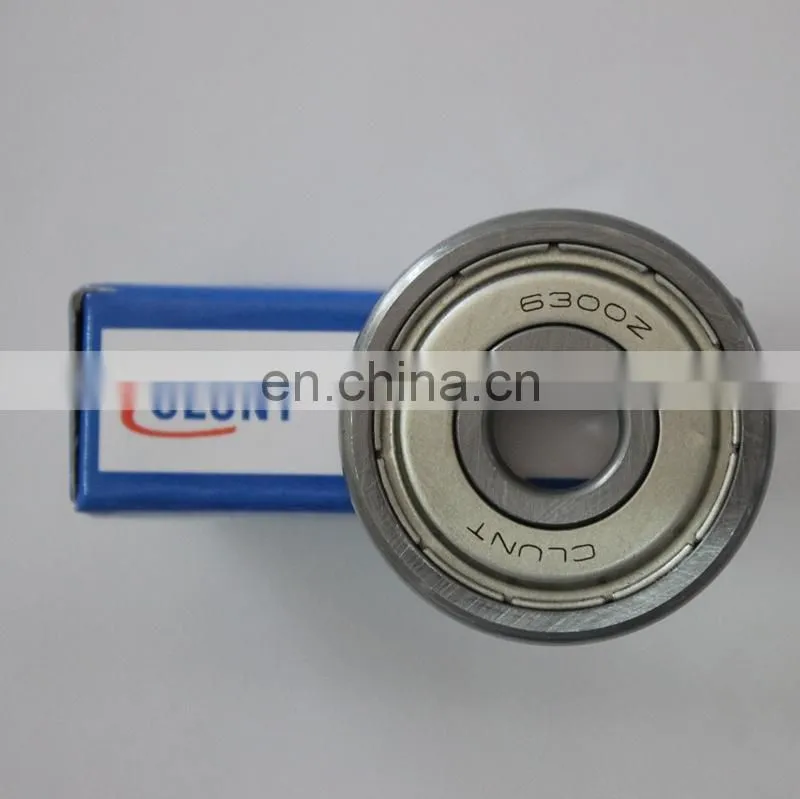

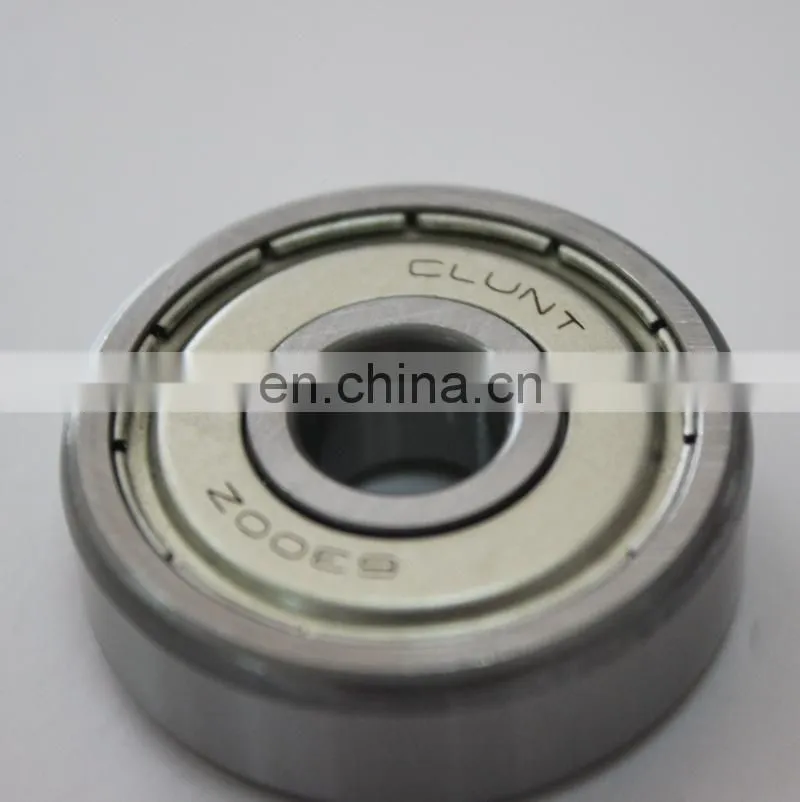

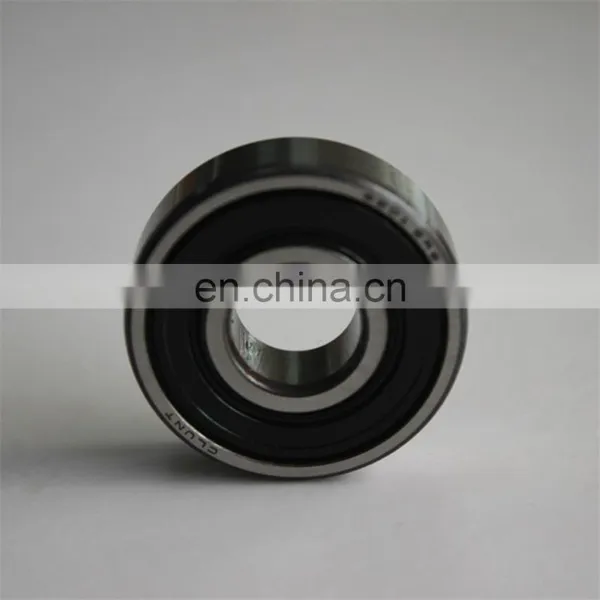

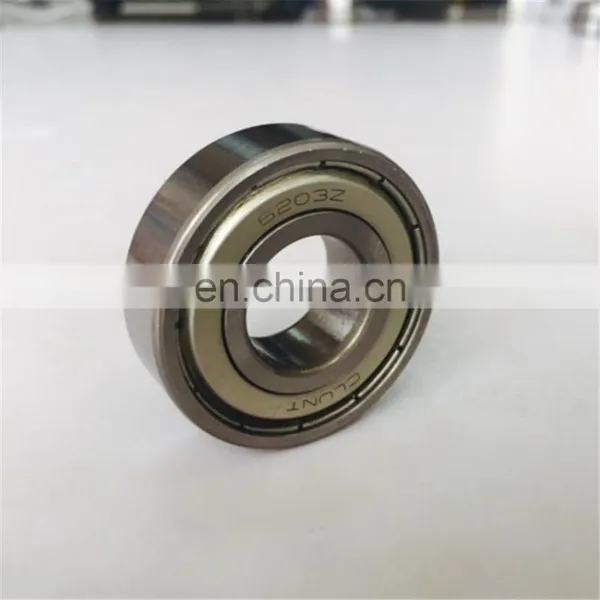

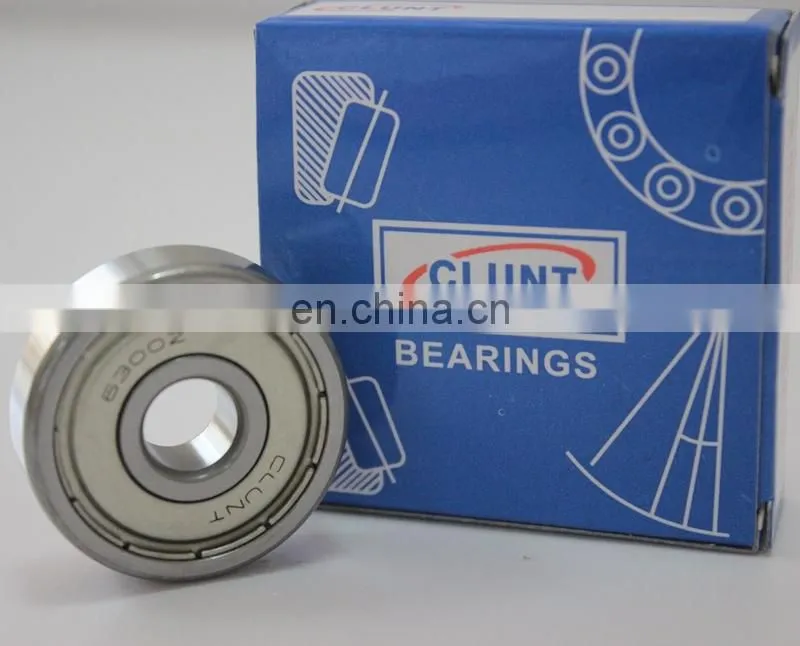

6300-zz deep ball bearing 6300 2RS 6300RS picture:
