China supplier ball bearing 6202 6202-2RS 6202ZZ bearing

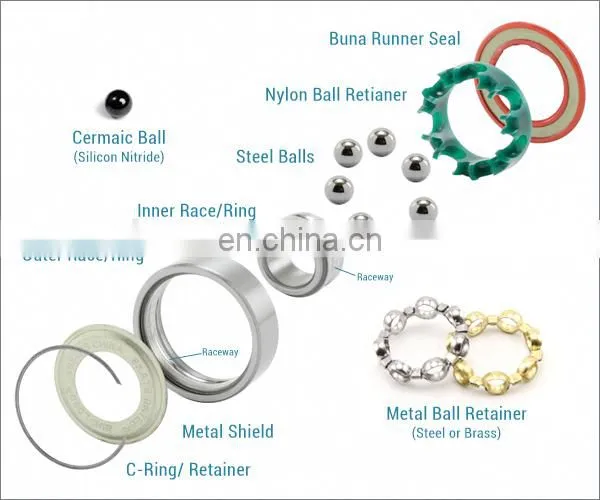

china supplier ball bearing 6202 6202-2RS 6202ZZ bearing structure :
china supplier ball bearing 6202 6202-2RS 6202ZZ bearing technical data:
Bearing |
Bore |
Outer Diameter |
Width |
Radius |
Basic Load Rating (lbs) |
|||||
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
Dynamic |
Static |
|
6202 |
15 |
0.5906 |
35 |
1.3780 |
11 | .4331 |
1.0 |
.039 |
1740 |
805 |
| Bearing No. | principle dimensions (mm) | limiting speeds(rpm) | basic load ratings(kn) | mass (kg) | |||||
| d | D | B | rsmin | Grease | oil | dynamic | static | approx | |
| 623 | 3 | 10 | 4 | 0.15 | 50000 | 60000 | 0.63 | 0.218 | 0.0033 |
| 624 | 4 | 13 | 5 | 0.2 | 40000 | 48000 | 1.3 | 0.485 | 0.0055 |
| 625 | 5 | 16 | 5 | 0.3 | 36000 | 43000 | 1.88 | 0.68 | 0.0067 |
| 626 | 6 | 19 | 6 | 0.3 | 32000 | 40000 | 2.34 | 0.885 | 0.0085 |
| 627 | 7 | 22 | 7 | 0.3 | 32000 | 37000 | 3.35 | 1.4 | 0.013 |
| 628 | 8 | 24 | 8 | 0.3 | 31000 | 36000 | 4.0 | 1.59 | 0.017 |
| 629 | 9 | 26 | 8 | 0.3 | 30000 | 35000 | 4.55 | 1.96 | 0.020 |
| 6200 | 10 | 30 | 9 | 0.6 | 25000 | 30000 | 5.10 | 2.39 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 22000 | 26000 | 6.10 | 2.75 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 19000 | 23000 | 7.75 | 3.60 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 18000 | 21000 | 9.60 | 4.60 | 0.064 |
| 6204 | 20 | 47 | 14 | 1.0 | 16000 | 18000 | 12.8 | 6.65 | 0.108 |
| 6205 | 25 | 52 | 15 | 1.0 | 13000 | 15000 | 14.0 | 7.85 | 0.127 |
| 6206 | 30 | 62 | 16 | 1.0 | 11000 | 13000 | 19.5 | 11.3 | 0.22 |
| 6207 | 35 | 72 | 17 | 1.1 | 9800 | 11000 | 25.7 | 15.3 | 0.267 |
| 6208 | 40 | 80 | 18 | 1.1 | 8700 | 10000 | 29.1 | 17.8 | 0.367 |
| 6209 | 45 | 52 | 19 | 1.1 | 7800 | 9200 | 32.5 | 20.4 | 0.416 |
| 6210 | 50 | 90 | 20 | 1.1 | 7100 | 8300 | 35.0 | 23.2 | 0.462 |
| 6211 | 55 | 100 | 21 | 1.5 | 6400 | 7600 | 42.5 | 29.2 | 0.602 |
| 6212 | 60 | 110 | 22 | 1.5 | 6000 | 7000 | 52.5 | 36.0 | 0.789 |
| 6213 | 65 | 120 | 23 | 1.5 | 5500 | 6500 | 57.5 | 40.0 | 0.99 |
| 6214 | 70 | 125 | 24 | 1.5 | 5100 | 6000 | 62.0 | 44.0 | 1.084 |
| 6215 | 75 | 130 | 25 | 1.5 | 4800 | 5600 | 66.0 | 49.5 | 1.171 |
| 6216 | 80 | 140 | 26 | 2.0 | 4500 | 5300 | 72.5 | 53.0 | 1.448 |
| 6217 | 85 | 150 | 28 | 2.0 | 4200 | 5000 | 83.5 | 64.0 | 1.803 |
| 6218 | 90 | 160 | 30 | 2.0 | 4000 | 4700 | 96.0 | 71.5 | 2.172 |
| 6219 | 95 | 170 | 32 | 2.1 | 3700 | 4400 | 109.0 | 82.0 | 2.62 |
| 6220 | 100 | 180 | 34 | 2.1 | 3500 | 4200 | 122.0 | 93.0 | 3.189 |
| 6221 | 105 | 190 | 36 | 2.1 | 3400 | 4000 | 133.0 | 105.0 | 3.782 |
| 6222 | 110 | 200 | 38 | 2.1 | 3200 | 3800 | 144.0 | 117.0 | 4.421 |
| 6224 | 120 | 215 | 40 | 2.1 | 2900 | 3400 | 155.0 | 131.0 | 5.295 |
| 6226 | 130 | 230 | 40 | 3.0 | 2700 | 3100 | 167.0 | 146.0 | 6.120 |

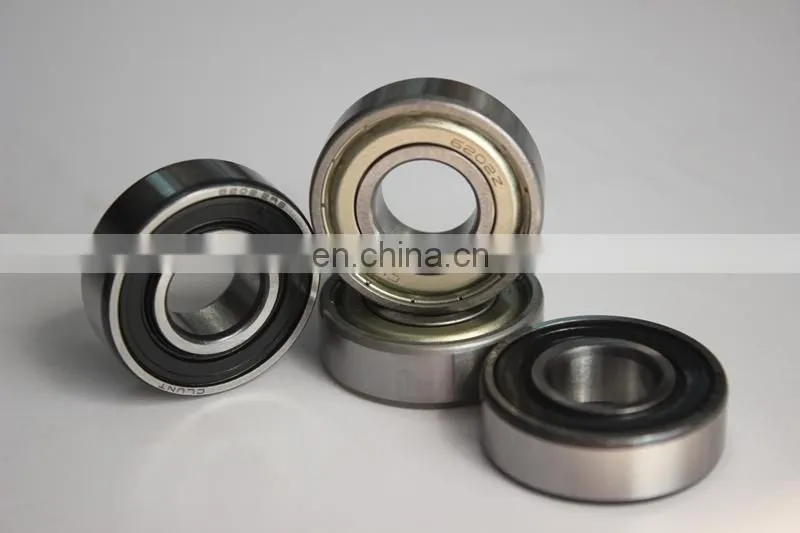

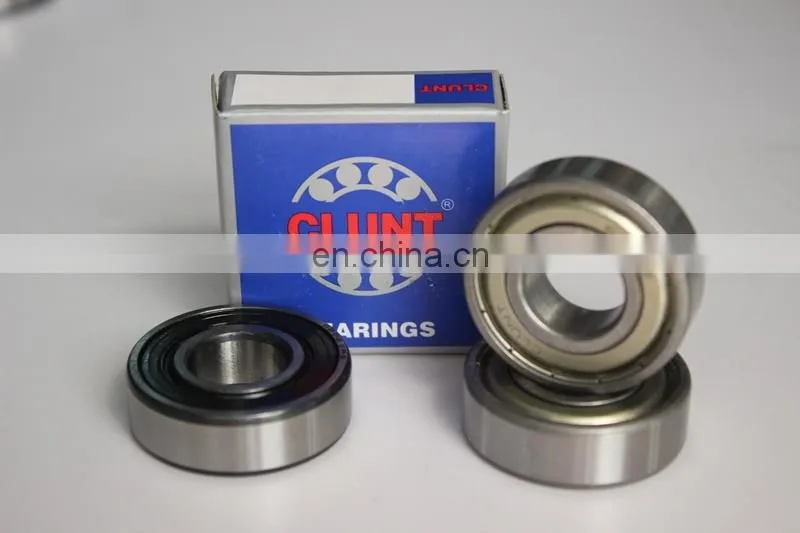

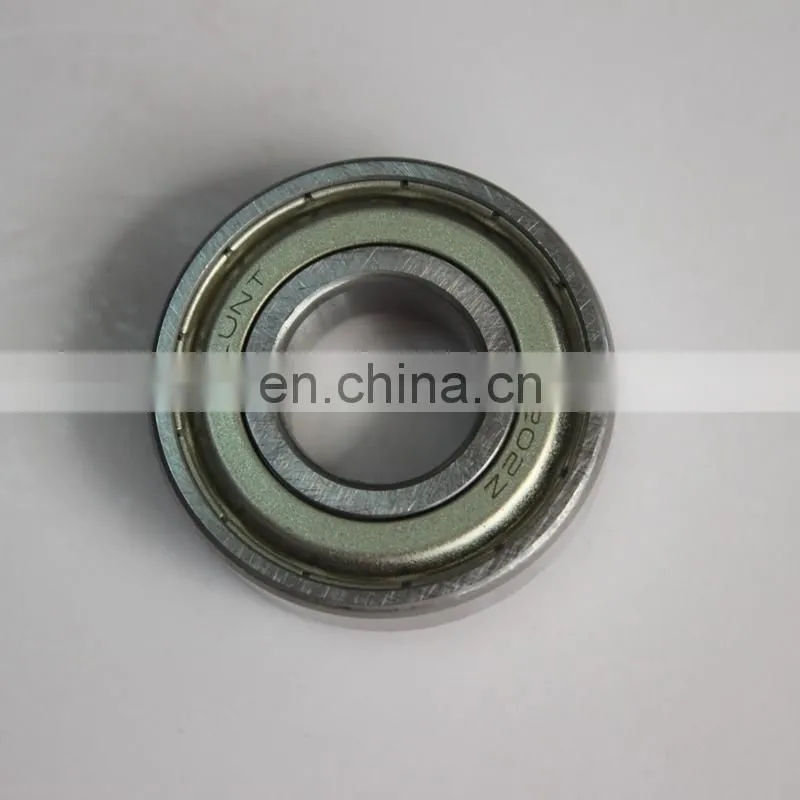

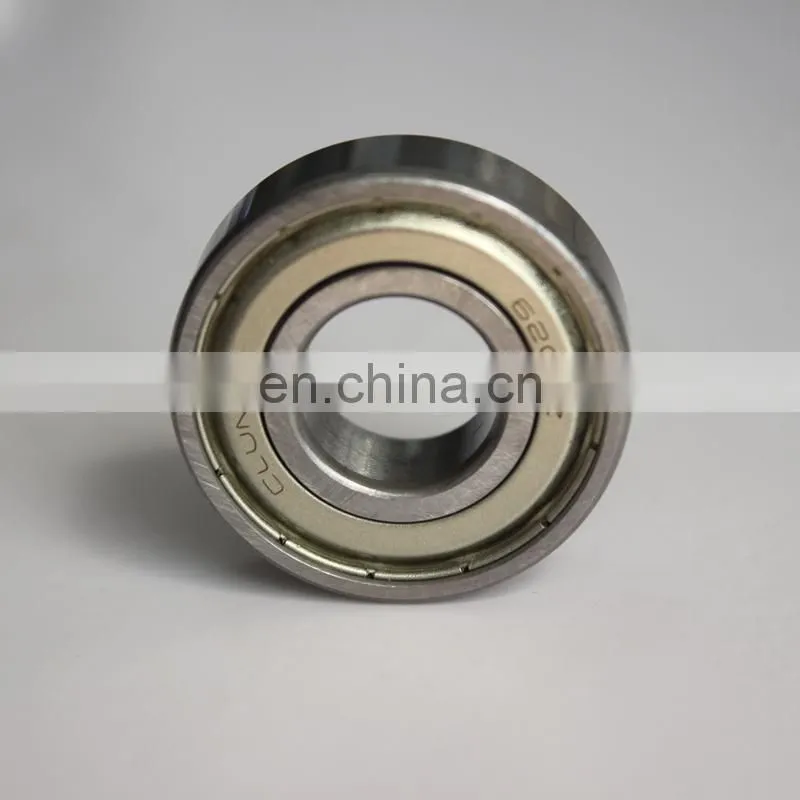

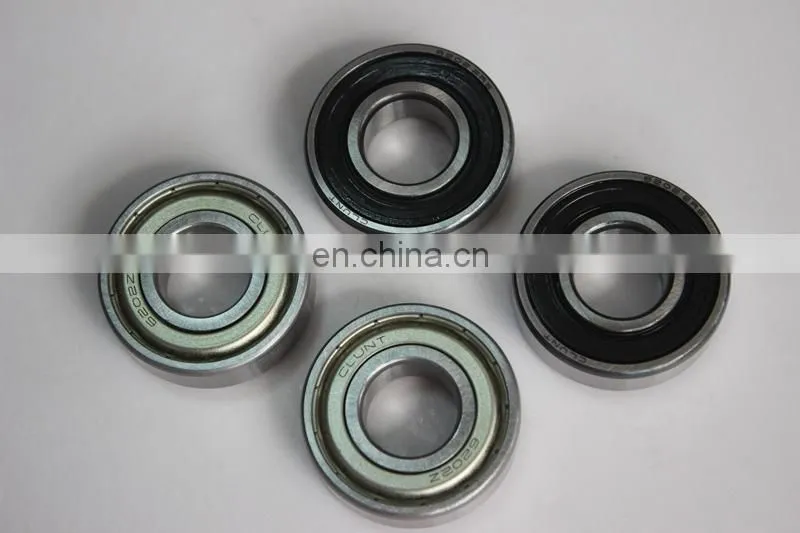

china supplier ball bearing 6202 6202-2RS 6202ZZ bearing pictures:
| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |
About us
1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept
Main bearing products
Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.
Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.
Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.
Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.
Cylindrical roller bearing: N series, NU series, NJ series, etc.
Pillow block bearing: UC series, UCP series, UCF series, UCFL series.
Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.
Needle Roller Bearing
Sliding bearing
Slewing Bearing
Rod End Joint Bearing
Ceramic Bearing
Bearing Accessories
Excellent and high quality control
1.Rich Inventory to mostly shorten the delivery time
2.Package design as clients' requirement
3.Providing the most economic carriage solution
4.OEM manufacturing supplied(Including clients' own brand)
5.Produce as drawings provided by clients
6.Design drawings as specifications and applications
7.Preferred payment term:T/T;Paypal;Western Union
Through the organized quality assurance system, our company strive to accomplish
a. Fullfill it's commitment towards quality products,
b. Efficient delivery time, generally 3-7 days,
c. Provide immediate and efficient response to customers' feedback,
d. Germany imported technology, CNC machines.
e. Provide OEM&Customized service.
