Bicycle bearing 110x280x65mm groove ball bearing wheel 6422
Structure |
Deep Groove |
Type |
Ball |
Brand Name |
CLUNT |
Bore Size |
110 mm |
Outside Diameter |
280 mm |
Model Number |
6422 |
Precision Rating |
P0/P6/P5 |
Place of Origin |
SHANDONG, China (Mainland) |
bearing |
deep groove ball bearing |
bicycle bearing groove ball bearing wheel 6422 technical data:
| Bearing Name | 6422 |
| New Model | 6422 |
| Old Model | 422Bearing |
| product Model | 6422 |
| Category | Deep Groove Ball Bearings |
| Brand | CLUNT |
| Inner Diameter d ( mm ) | 110 |
| Outer Diameter D ( mm ) | 280 |
| Thickness B ( mm ) | 65 |
bicycle bearing groove ball bearing wheel 6422 :
Deep groove ball bearings are widely applied in precision instrument, high-speed, low-noise and low-oscillation circumstances.
Automobile: rear wheel, gearboxes, and electrical apparatus unit.
Electricity: general electric motor, electric appliance
Others: meter, internal combustion engine, construction, railway vehicles, handling machinery, agricultural machinery, and various bearings in mechanical industry, etc
Features and Specifications of Deep Groove Ball Bearing | |
Brand name |
CLUNT |
Main products |
6000 series |
6200 series | |
6300 series | |
6400 series | |
16000 series | |
61800 series | |
61900 series | |
Material |
Chrome steel, carbon steel |
Tolerance codes |
ABEC-1 3 5 |
Vibration level codes |
V1, V2,V3 |
Radial Play (Clearance): |
C2, C0, C3, C4 |
Packing |
Standard package or customized |
Quality Standard |
ISO9001: 2000 Genuine/Original Brand |
Service |
OEM |
Main market |
Europe, America, Africa, Middle East, Asia. |
Delivery details |
7 days after the order confirmation, or as requested. |
Payment terms |
|
bicycle bearing groove ball bearing wheel 6422 catalog:
| modle | d | D | W | (KN) | ||||||||||
| Dynamic Cr |
Static Cor |
No. | Size mm |
Grease r/min |
Oil r/min |
KG(PIECE) | ||||||||
| 6403 | 17 | 0.6693 | 62 | 2.4409 | 17 | 0.6693 | 1.1 | 22.7 | 10.8 | 6 | 12.7 | 14000 | 16000 | 0.27 |
| 6404 | 20 | 0.7874 | 72 | 2.8346 | 19 | 0.7480 | 1.1 | 28.5 | 13.9 | 6 | 15.081 | 12000 | 14000 | 0.4 |
| 6405 | 25 | 0.9843 | 80 | 3.1496 | 21 | 0.8268 | 1.5 | 34.5 | 17.5 | 6 | 17.000 | 10000 | 12000 | 0.53 |
| 6406 | 30 | 1.1811 | 90 | 3.5433 | 23 | 0.9055 | 1.5 | 43.5 | 23.9 | 6 | 19.05 | 8800 | 10000 | 0.735 |
| 6407 | 35 | 1.3779 | 100 | 3.9370 | 25 | 0.9843 | 1.5 | 55.0 | 31.0 | 6 | 21.000 | 7800 | 9100 | 0.952 |
| 6408 | 40 | 1.7716 | 110 | 4.3307 | 27 | 1.0630 | 2.0 | 63.5 | 36.5 | 7 | 21.000 | 7000 | 8200 | 1.23 |
| 6409 | 45 | 1.7716 | 120 | 4.7244 | 29 | 1.1417 | 2.0 | 77.0 | 45.0 | 7 | 23.000 | 6300 | 7400 | 1.53 |
| 6410 | 50 | 1.9650 | 130 | 5.1181 | 31 | 1.2205 | 2.1 | 83.0 | 49.5 | 7 | 25.4 | 5700 | 6700 | 1.88 |
| 6411 | 55 | 2.1653 | 140 | 5.7087 | 33 | 1.2992 | 2.1 | 89.0 | 54.0 | 7 | 26.988 | 5200 | 6100 | 2.29 |
| 6412 | 60 | 2.3620 | 150 | 5.9055 | 35 | 1.3780 | 2.1 | 102 | 64.5 | 7 | 28.575 | 4800 | 5700 | 2.77 |
| 6413 | 65 | 2.5590 | 160 | 6.2992 | 37 | 1.4567 | 2.1 | 111 | 72.5 | 7 | 30.162 | 4400 | 5200 | 3.30 |
| 6414 | 70 | 2.7559 | 180 | 7.0886 | 42 | 1.6535 | 3.0 | 128 | 89.5 | 7 | 34.000 | 4100 | 4800 | 4.83 |
| 6415 | 75 | 2.9528 | 190 | 7.4803 | 45 | 1.7717 | 3.0 | 138 | 99.0 | 7 | 36.512 | 3800 | 4500 | 5.72 |
| 6416 | 80 | 3.1496 | 200 | 7.8740 | 48 | 1.8898 | 3.0 | 164 | 125 | 7 | 38.1 | 3600 | 4200 | 6.76 |
| 6417 | 85 | 3.3465 | 210 | 8.2677 | 52 | 2.0472 | 4.0 | 165 | 128 | 7 | 40.000 | 3400 | 4000 | 7.95 |
| 6418 | 90 | 3.5466 | 225 | 8.8583 | 54 | 2.1260 | 4.0 | 184 | 149 | 7 | 42.862 | 3200 | 3800 | 11.4 |
| 6419 | 95 | 3.7402 | 240 | 94488 | 55 | 2.1654 | 4.0 | 186 | 153 | 7 | 45.000 | 3000 | 3500 | 13.4 |
| 6420 | 100 | 3.9370 | 250 | 9.8425 | 58 | 2.2835 | 4.0 | 206 | 175 | 7 | 47.625 | 2900 | 3400 | 15.0 |

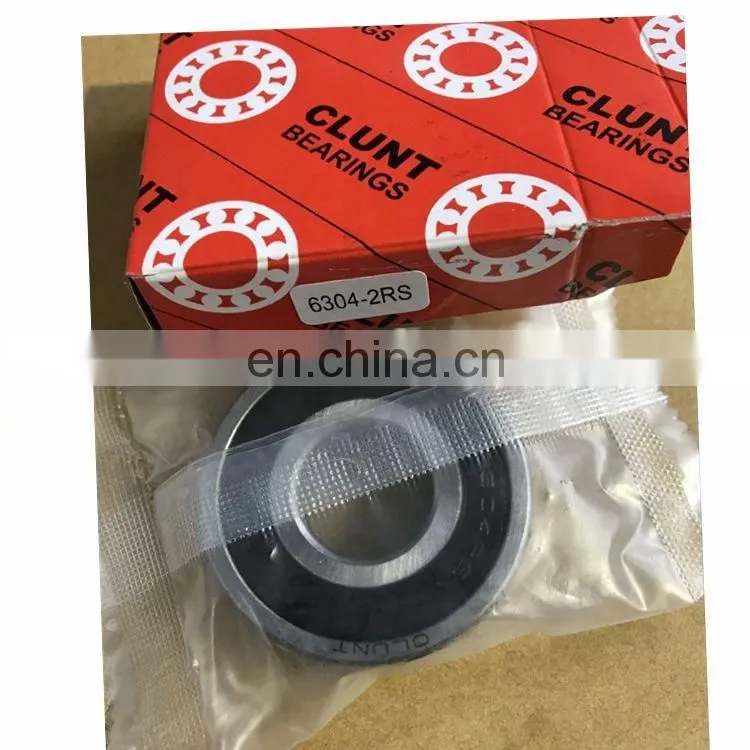

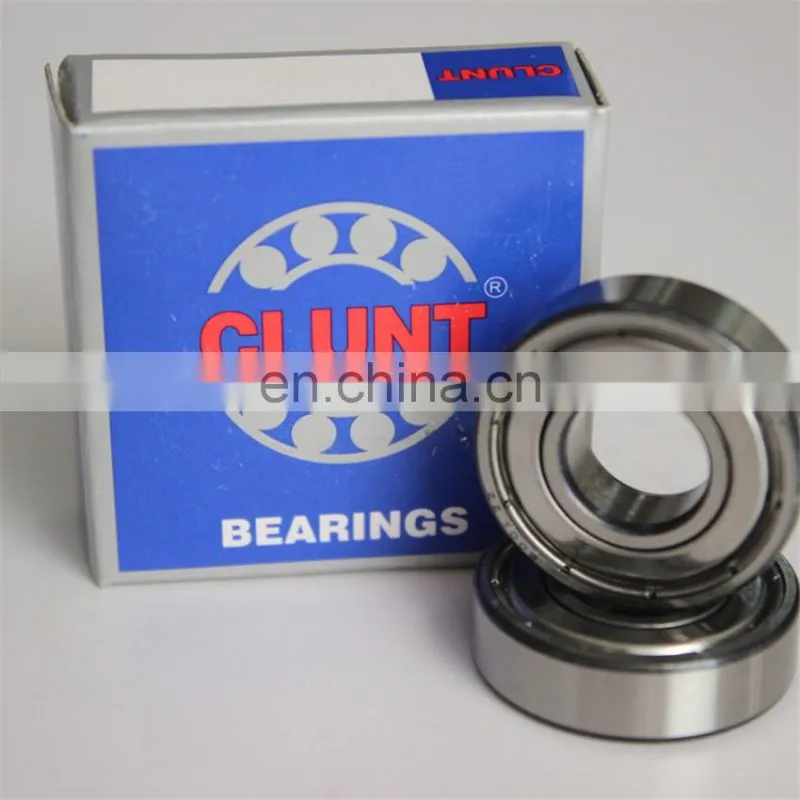

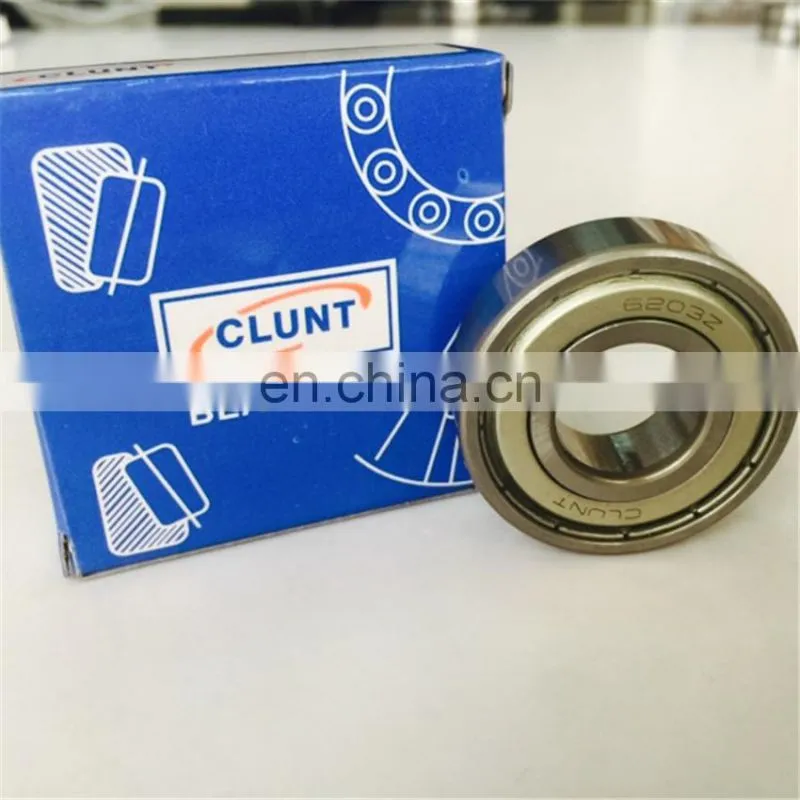

bicycle bearing groove ball bearing wheel 6422 pictures:
