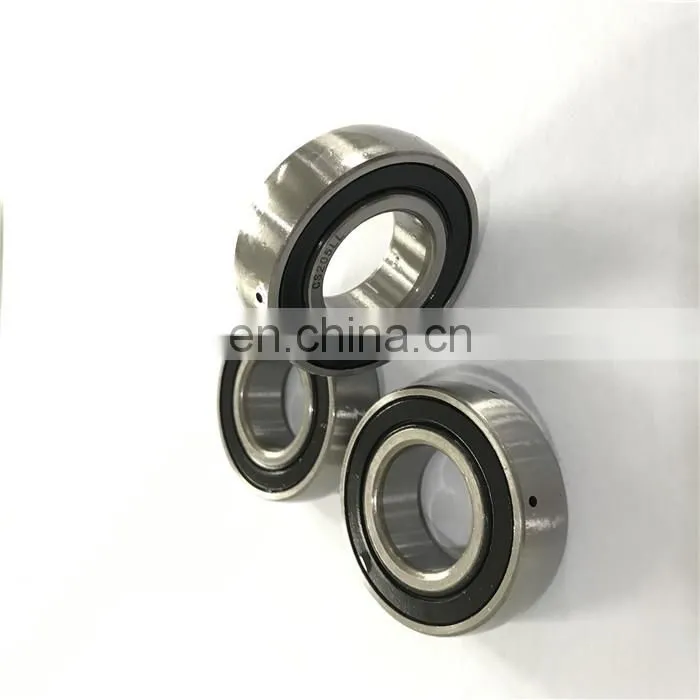

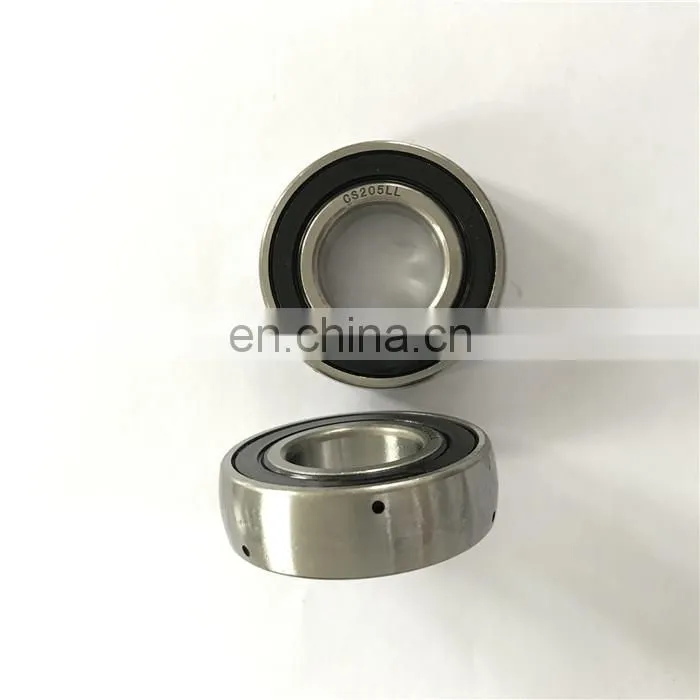

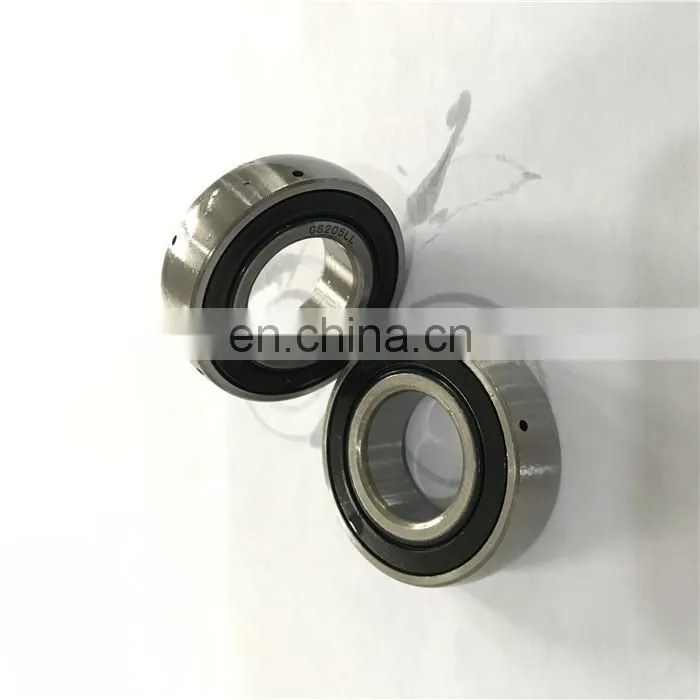

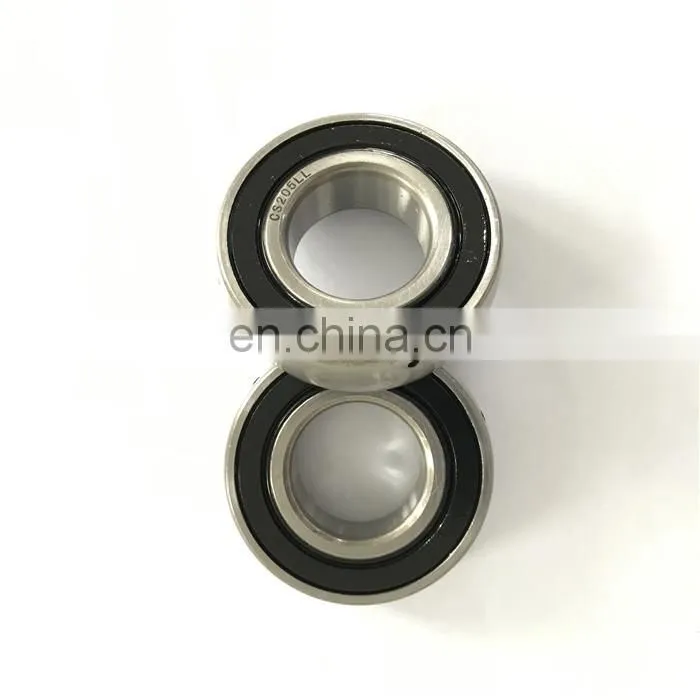

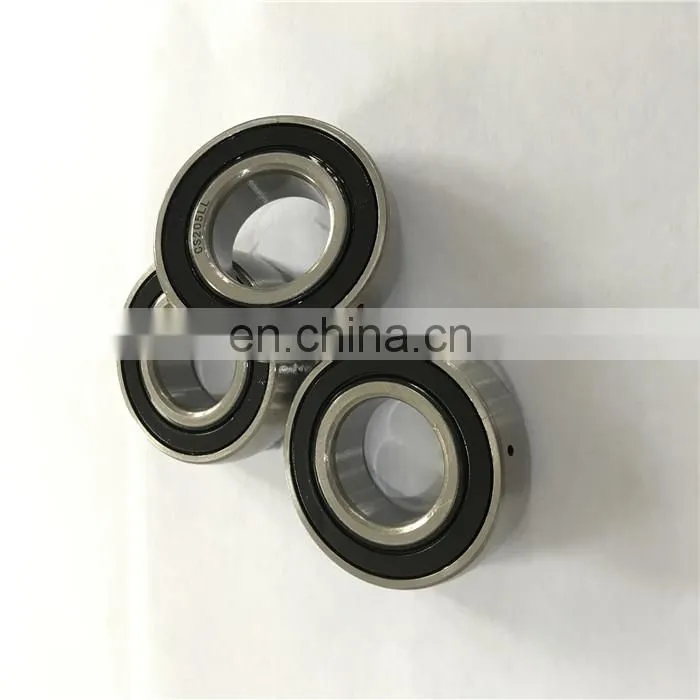

Spherical Surface Ball Bearing CS205 LL Sphered Outer Bearing CS205

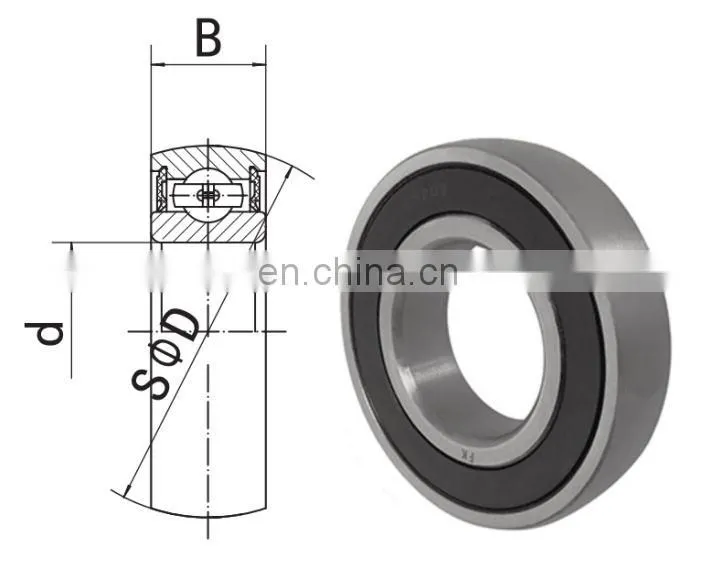

Drawings & specification :
Spherical outer bearing inserts with a standard inner ring have normal tolerances for the bearing bore diameter and are located on the shaft using an appropriate interference fit
They do not have any lubrication holes in the outer ring. The only difference between these bearings and deep groove ball bearings in the 62 and 63 series is the sphered outside surface of the outer ring. These spherical outer bearings are suitable for applications where the direction of the load alternates and where smooth running is a key operational parameter. These bearings can accommodate heavier axial loads than housed inserts of any other design. They can also operate at the same speeds as the corresponding sealed deep groove ball bearings.
Dimensions (mm)
d: 25
D: 52
B: 15
Dynamic Load Rating: 1400 N
Static Load Rating: 7850 N
Weight: 0.122kg
Other bearing size :
model code |
ID | OD | H | WEIGHT |
mm |
mm | mm | kg | |
| CS201 | 12 | 32 | 10 | 0.036 |
| CS202 | 15 | 35 | 11 | 0.065 |
| CS203 | 17 | 40 | 12 | 0.085 |
| CS204 | 20 | 47 | 14 | 0.102 |
| CS205 | 25 | 52 | 15 | 0.125 |
| CS206 | 30 | 62 | 16 | 0.202 |
| CS207 | 35 | 72 | 17 | 0.285 |
| CS208 | 40 | 80 | 18 | 0.37 |
| CS209 | 45 | 85 | 19 | 0.404 |
| CS210 | 50 | 90 | 20 | 0.598 |
| CS211 | 55 | 100 | 21 | 0.7 |
| CS212 | 60 | 110 | 22 | 0.8 |
