HPL-1319-Q(50-150W) 1319nm 100W 150W High Peak Power IR Q-switched Laser
APPLICATION:
All solid state high power CW laser at 1319nm has the features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical instrument, optical sensor, measurement, spectrum analysis, etc.
SPECIFICATIONS:
Wavelength (nm) |
1319±1 |
Operating mode |
CW |
Output Power (W) |
50~150 |
Ave power stability (rms,over 4 hours) |
<3%, <5% |
Warm-up time (minutes) |
<10 |
Beam diameter at the aperture (mm) |
~15.0 |
Beam height from base plate (mm) |
55.0 |

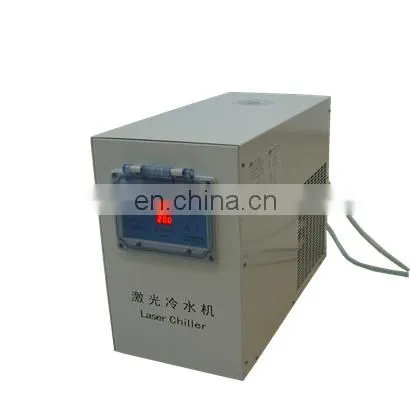

Cooled method |
Water Cooled |
Operating temperature (℃) |
15~35 |

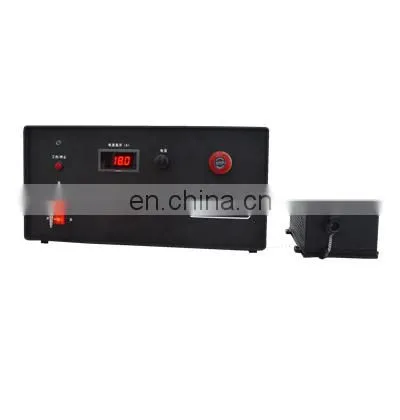

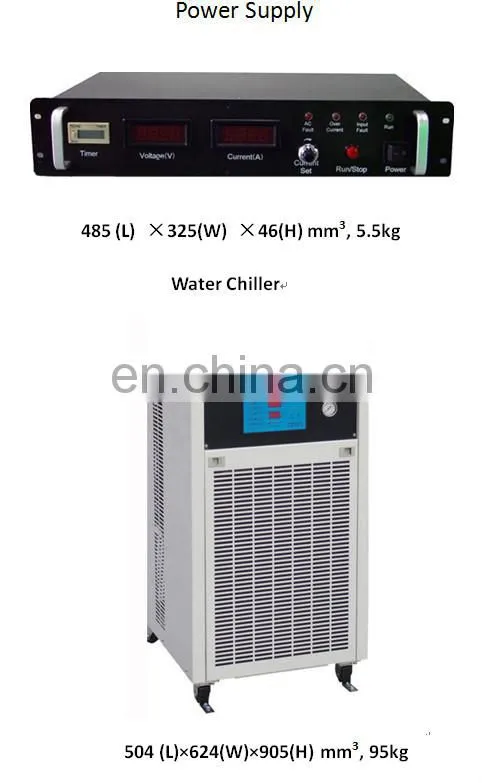

Power supply (220/110VAC) |
PSU-HPL-CW(2U) |
Expected lifetime (hours) |
10000 |
Warranty period |
1 year |

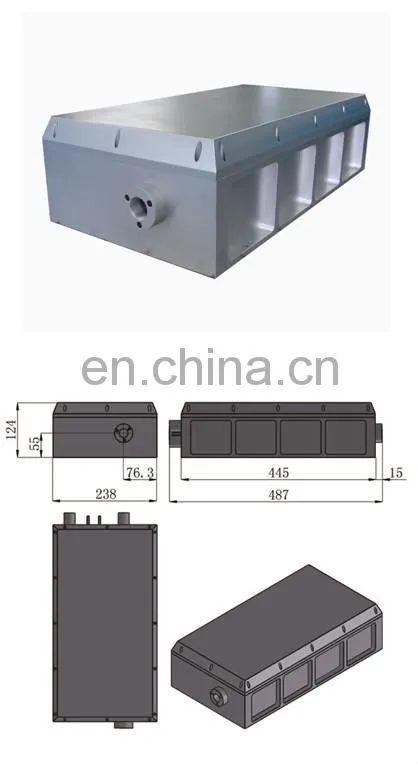

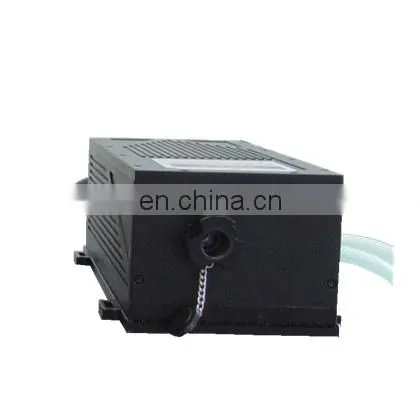

Laser Head
