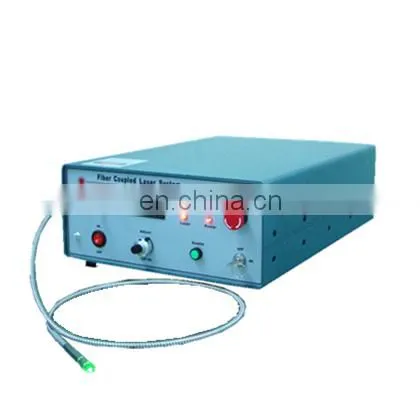

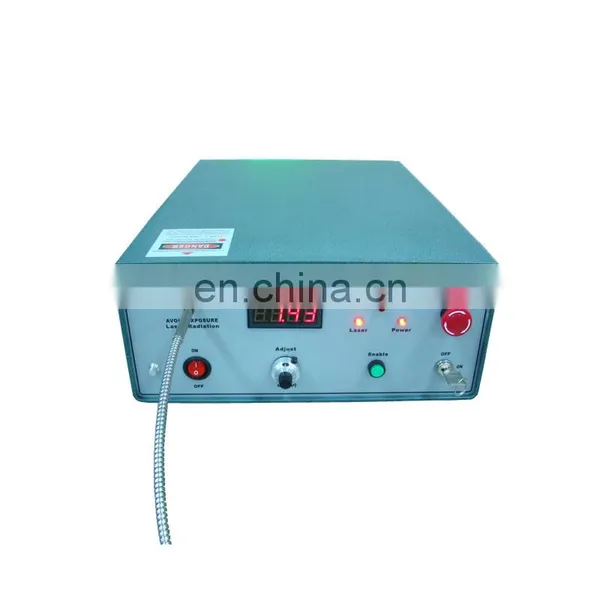

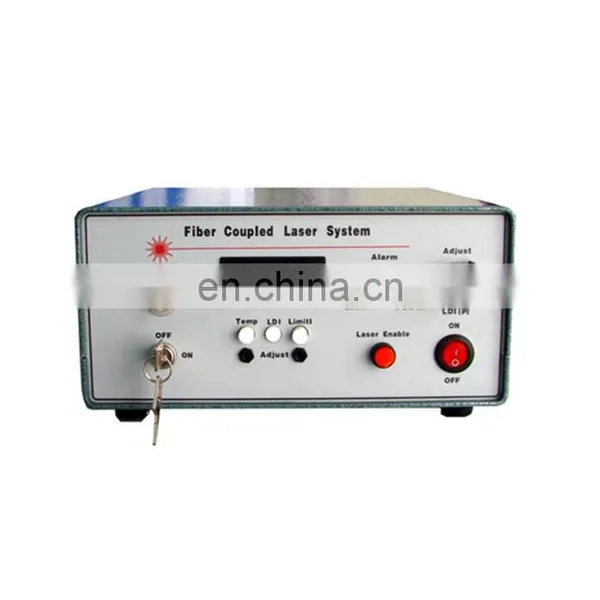

High Power 808nm/810nm 50W Infrared Fiber coupled laser system
The FC-W series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
Specifications
| Parameter | FC-W-808 | FC-W-810 |
Available Wavelengths (nm) |
808±3 |
810±10 |
| Available Power (W) | 10, 20, 30, 40, 50 | 10, 25, 35, 50 |
| Red Pilot Light | Available on request | |
Fiber Core Diameter (µm) |
400 |
|
| Fiber NA | 0.22 | |
Fiber Connector |
SMA905 |
|
Fiber Length (m) |
2 |
|
Output Power |
0-100%, adjustable by knob |
|
Operating Mode |
CW, TTL or Analog on request |
|
LED Display |
Diode current |
|
LD Temperature Control Range ( °C) |
15~30, adjustable by knob |
|
Expected Lifetime (hours) |
10000 |
|
Input Power |
90-264VAC, 50 to 60 Hz |
|
Operating Temperature ( °C) |
10~40 |
|
Cooling Way |
by air |
|
Warranty time |
1 year |
|

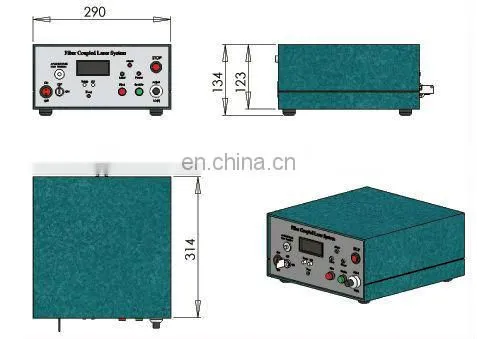

FC-W Package Dimensions (mm)

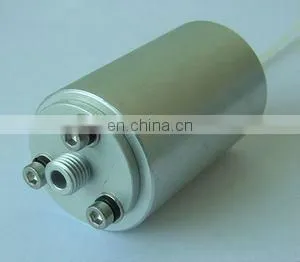

Fiber Collimator
These collimators are designed to connect onto the end of an FC/PC or SMA905 connector and contain an AR-coated aspheric lens. The distance between the aspheric lens and the tip of the FC-terminated fiber can be adjusted to compensate for focal length changes or to recollimate the beam at the wavelength and distance of interest.
♦ Fixed FC OR SMA Fiber Collimators
♦ Adjustable Fiber Collimators
