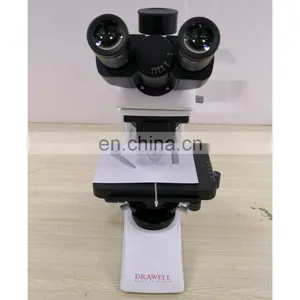

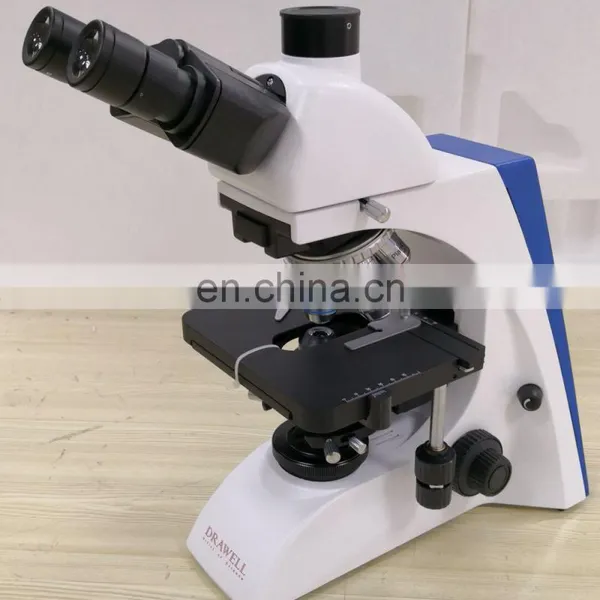

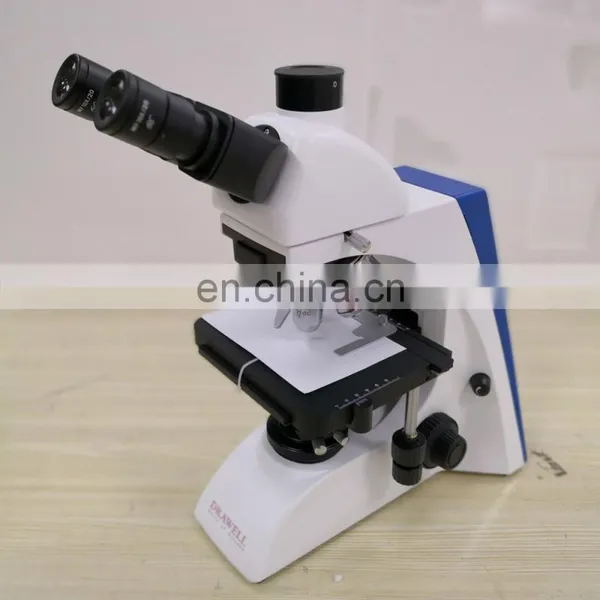

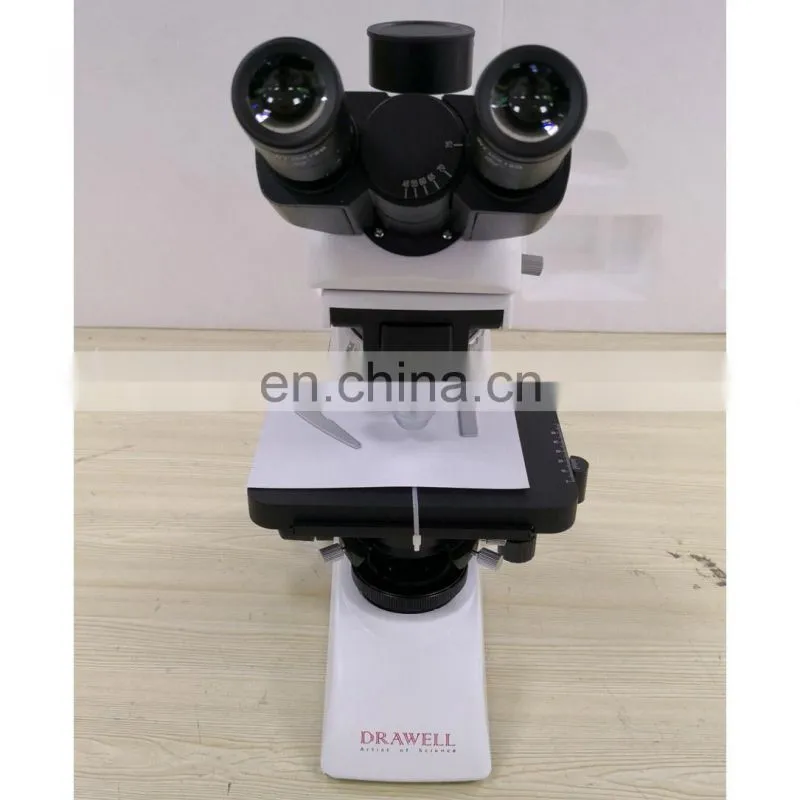

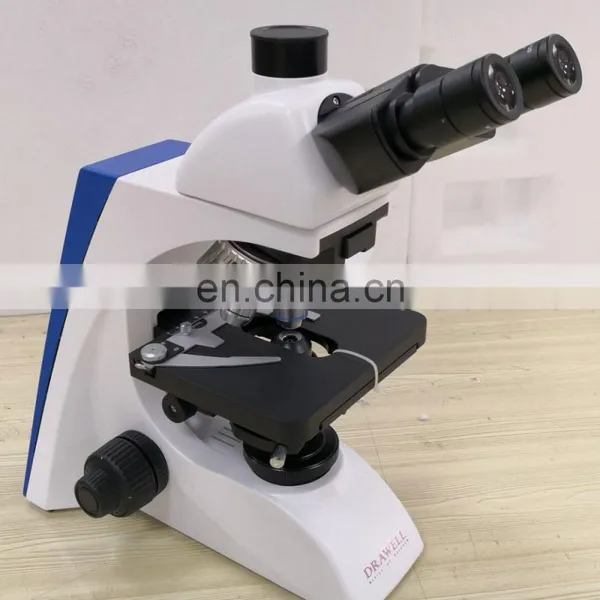

Help CenterBK-5000 Series Electronic Binocular Biological Microscope
Related Products
-
BK-FL2/FL4 Series Advanced Biological Fluorescence Microscope PriceUS$ 1,300 - 2,800MOQ: 1 Piece -
BK-FL2/FL4 Series Biological Microscope Outfits Fluorescence Fluorescent Microscope With LEDUS$ 1,000 - 2,800MOQ: 1 Piece
-
BK-FL2 FL4 Series Fluorescence Biological Microscope PriceUS$ 799 - 2,799MOQ: 1 Piece
-
BK-FL2/FL4 Series Cheap Reflected-Light Fluorescence Microscope MagnificationUS$ 800 - 2,800MOQ: 1 Piece
-
BK-FL2/FL4 Series Fluorescence Stereo Microscope PriceUS$ 900 - 2,800MOQ: 1 Piece
BK5000 Series Biological Microscope Outfits
*Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.
*Dark field condenser(dry)available to 4X-40X Objective.
*Dark field condenser (wet) available to 100X Objective.
*10X/20X/40X/100X Independent Phase Contrast Unit.
*Infinity Plan Objectives
BK5000 Series Biological Microscope Outfits
Items |
Specification |
Outfits |
|
Eyepiece |
WF10×/20mm (23.2) |
YY |
|
Infinity Plan Objectives |
PLAN 4×/0.10 |
W.D.=12.10mm |
Y |
PLAN 10×/0.25 |
W.D.=4.64mm |
Y |
|
PLAN 20×/0.40(S) |
W.D.=2.41mm |
Y |
|
PLAN 40×/0.66(S) |
W.D.=0.65mm |
Y |
|
PLAN 100×/1.25(S, Oil) |
W.D.=0.12mm |
Y |
|
PLAN 2.5×/0.07 |
W.D.=8.47mm |
O |
|
PLAN 60×/0.80(S) |
W.D.=0.33mm |
O |
|
PLAN 100×/1.15(S, W) |
W.D.=0.19mm |
O |
|
Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm -75mm |
Y |
|
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm-75mm Light Distribution: 100: 0 / 80:20 |
O |
|
Nosepiece |
Quintuple |
Y |
|

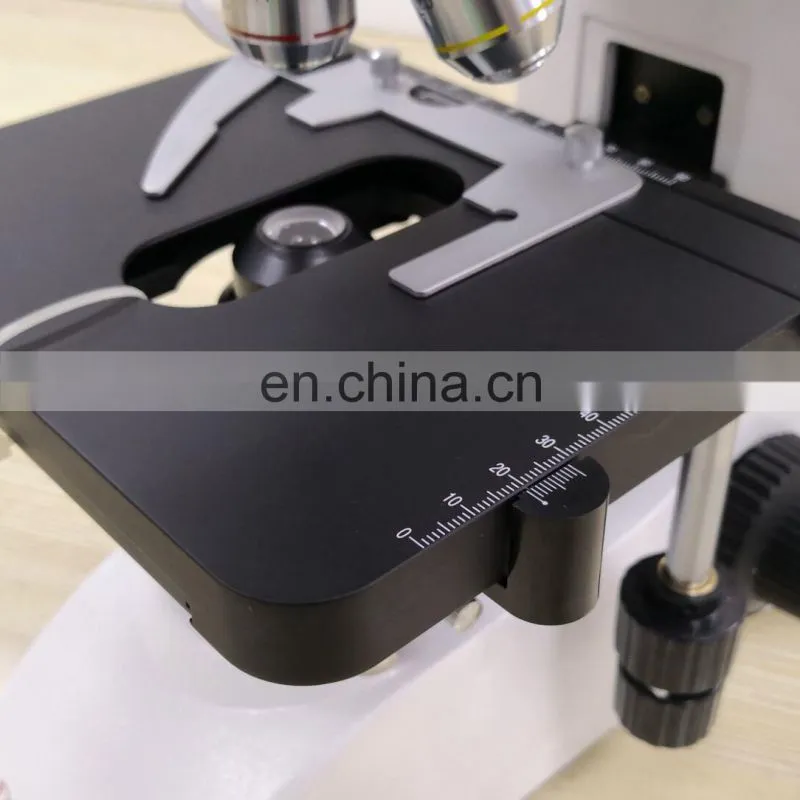

Mechanical Stage |
Stage Size: 175X145mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder |
Y |
|
Swing Out Condenser |
Y |
||
|
Koehler Illumination Wide voltage input: 100V~240V Field diaphragm , center adjustable |
6V/20W Halogen Lamp |
Y |
|
6V/30W Halogen Lamp |
|
||
3W-LED Illumination |
|
||
Filter |
Blue |
Y |
|
Green |
O |
||
Amber |
O |
||
Grey |
O |
||
C-mount |
1×C-mount ( better for digital photograph) |
O |
|
0.57× C-Mount (focus adjustable, better for digital camera) |
O |
||
Adaptor for Digital Photograph |
Used for CANON/NIKON/OLYMPUS etc. |
O |
|
Fluorescence Attachment |
Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. |
O |
|
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp. |
O |
||
Phase Contrast Unit |
Quintuple hole turret 10× /20× /40× /100× phase contrast objective |
O |
|
|
Independent slot 10× /20× /40× /100× phase contrast objective |
O |
||
Dark Field Unit |
Dark field condenser (dry),apply to 4×- 40× objective |
O |
|
Dark field condenser (wet),apply to 100× objective |
O |
||
Polarizing Attachment |
Analyzer / Polarizer |
O |
|
Note: "Y"In Table Is Standard outfits, "O" Is Optional Accessories.
Packing Size: 565mm×310mm×410mm Gross Weight: 12 kgs Net Weight: 10kgs
