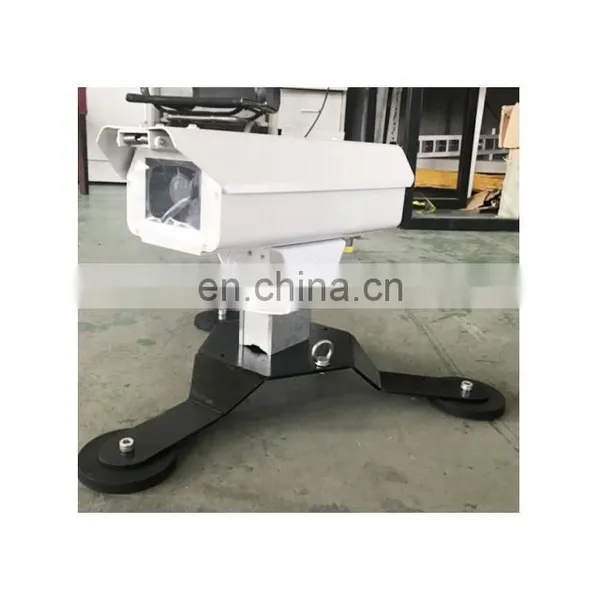

TBTLC-1 Single Camera Road asset management system
1. General Introduction:
This system is used for collecting the road assets which get te pictures by single camera(standard config, can be extended to more cameras as per customer request), the pictures saved in .jpg format, very convenient for further checking and review.

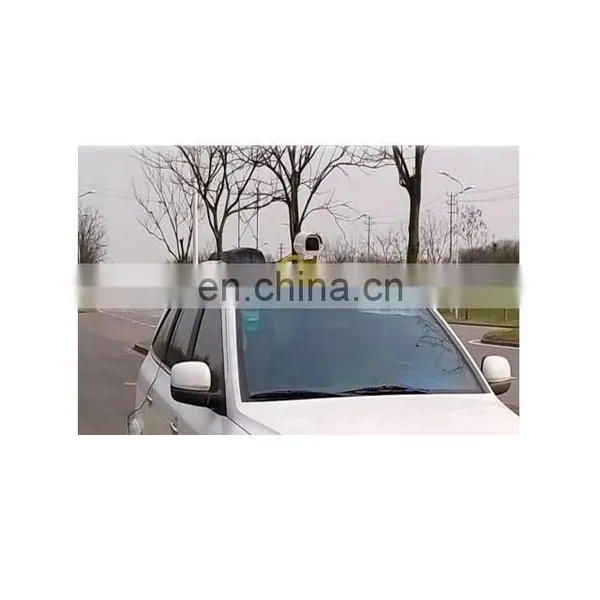

The camera is installed at the top of vehicle at front part, set the interval and take pictures during high speed driving.
The connecting with laptop is connected via ethernet.
2. Technical Specification:
2.1 Camera parameters:
2.1.1 resolution: 1628*1236
2.1.2 Sensor type: CCD
2.1.3 Optical size: 1/1.8" Sony ICX274 AL/AQ CCD
2.1.4 Fps: 20fps
2.1.5 Shutter speed: 20μs~1s
2.1.6 Working temp. : 0~60C
2.1.7 Working humidity: 10%~80%
2.2 General parameters:
2.2.1 testing interval: 2meter OR more than 2meter
2.2.2 Testing speed: 0~120km/hr
2.2.3 DMI measuring accuracy: 0.1%
2.2.4 With GPS interface which can save GPS data;
2.2.5 Can manually mark the pavement surface condition;
2.3 Laptop parameters:
2.3.1 CPU:i5-4210M processor
2.3.2 Displayer: 14Inch HD LE
2.3.3 RAM:4GB(4GB/0GB)
2.3.4 Hard disk:128GB SATA
2.3.5 Video card: NVIDIA GeForce GT730M 1GB
