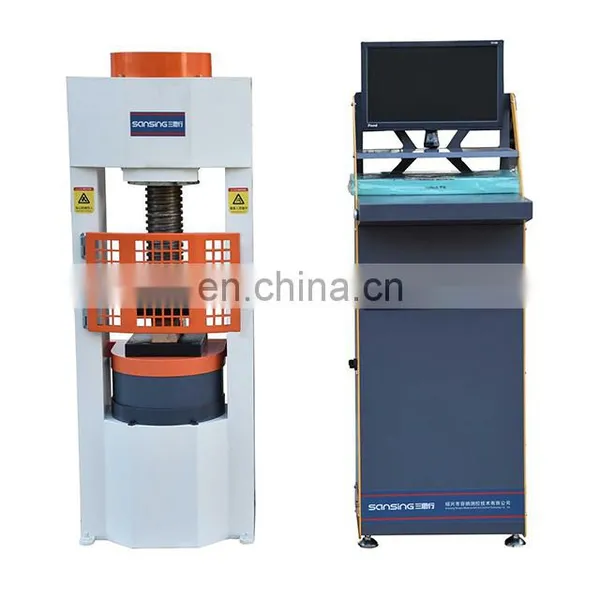

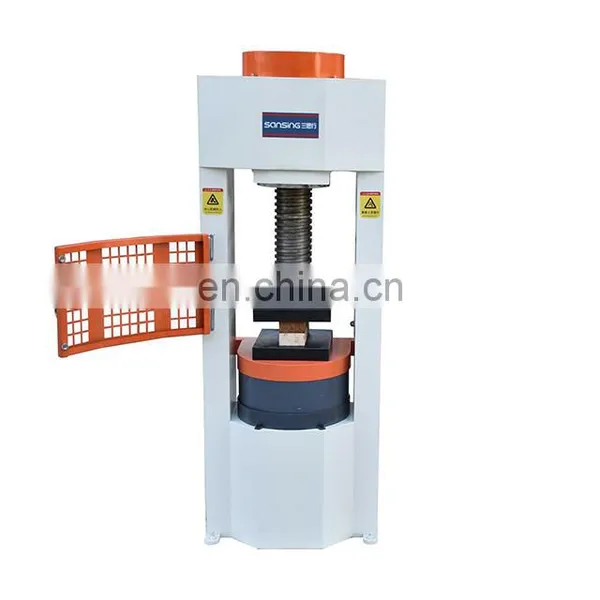

Help CenterAutomatic Computer Control LED 2000KN Concrete Compression Test Machine
Related Products
-
Door Type 10 KN WDW-10 Electronic Universal Tensile Testing MachineUS$ 2,200 - 4,000MOQ: 1 Unit -
WDW-20 Type Hydraulic Press Machine Universal Testing Apparatus Metal Bending DeviceUS$ 2,200 - 4,000MOQ: 1 Unit
-
Floor Style 50 KN WDW-50 Electronic Universal Tensile Testing MachineUS$ 5,000 - 6,300MOQ: 1 Unit
-
WAW-1000B Computer-controlled Digital Display Electronic Hydraulic Universal Testing MachineUS$ 12,000 - 13,000MOQ: 1 Unit
-
WAW 600KN 1000kn Utm Universal Testing Machine Electro-hydraulic Two-post Lift MachineryUS$ 10,500 - 12,000MOQ: 1 Unit
Application:
The 2000KN copression testing machine is suitable for the test of compressive strength of silicate water machine, ordinary Portland cement, slag Portland cement, fly ash Portland cement, composite Portland cement and limestone Portland cement.
Automatic range of compression testing machines have been designed for reliable and consistent testing of a wide range of specimens. These compression testers are the results of continuous research to upgrade the testing machines with the latest technologies to conform to the latest standards EN 12390-3, EN 12390- 4, BS 1881 and ASTM C39 in terms of its technical properties taking into account client requirements. These also meet the requirements of CE norms for the health and safety of the operator.
Tests can be performed by on a computer with using free Software. The advantages of performing tests on computer with using our Software, such as reporting, graphical output, etc..
The Automatic range of compression testing machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus, the only required operations are:
* Setting test parameters, including pace rate (only required when the specimen type is changed)
* Pressing the START button on the control unit
* The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and
starts loading at the pace rate that selected by user and stops once the specimen fails
* Automatically saves the test parameters and test results
All models are supplied in Class 1 starting from 10% of the full range as standard EN 12390-3, 12390-4, BS 1881 and ASTM C39. Our range of Semi-Automatic and Automatic Machines can be upgraded with option TC-0210 special calibration Class 1 starting from 1% of the full range. This exceptional performance enables the machines to be used for a considerable number of applications including:
* Early age ( 2 or 3 days ) compression strength tests
* Flexural and splitting tests by using proper accessories
* Mortar (Cement) compression tests by using proper accessories
* Core testing with TC-0210
The compression machines consist of a heavy duty welded frame, automatic hydraulic power pack with data acquisition and control system.
Technical reference:
Product model |
YAW-2000D |
2000KNMaximum test force |
2000KN |
Measuring range and measuring range |
0≈2000KN |
Display relative error |
±1% |
Platen size |
230*230mm |
Compression space |
350mm |
piston diameter |
￠250mm |
engine power |
2KW |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
