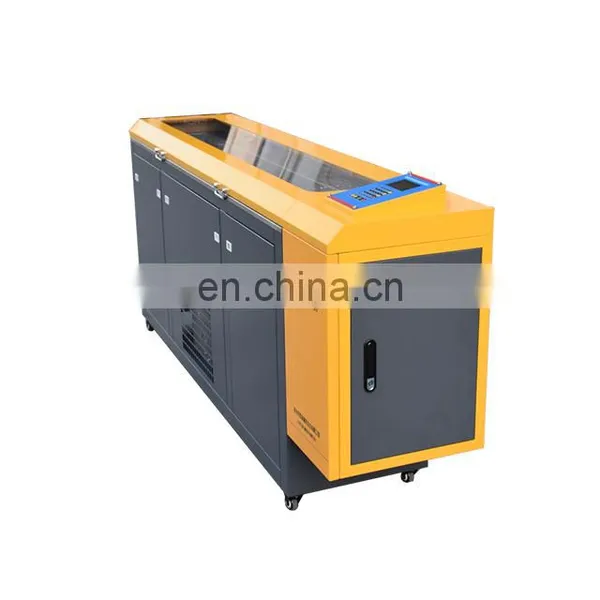

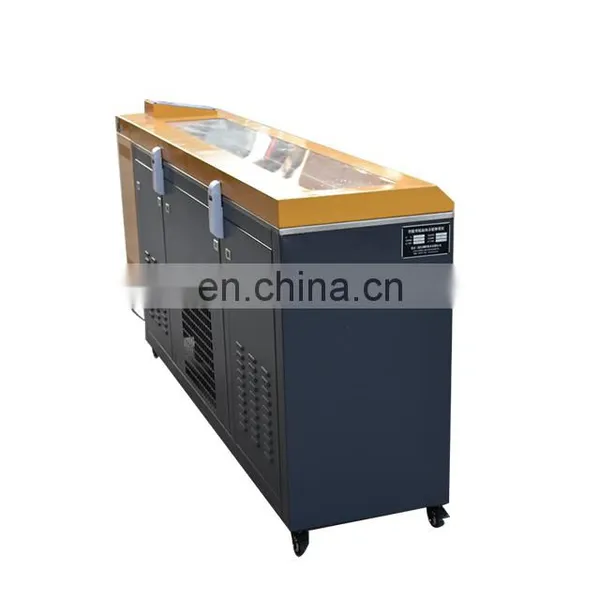

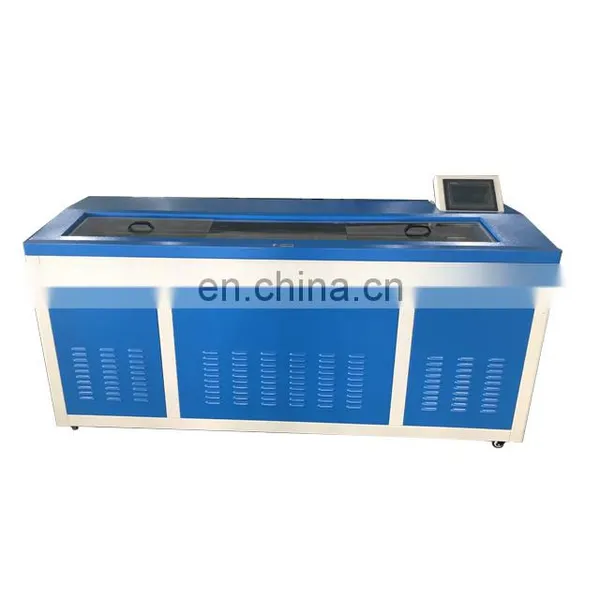

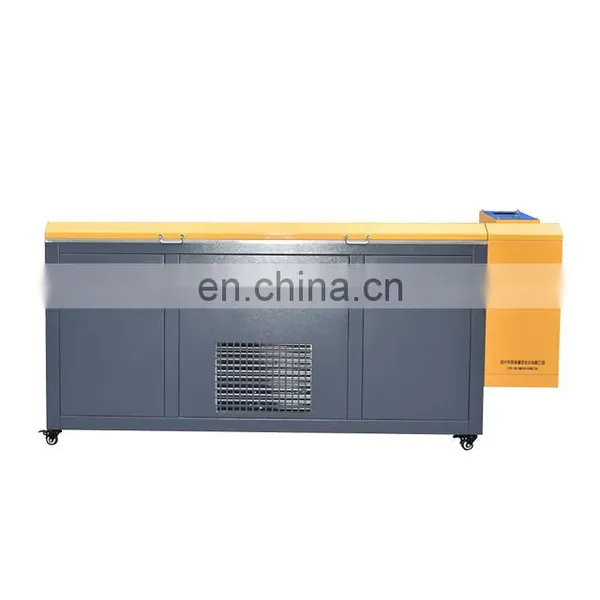

Help CenterDigital Display Asphalt Ductility Tester/Ductility Testing Machine
Related Products
-
ASTM D6307 Bitumen Asphalt Content Binder Ignition Furnace for Building Material Test SystemUS$ 2,950 - 3,000MOQ: 1 Unit -
Digital Asphalt Ductility Testing Machine Temperature Controlled for Asphalt Binder TestingUS$ 1,300 - 1,600MOQ: 1 Unit
-
20L Laboratory Asphalt Mixer Mixing Machine of Sample TestUS$ 800 - 850MOQ: 1 Unit
-
Automatic Computer LCD Screen Control Asphalt Bitumen Needle Penetration Test ApparatusUS$ 1,500 - 1,800MOQ: 1 Unit
-
RL-0604C Computer Asphalt Needle Penetration Test ApparatusUS$ 1,500 - 1,800MOQ: 1 Unit
Application:
The equipment is used to measure the ductility of the materials such as road petroleum asphalt, polymer modified asphalt, liquid petroleum asphalt distillation residue and emulsion asphalt evaporation residue.
Its design is reliable, the operation is concise, in the domestic industry at leading level.
Features:
1. The refrigeration system adopts imported components and has a circulating system with stable temperature.
2. High quality stainless steel bottom board with transparent organic glass cover.
3. Using ball screw and linear guide rail group to stretch, the tensile precision is high.
4. The stretching speed is controlled by stepper motor stepless speed adjustment, automatic high speed homing, time-saving and have left-right position limit switch protection.
5. Use color liquid crystal display, clear .
6. automatically record time of test start and test time.
Dimensions |
2040 x 520 x 800mm |
Power supply voltage |
AC 220V ± 10% 50Hz |
Temperature control range |
5-25 ℃ |
Temperature control precision |
0.1 ℃ |
Displacement accuracy |
0.01cm |
Stretch speed |
5cm/min,±0.25cm/min |
Low temperature tensile speed |
1cm/min±0.5cm/min |
Maximum extension |
150cm |
Refrigeration power |
750W |
Heating power |
2KW |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
