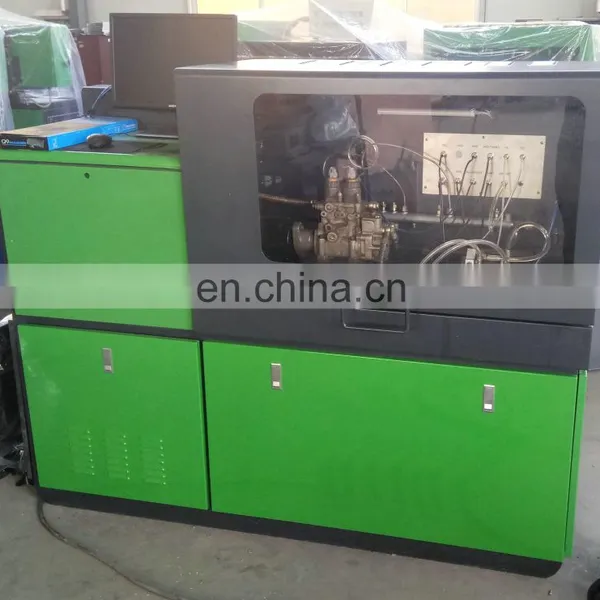

Help CenterCR-815C Common Rail Test Bench 380v 3phase
Related Products
-
CR-C Common Rail Injector Tester SimulatorUS$ 100 - 200MOQ: 1 Piece -
CAT5000 HEUI Pump and 320D Pump TesterUS$ 1,800 - 2,000MOQ: 1 Piece
-
Common Rail Tester HEUIUS$ 1,300 - 1,500MOQ: 1 Piece
-
HEUI and Common Rail Test Bench CR819US$ 8,500 - 10,000MOQ: 1 Piece
-
CRDI TESTER MACHINE COMMON RAIL INJECTOR TESTER DIESEL FUEL PUMP TEST BENCH CR825US$ 12,500 - 12,500MOQ: 1 Piece
>>>CHARACTERISTIC
1.Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 19" LCD
3. Data can be searched, printed and made into database.
4. It can provide 0~2000 bar of rail pressure.
5. Oil temperatue is controlled by computer
6. Drive signal can be controlled.
7. Protection function of short-circuit.
8. Rail pressure can be tested in real time, it contains the high-pressure protection function.
9. Pulse and frequency of the injector drive signal can be adjusted.
10.Injection time can be setted.
11.Precise measurement, easy operation, low noise.
12. fulfill the remote assistance by internet and make the maintenance easy to operate.
>>>FUNCTION
Common Rail Injector Common Rail Pump
1. Test brands:BOSCH,SIEMENS,DELPHI,DENSO. 1.Test brands:BOSCH,SIEMENS,DELPHI,DENSO.
2. Test 4 pieces of injectors at a time.
(6 is also available---optional function) 2.Test the double plunger HP0 pump of
DENSO—(optional function)
3. Test the pre-injection of the high-pressure common rail injector. 3. Test the sealing of common rail pump.
4.Test the max. oil quantity of high-pressure common rail injector 4. Test the internal pressure of common rail pump.
5. Test the cranking oil quantity of high-pressure common rail injector. 5. Test the proportional electromagnetic valve of
common rail pump.
6. Test the backflow oil quantity of high-pressure common rail injector. 6. Test the input pressure of common rail pump.
7. Test the average oil quantity of high-pressure common rail injector. 7. Test the flux of common rail pump.
8. Test the high-pressure common rail injector's injection state and oil quantity measurement. 8. measure the rail pressure in real time.
9. Data can be searched, printed and made into database. Data can be searched, printed and made database.
>>>TECHNICAL PARAMETER
Injection testing frequency :50~3000 rpm
Pulse width: 0.1~200 ms
Continuous injection times: 0~1000
Fuel temperature :40±2℃
Supply oil quantity of common rail injector: 0~200cc/min 0.5%
Rail high pressure :0~2000 bar
Test oil filtered precision :5μ
Input power :380V/50hz/3phase or
220V/60hz/3phase
Rotation speed:0~4000RPM
Oil tank capacity: 60L
Flywheel inertia’s moment: 0.8KG.M2
Center height: 125MM
Output power :7.5KW(11kw,15kw,18.5kw as request)
Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
