HAS VIDEO new type blown film extrusion machine
film blowing machine, film blown machine, film machine,plastic film blowing machine, pe film blowing machine, blow film machine
Machine Name: film blowing machine set
Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.
2.The film is widely used for packing bag,such as T-shirt bag, shopping bag, clothing bag, garbage bag and agriculture covering film etc.

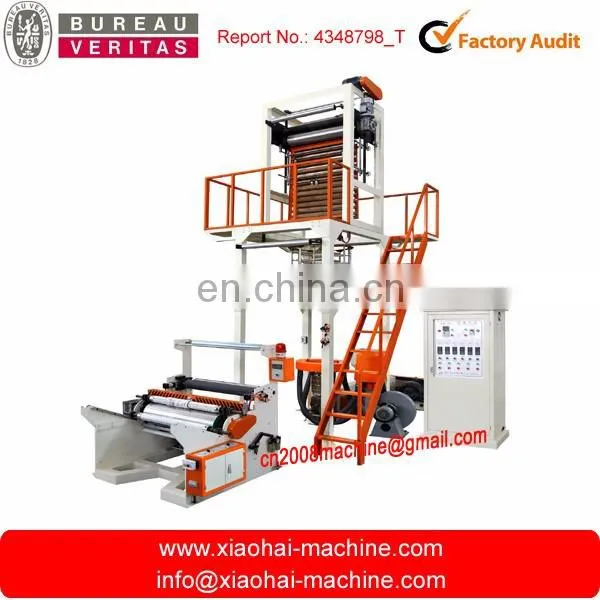

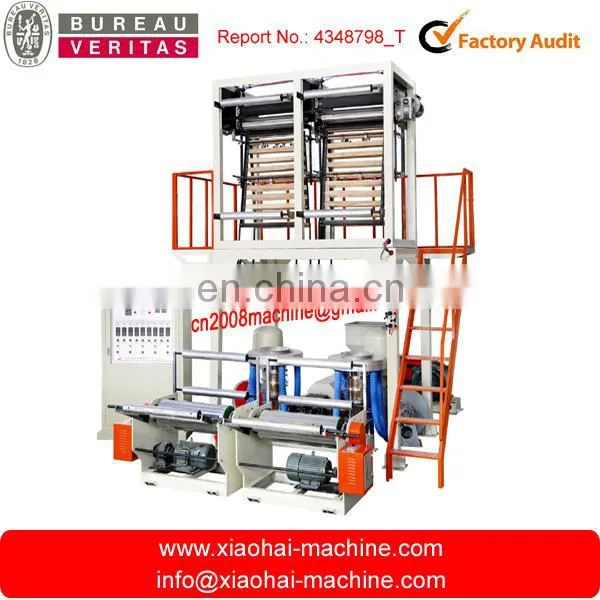

SJ-B Series is the machines with double rewinder and rotary head.
SJ-A Series is the machines with single rewinder and without rotary head
also you can indicate the device you want
Specification:
Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.
2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc
Specification:
Model No. |
SJ-A50 |
SJ-A55 |
SJ-A60 |
Screw Diameter |
50mm |
55mm |
60mm |
Screw Ratio(L/D) |
28:1 |
28:1 |
28:1 |
Max.Folding Width of Film |
600mm |
800mm |
1000mm |
Single Side Thickness of Film |
0.008-0.08mm |
0.008-0.08mm |
0.008-0.08mm |
Power of Main Motor |
11KW |
15KW |
18.5KW |
Output |
30kg/h |
40kg/h |
50kg/h |
Total Power |
18Kw |
22Kw |
26Kw |
Weight of Machine |
1500kg |
1800kg |
2100kg |
Dimension(mm) |
4800x1800x3600 |
5000x2000x4000 |
5200x2200x4400 |
Model No. |
SJ-B50 |
SJ-B55 |
SJ-B60 |
Screw Diameter |
50mm |
55mm |
60mm |
Screw Ratio(L/D) |
28:1 |
28:1 |
28:1 |
Max.Folding Width of Film |
600mm |
800mm |
1000mm |
Single side thickness of Film |
0.008-0.08mm |
0.008-0.08mm |
0.008-0.08mm |
Power of Main Motor |
11KW |
15KW |
18.5KW |
Output |
40kg/h |
50kg/h |
60kg/h |
Total Power |
22Kw |
26Kw |
30Kw |
Weight of Machine |
2000kg |
2300kg |
3000kg |
Dimension(mm) |
5700x1800x3600 |
6000x2000x4000 |
6500x2200x4500 |
see the process:
This is the gusset to make the edge fold
the rotary head:
