Characteristics:

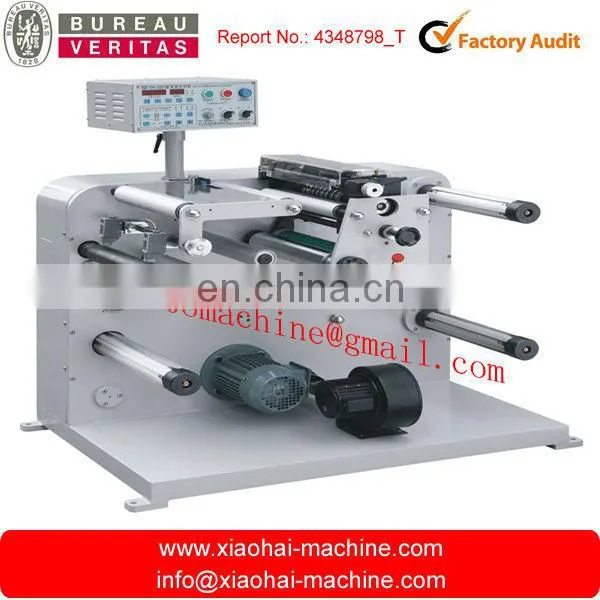

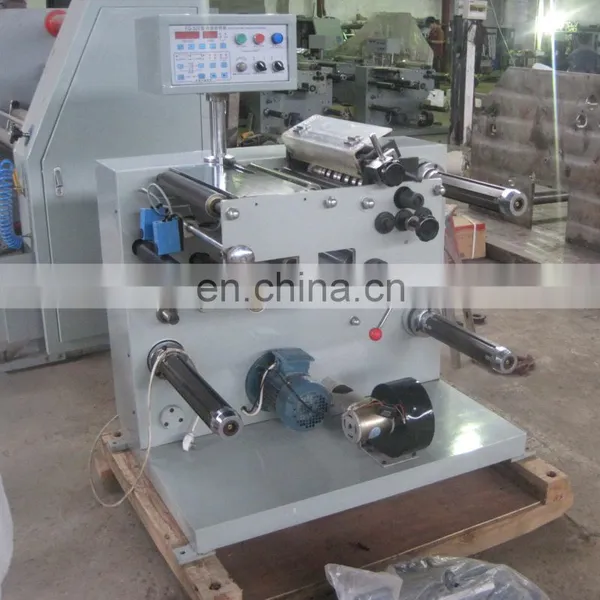

Auto slitting machine FQ-320 type is a complete set of equipment for full automatic roll trademark printing machine and roll die cutting machine. It is applicable to slit the narrow scope paper, automatic counting the length(meter), quantity of paper(piece) and setting the length, automatic stopping, giving an alarm and unreeling, magic eye automatic correcting the error, inflatable shaft receiving material, tension controlling. Recording Paper number import electric eye , So it is of tight construction and is characterized by quickness, accurate slitting ease of operation and stable firm running.
Main Technical Variables:
Max web width |
320mm |
Max putting diameter |
500mm |
Min width |
20mm |
Cutting precision |
0.5mm |
Cutting speed |
80m/min |
Overrll dimensions(L*W*H) |
1070*900*1320mm |
Machine Weight |
400KG |
Configure:
main motor 1 Lichao, shanghai
inverter 1 Schneider, France
Length sensor 1 Ruixiang, China
rectify synchronous motor 1 Yintong , Su'zhou
rectify photoelectric 2 Hengwang, China
button swich Schneider , France
Air-blowing motor Suzhou
3" Air shaft for unwind 1 Ruian
3" Air shaft for rewind 2 Ruian
Slitting blade 8 sets Shanghai
