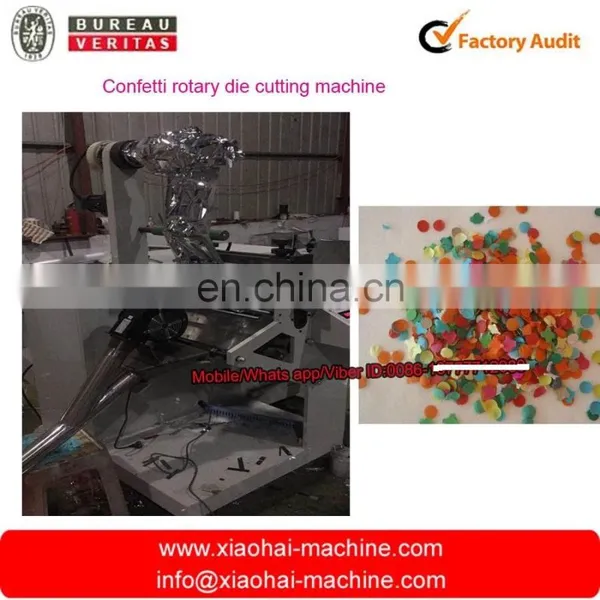

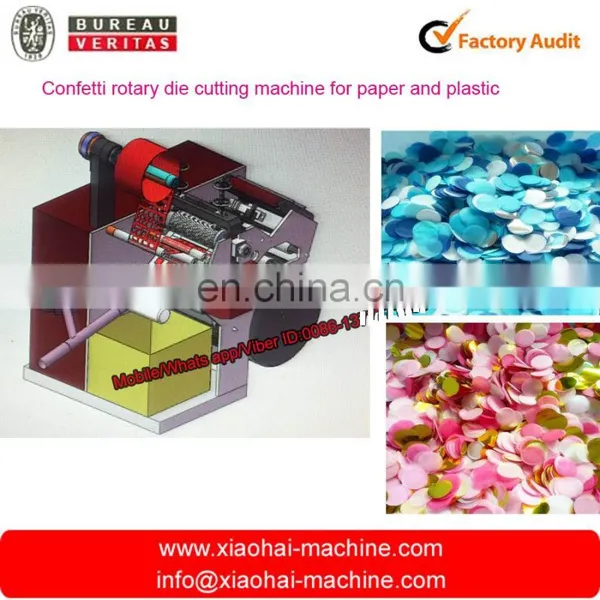

Rotary die cutting machine
Characteristics:
1. Unwind shaft with limiting baffle, easy for material fixing. Unwind web guide adopt frame mode, easy for adjusting, and with high precision.
2. Die cutting axle head fixing seat adopt circle design, it is easy for assemble and disassemble, compare with traditional square shape fixing seat, it saves half time. Die cutting pressure adjusting screw arbor is rotation structure, it do not need to take off.
3. Transmission adopt synchronous belt to reduce noise.
4. Unwind and waste collection all adopt magnetic powder brake/clutch to control, operation stable.
5. Unwind adopt auto tension control for constant tension, rewind adopt taper tension control
6. Unwind, waste collection air shaft all auto air charge.
Main technical parameters:
|
Die cutting speed |
80m/min |
|
Die cutting girth |
240-450mm |
|
Max.width of roll |
320mm |
|
Max.diameter of unwinding roll |
650mm |
|
Overall size |
1800*1200*1800mm |
|
Weight |
800KG |
|
Power supply |
AC220V |
