1.Bottom sealing by Swiss hot air devices, so you can get non-leakage cups.
2. Cup side sealing by Taiwan Evergreen ultrasonic; if you will not change mold, only one mold work with the machine, you can take hot air sealing as option.
3. Cup top curling and bottom knurling are finished by separate turn-plates.
4. It is easy to make cups with different sizes by changing molds.
5. With automatic cup delivery system and counter.
Technical data:
Cup Use |

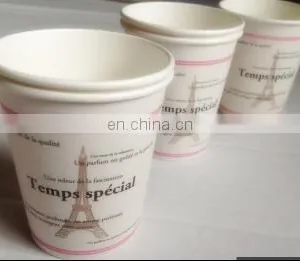

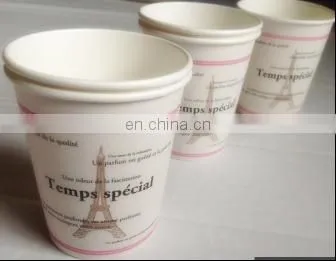

round paper cups, drinking , noodle and vending cups ice-cream and food containers |
Cup Size |
6oz ~22oz |
Raw material |
190~~380gsm Single and Double PE coating paper |
Output |
60-90pcs/min |
max. top diameter |
145mm |
max. cup height |
178mm |
min. top diameter |
50mm |
min. cup height |
50mm |
Electrical requirement |
380V or 220V, 50Hz |
Electric consumption |
12 KW |
Air consumption |
1MPA |
Machine dimensions |
3200L*1700W*1700H(mm) |
Machine Weight |
2,000kgs |
The minimum QTY |
1 set |

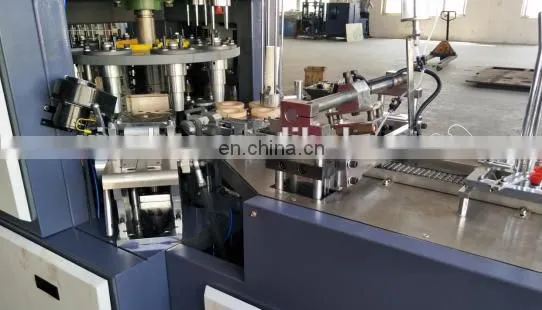

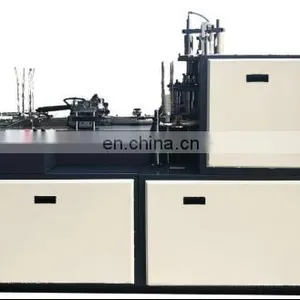

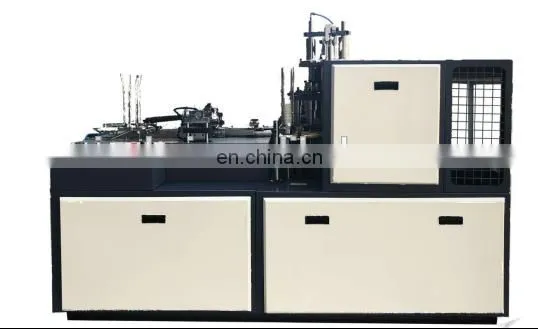

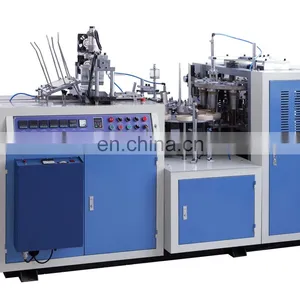

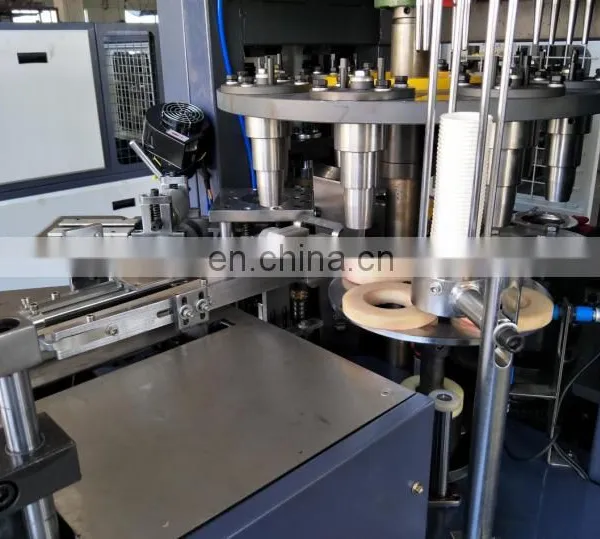

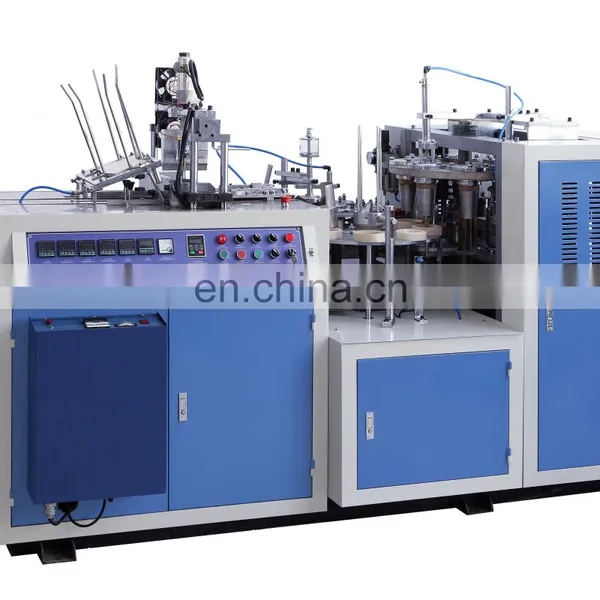

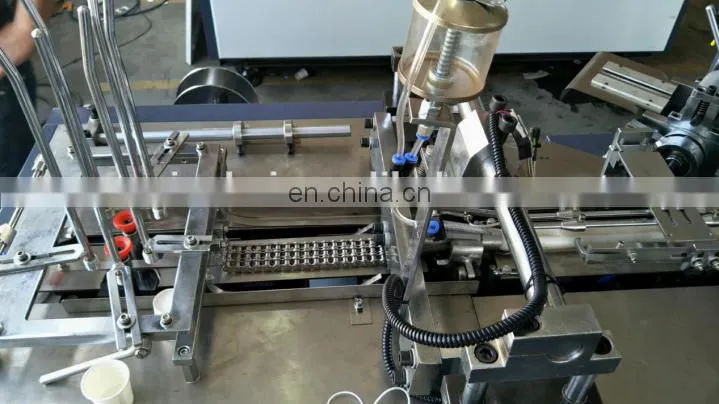

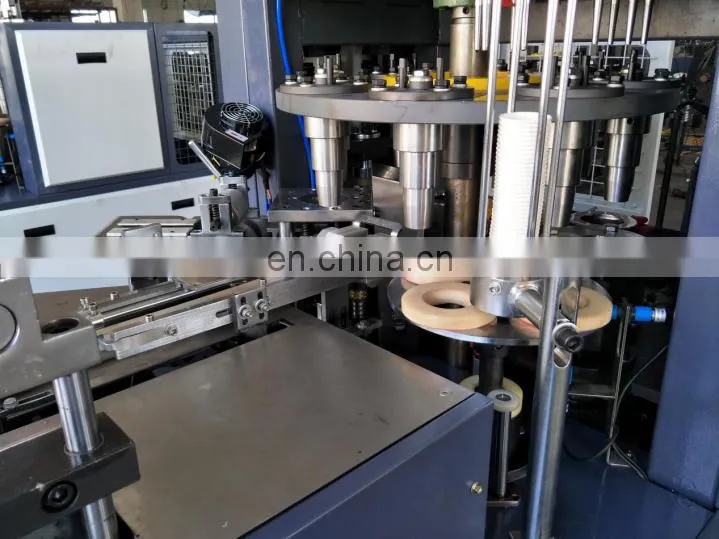

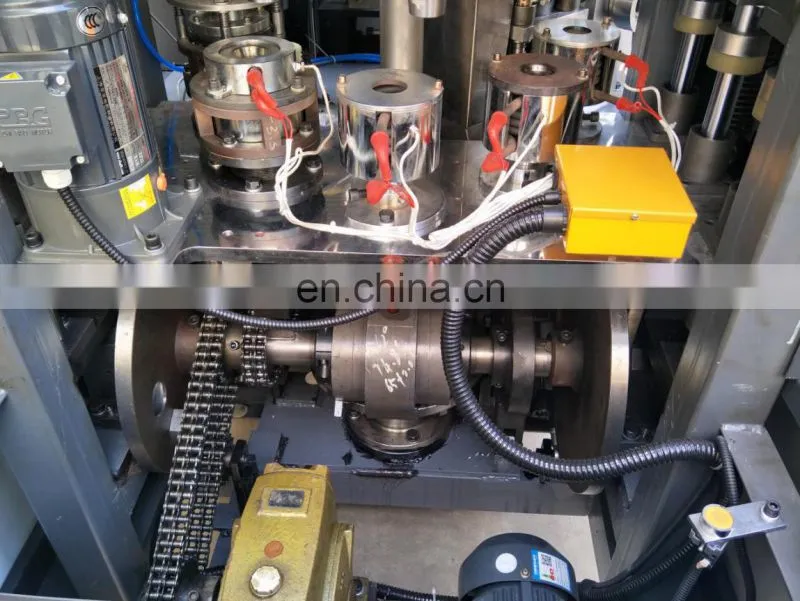

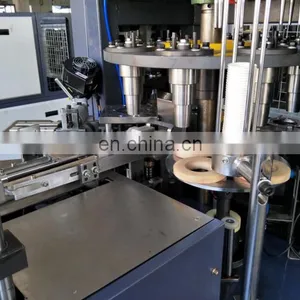

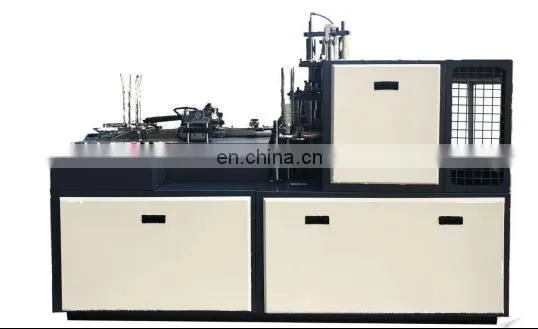

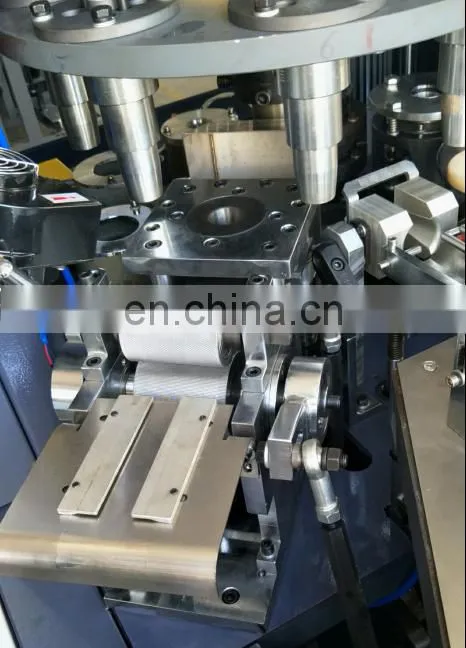

Machine pictures:
