Parts Of Universal Testing Machine Tensile Compression Testing Machine Universal Testing Equipment

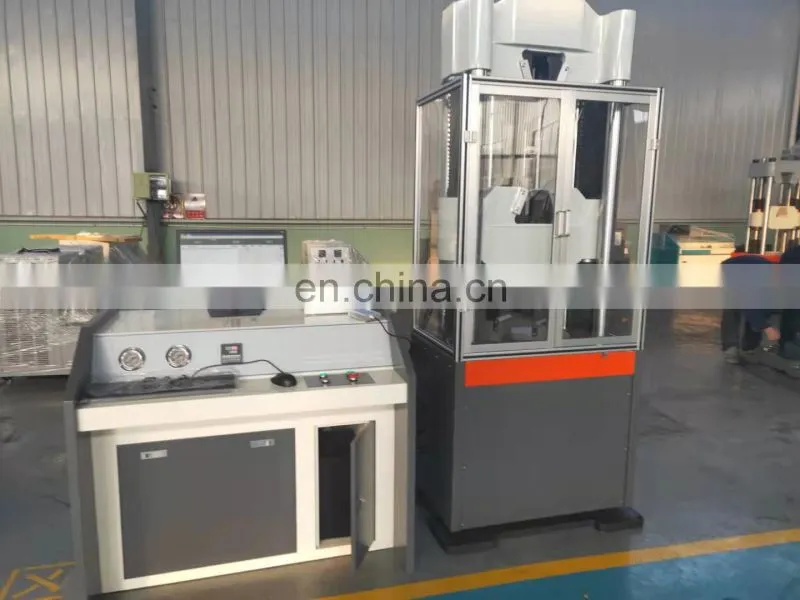

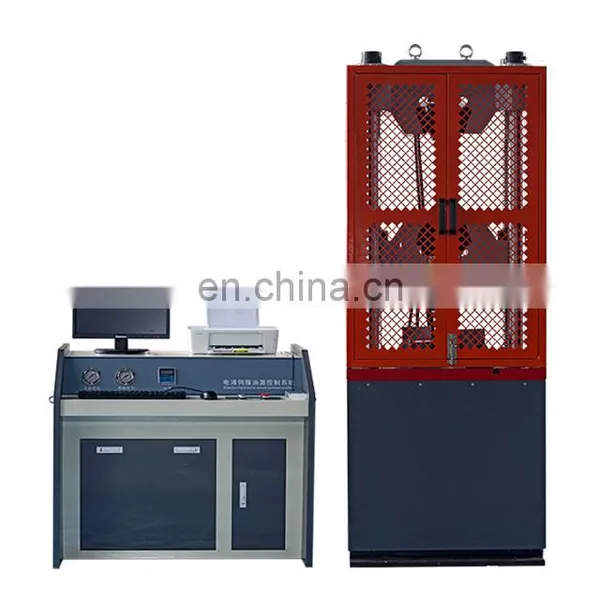

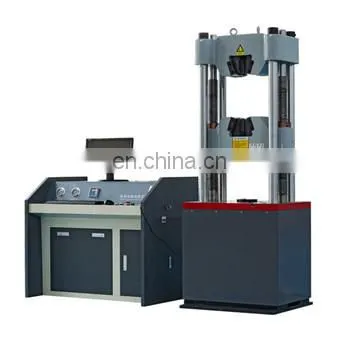

The testing machine will do the opened loop testing control when used the convenient manual valve. Meanwhile, it will drive the precision clearance seal hydraulic cylinder so as to complete the test of the tensile, compression, bending and other testing performance. The operation is direct, fast, efficient, in line with national standards.
The force value was tested by the sensor, and realize the setting for the parameter, data acquisition, processing, analysis, storage, as well as the display for the force value, loading speed & max load through the LED displayer. In addition, it can automatically calculate the tensile strength, yield characteristics of the yield strength of the material, calculate break elongation test data, etc. This kind of equipment also has such functions of limit protection, over current protection, overload protection, etc.
| Max Load | 1000KN |
Test Error |
≤1% |
Test Range |
Max Load 2%~100% |
Clamping Method |
Hydraulic Clamping |
Diameter for Round |
Φ4~Φ32 mm |
Thickness for Flat |
0~15mm |
Width for Flat |
70 mm |
Max Tensile Space |
550 mm |
Max Compression Space |
500 mm |
Control Cabinet Size |
1100(L)×620(W)×850(H) mm |
Host Size |
730(L)×590(W)×1900(H) mm |
Power |
2.3kw |
Host weight |
2500 kg |
The clear spacing of columns |
450 mm |
Compression Plate Size |
Φ150 mm |
| Span for Roller | 30-400 mm |
| Roller Width | 140 mm |
| Allowable Bending Length | 100 mm |
| Max Piston Stroke | 200 mm |
| Max Piston Speed | about 60 mm/min |
| Test Space Adjust Speed | about 100 mm/min |
1.Response within 24 hours for any problem.
2.Lifelong after sales service & maintenance.
3.Our products are equipped with more than 100 different sample holders for users to choose, which can meet the testing requirements of more than 1000 kinds of materials.
4.Installation and training service is available.
5.According to different user materials, Chuanbai also provides customized services to meet different users' needs
The WDW-50D is a new generation of microcomputer-controlled electronic universal testing machine. It is mainly used for the testing of mechanical properties such as tensile, compression, bending, shearing, peeling and tearing of various metals, non-metals and composite materials. The system adopts closed-loop control of microcomputer, which has wide and accurate loading speed and measuring range, and has high precision and sensitivity for measurement and control of load and displacement. The equipment is suitable for metal, adhesive, pipe, profile, aerospace, petrochemical, waterproof coil, wire and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper and other manufacturing industries. Product quality supervision departments at all levels are also applicable to teaching demonstration work in colleges and universities.
Q: Your company is a trading company or a factory?
A: Factory + trade (integration), 12 years of focus on the field of testing instruments.OEM is also acceptable for us.
Q: When will the order be delivered?
A: Usually about 10-28 days. If we have inventory, we can arrange the delivery within 3 days after the retest in the laboratory. Please note that our products delivery time depends on the specific equipment and quantities.
Q: What about the warranty?
A: 12 months. In addition, we can help you feel free to fix your problem controller, even if it doesn't come from our factory. After the warranty, the professional after-sales service team will provide perfect technical support to help customers solve the problems encountered when using our products, and deal with customers' problems and complaints in a professional and timely manner.
Q: How about the service and quality of the products?
A: Each equipment must be 100% inspected and tested during transportation and delivery. Product use training, we can send you the video for training to show you how to install and operate. We can arrange engineers to train the operation of the equipment for you when necessary. We made an amazing reputation in this field.
