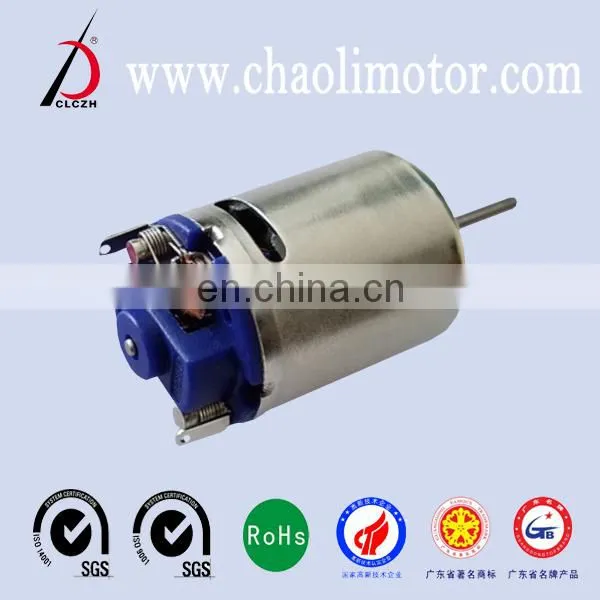

Help CenterHot Selling7.2V High Torque Airsoft Mini DC Motor CL-RK370SA With Carbon Brush and Plastic End Cover-chaoli
Related Products
-
Airsoft and Water Gun Motor CL-RK370SA With Carbon Brush and High TorqueUS$ 4.3 - 4.5MOQ: 1000 Units -
Chaoli Alarm Clock Motor CL-FA130 for Quartz Square Clock,RC Car Toy,USB Mini Fan and Small Household Electrical AppliancesUS$ 0.3 - 0.35MOQ: 2000 Units
-
Micro N20 and N30 Spur Geared Motor With High Efficiency and Metal Seal Structure for Robots ,gearbox and Household AppliancesUS$ 10 - 15MOQ: 500 Units
-
10mm 3.7V Coreless Motor CL-1020D With High Torque and Speed for 4 and 6 Axis AircraftUS$ 2.5 - 3.5MOQ: 1000 Units
-
23mm and 1700KV Outer Micro dc Brushless Motor for Drone,helicopter and Aircarft-chaoliUS$ 7.55 - 7.98MOQ: 500 Units
1.This product
- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

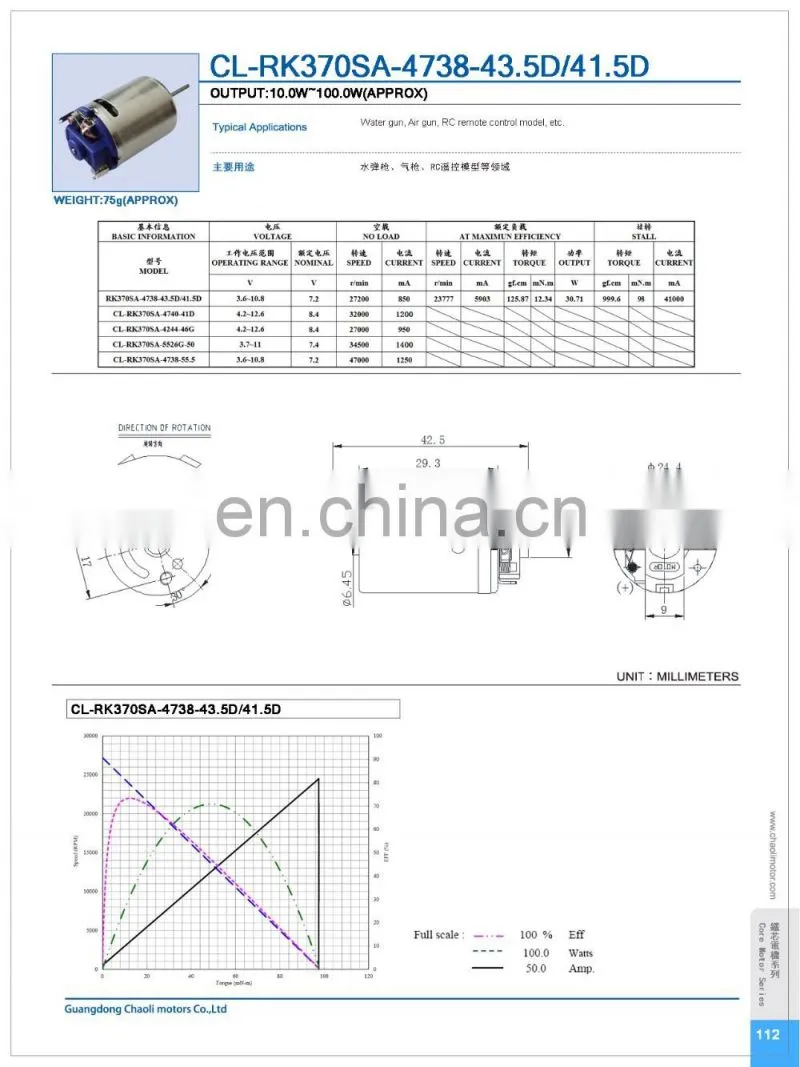

Special features/structure:
Motor type: PMDC brushed motor
Motor housing (D*F*L): Φ24.4*29.3mm
Housing material: SECD-O(surface coating)
Shaft (diameter): Φ2.0mm carbon steel (nickel coating)
Way of commutation: carbon-brush
Structure: 2-pole stator and 3 Slot,separating shell
Magnet type:Strong magnet (E-C temperature tolerance grade)
Rotation: CW/CCW and reversible
Weight: 75g (approx)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type
Wire diameter and turn number
Key parameters/performance
Rated voltage: 7.2V DC
At no load:
Speed: 27200rpm
Current: 0.85A
At stall:
Current: 41A (maximum)
Torque: 1000gf.cm
Provide high quality, Bring honorable value.
2.Our products
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
Our advantages:
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
