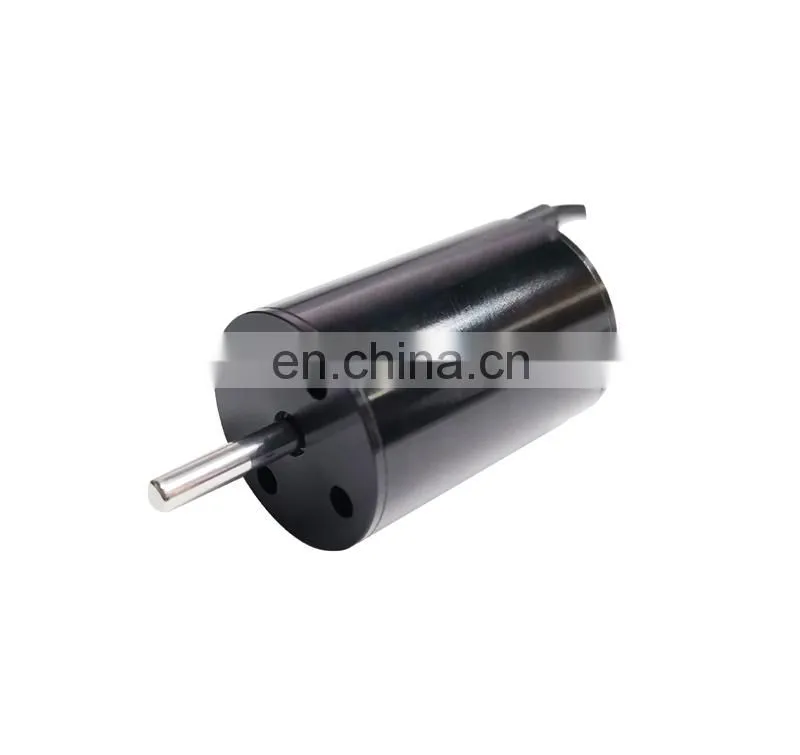

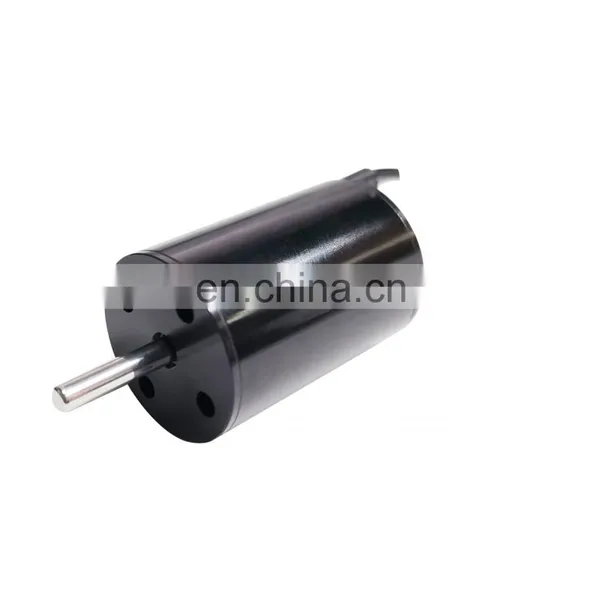

2030ZWW High Torque RC Airplane Bldc Motor 12v 40000rpm Brushless

2030ZWW High Torque RC Airplane Bldc Motor 12v 40000rpm Brushless thumbnail-1
2030ZWW High Torque RC Airplane Bldc Motor 12v 40000rpm Brushless photo-1
US$ 45 - 55 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
SFL
Place of Origin:
Guangdong, China
Model Number:
SFL-2030ZWW
Contact Supplier Request Quote Chat Now
Shenzhen Shengfulai Motor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SFL
Place of Origin Guangdong, China
Model Number SFL-2030ZWW
Product Description

 2030ZWW High torque RC airplane bldc motor 12v 40000rpm brushless                                         BRUSHLESS DC MOTOR

____________________________________________________________________________________

 2030 Interior Rotor Without Sensor

Applications: Medical equipment, industrial equipment, navigation models, electrical
tools and mini household appliances,etc.

Operating Environment:-15~+50℃;15~90%RH

Characteristics
      -1-12.0 -2-12.0
1 Voltage V  12  12
2 Terminal resistance Ω  0.36  6.1
3 No-load  speed rpm 43260  9180
4 No-load current A  0.57  0.25
5 Load torque mNm  5.0  2.0
6 Load speed rpm 39420  8640
7 Load current A  2.66  0.37
8 Max output power W  63.86  8.18
9 Max efficiency %  66.3  67.3
10 Back-EMF constant mV/rpm  0.28  1.31
11 Torque constant mNm/A  2.39  16.67
12  KV value rpm/V  3610  770
13  Rotor inertia gcm2  1.5  1.5
14  Weight g  40  40
Options
Lead wires length, shaft length, special coils, gearheads, bearing type, encoder, driver

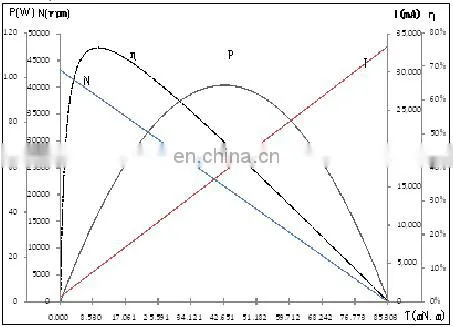

Characteristics Curve
2030

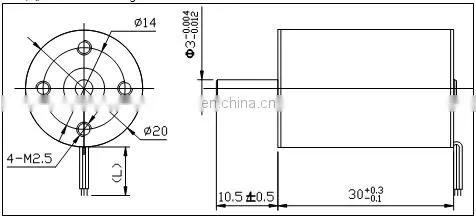

Outline Drawing





Brushless Series

Adopt imported environmental friendly material, CNC machining and dynamic balance test, with the

features of low power consumption, low noise, durable in use, strong overload capacity,  small  electromagnetic

interference, small size, etc. Offer One-stop solution.

Application: medical instrument, industry equipment, aeromodelling plane, electric tool, beauty instrument,

smart home, car product, Office automation equipment.

2030ZWW High torque RC airplane bldc motor 12v 40000rpm brushless



 MODEL  SIZE  VOLTAGE NO-LOAD SPEED   NO-LOADE CURRENT  KV VALUE TORQUE CONSTANT
 mm v   rpm  mA  rpm/V mN.m/A
1215ZWW  Φ12*15  3.6 36000  300   10000 0.92
4.5 15000 100 3333 2.63
7.4 43000 200 5811 1.56
1220ZWW  Φ12*20   5 18000  210   3600 2.52
6 17500 150 2917 3.1
7.4 23500 100 3176 2.95
1230ZWW   Φ12*29  3.7  18500  230 5000  1.95
9 18500 150 2056 4.65
12 12000 50 1000 9.65
1330ZWW  Φ12*30 12 25500 100 2125 4.35
1635ZWW Φ16*35  12 45500 350 3792 2.55
2030ZWW Φ20*30 12 43500 370 3625 2.65
12 7500 100 625 14.95
12 9500 250 792 11.2
2040ZWW   Φ20*40    9 6900   200  767 12.6
 12  15500   250 1292  7.7
 12 8500  360  708   13.5
2050ZWW  Φ20*50    12 6500   160 542  18.1
