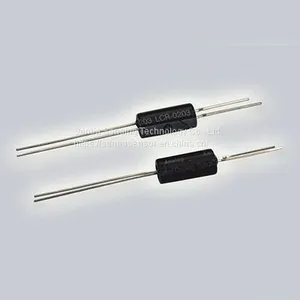

An Overview of Low Distortion Coupling Linear Optocoupler lcr 0203 Series for Volume Control and Electrical Coupling
Optocoupler is an electronic component that transfers electrical signals between two isolated circuits by using light. The analog linear optocoupler is widle used in lighting, smart machine.
Feature
Pure resistor and non-polarity output
Wide range of analog liner resistance, "on" at the low resistance. "off" at high resistance
Simple circuit configuration suitable for DC and AC use
Input to output isolation, and low distortion coupling
lcr 0203 datasheet
Type |
LCR- 0203 Series |
Package |
Aluminum alloy columnar |
Input current |
0- 20mA |
Input Voltage |
1.6- 2.5Vdc |
Output Light Resistance |
50Ω - 1KΩ @20mA- 0.01mA |
Output Dark Resistance |
1Ω - 10MΩ @10 seconds off later |
Response Period |
|
Insulating Voltage |
>2500VRMS |
Working Frequency |
|
Max Power |
100mW |
Dimension(mm) |
Diameter 6.0*13.5 |
Senba Sensing Technology Co.,Ltd., sets focus on producing top quality photoelectric components, such as passive infrared sensor, Photoresistors and Light Sensors ,etc. These series of chinese pir is advanced in this field.
