Cheap Price Electric Coil Heating Element Immersion Heater U Shape Stainless Steel Heating Tube
US$ 1 - 5
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
Junqian
Place of Origin:
Jiangsu, China
Type:
Infrared Heater
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heating Element U Shape Stainless Steel Heating Tube With Good PriceUS$ 2.35 - 3MOQ: 20 Pieces -
Hot Selling Customized Size Non-Standard U Shape Stainless Steel Heating TubeUS$ 1 - 10MOQ: 20 Pieces
-
220v 16mm Single Head Heating Tube With M2 ScrewUS$ 5 - 10MOQ: 500 Pieces
-
Single End Electric Heating Element 3D Printing Cartridge Heater 12v 24v 30w 40w 050w Cartridge Heater for 3d PrinterUS$ 0.99 - 1.99MOQ: 20 Pieces
-
Factory Provide Good Price Hot Plate Aluminium Alloy HeaterUS$ 1 - 6MOQ: 5 Pieces
Brand Name
Junqian
Place of Origin
Jiangsu, China
Type
Infrared Heater
Certification
CE, FCC, RoHS
Warranty
1 Year
Weight
Customized, Customized
Dimension(L*W*H)
Customized
Condition
New
Voltage
10-500 V, 220/380 V
Power Source
Electric

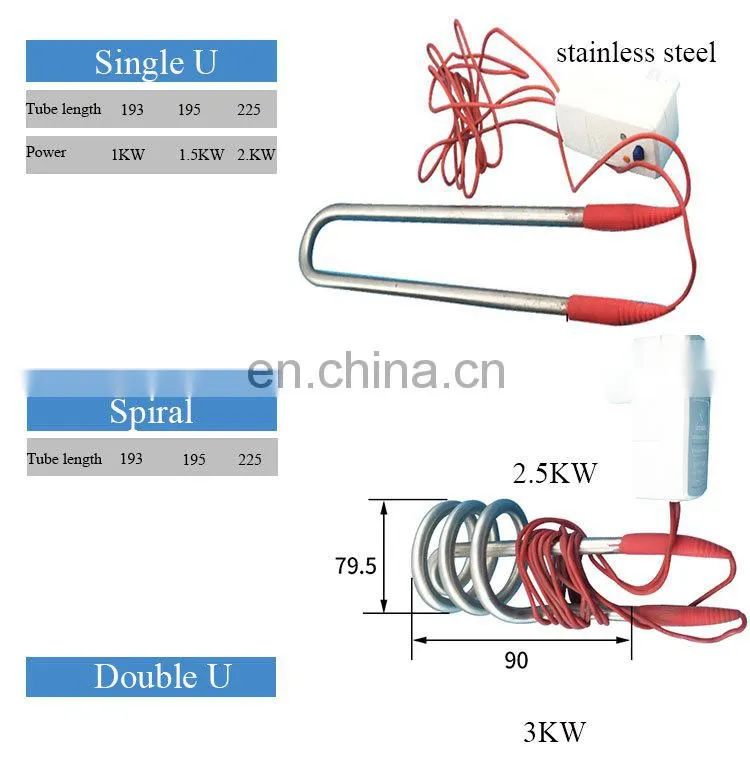

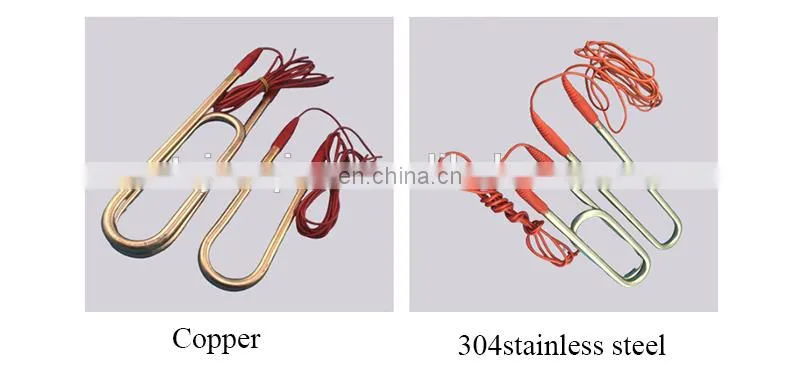

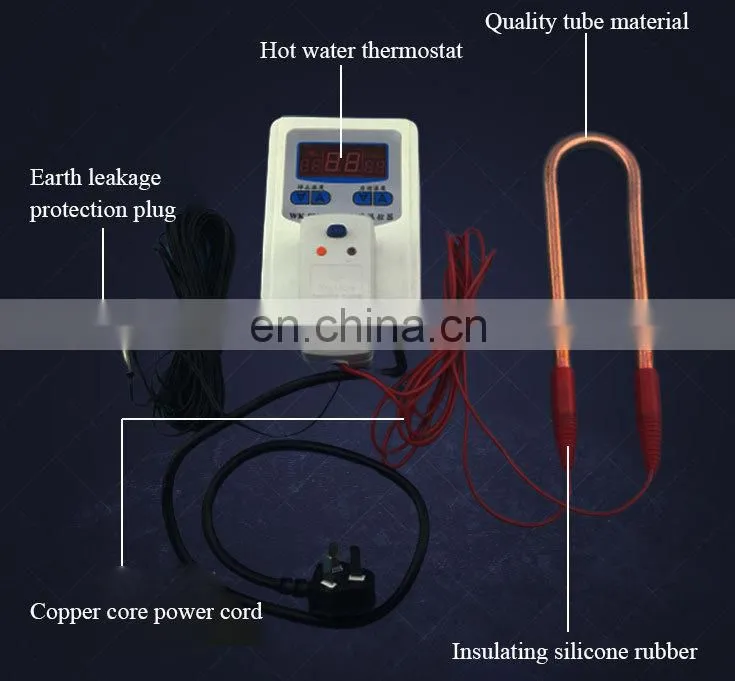

The tubular electric heating element (electric heating pipe) is made of metal tube (including stainless steel and copper tube), along the central axis of the tube, the spiral electric alloy wire (nickel chrome, iron chrome alloy) are uniformly distributed. The gap fills compacted magnesium oxide with good insulation thermal conductivity performance, the nozzle ends sealed with silicone, this metal armored heating elements can heat the air, metal molds and a variety of liquids.

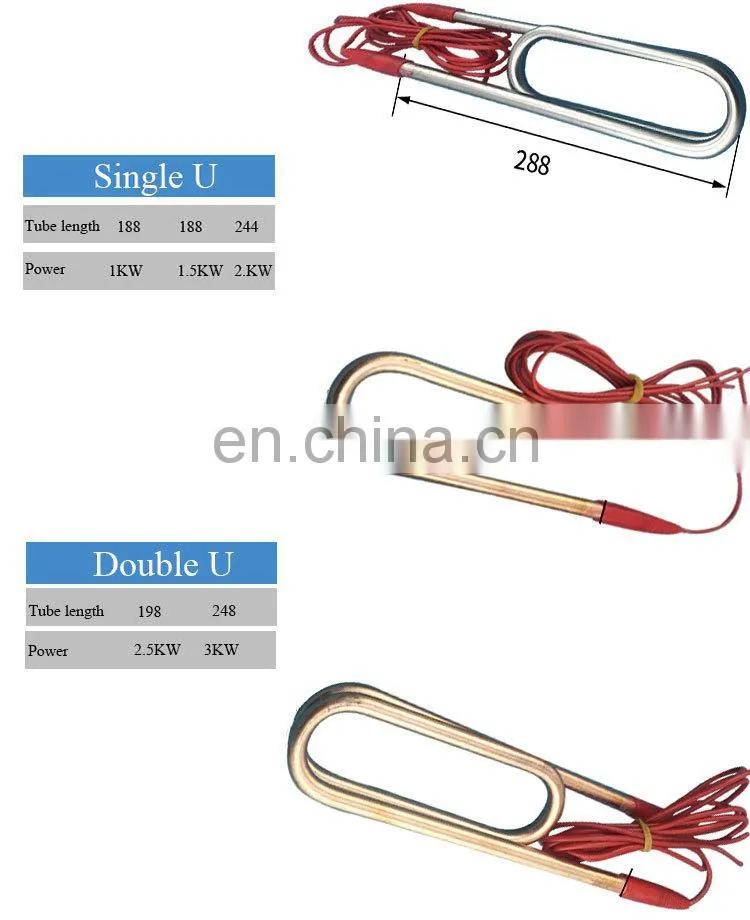

| Style | Power/Voltage | Tube Body Material | Tube Diameter |
Single Side Length (include rubber head) |
Wire Length |
| single U | 220V/1KW | 201 stainless steel | 12MM | 250MM | 1.2M |
| single U | 220V/1.5KW | 201 stainless steel | 12MM | 250MM | 1.4M |
| single U | 220V/2KW | 201 stainless steel | 12MM | 300MM | 1.4M |
| single U | 220V/3KW | 201 stainless steel | 12MM | 350MM | 1.4M |
| single U | 380V/6KW | 201 stainless steel | 16MM | 700MM | 1.4M |
| single U | 380V/8KW | 201 stainless steel | 16MM | 800MM | 1.4M |
| single U | 380V/10KW | 201 stainless steel | 16MM | 800MM | 2M |
| single U | 380V/12KW | 201 stainless steel | 16MM | 1000MM | 2M |
| double U | 220V/3KW | 201 stainless steel | 12MM | 350MM | 1.4M |
| double U | 220V/4KW | 201 stainless steel | 12MM | 390MM | 1.4M |
| double U | 220V/3KW | 201 stainless steel | 12MM | 350MM | 1.4M |
| double U | 220V/4KW | 201 stainless steel | 12MM | 390MM | 1.4M |
| double U | 220V/5KW | 201 stainless steel | 12MM | 420MM | 1.4M |
