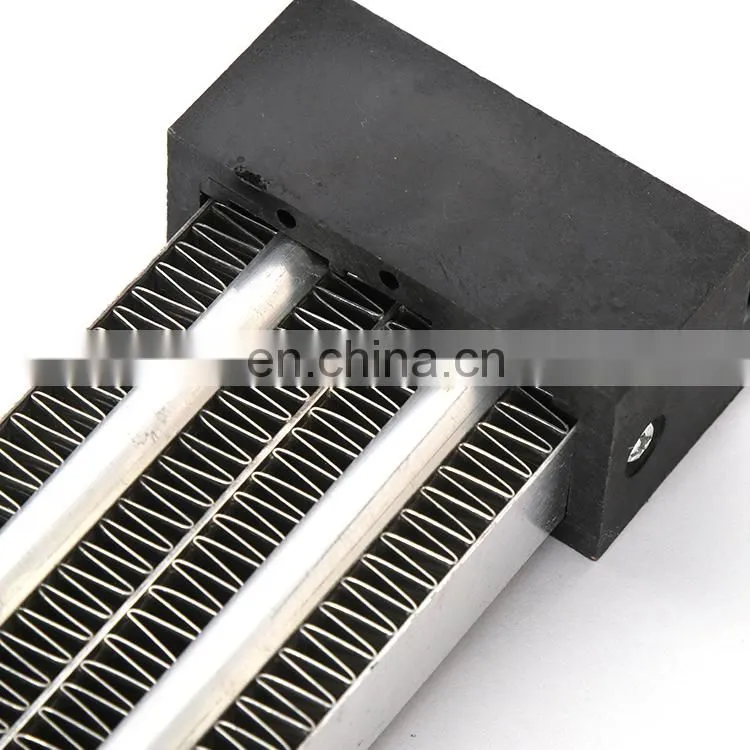

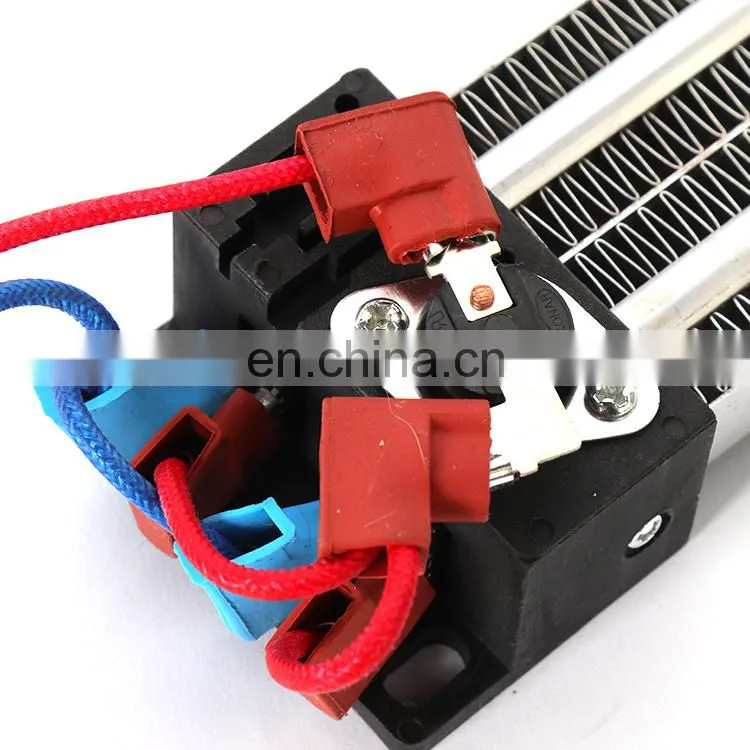

Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat, PTC
heater is made of PTC ceramic heating element and aluminum tube. It is an automatic constant
temperature heater and does not need any additional temperature applications.it is a new kind heater in
the market .It is fixed by a pair of metal electrodes with leads on both sides of PTC element.
| voltage | 12-240V AC/DC* (min. 110V, max. 265V) |
| temperature | -45 to +70 °C (-49 to +158 °F) |
| humidity | max. 90 % RH (non-condensing) |
| Protection type | IP54 / II (double insulated) |
| Mounting | screw fixing |
| Fitting position | variable |
| Heater body | aluminium, anodised |
| approvals | VDE + UL File No. E254776 |
| Size | Voltage | Power | length dis | Width dis | Length | Width | Aluminum length | Aluminum width |
| 120*50mm | 220V AC | 500W | 120mm | 40mm | 138mm | 52mm | 57mm | 43mm |
| 175*50mm | 800W | 175mm | 193mm | 112mm | ||||
| 230*50mm | 1000W | 230mm | 248mm | 167mm | ||||
| 280*50mm | 1200W | 280mm | 298mm | 217mm | ||||
| 345*50mm | 1500W | 345mm | 363mm | 282mm | ||||
| 390*50mm | 2000W | 345mm | 408mm | 282mm | ||||
| 430*50mm | 2000W | 430mm | 448mm | 367mm | ||||
| 490*50mm | 2000W | 490mm | 508mm | 427mm | ||||
| 120*75mm | 1000W | 120mm | 95mm | 160mm | 110mm | 97mm | 72mm | |
| 175*75mm | 1500W | 175mm | 215mm | 152mm | ||||
| 230*75mm | 2000W | 230mm | 270mm | 207mm | ||||
| 280*75mm | 2000W | 280mm | 320mm | 257mm | ||||
| 120*75mm | 1000W | 120mm | 68mm | 140mm | 75mm | 97mm | 75mm | |
| 175*75mm | 1500W | 175mm | 195mm | 152mm | ||||
| 230*75mm | 2000W | 230mm | 250mm | 207mm | ||||
| 280*75mm | 2000W | 280mm | 300mm | 257mm |
Main advantage :
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Package : paper box and Wooden box or customized for you.
