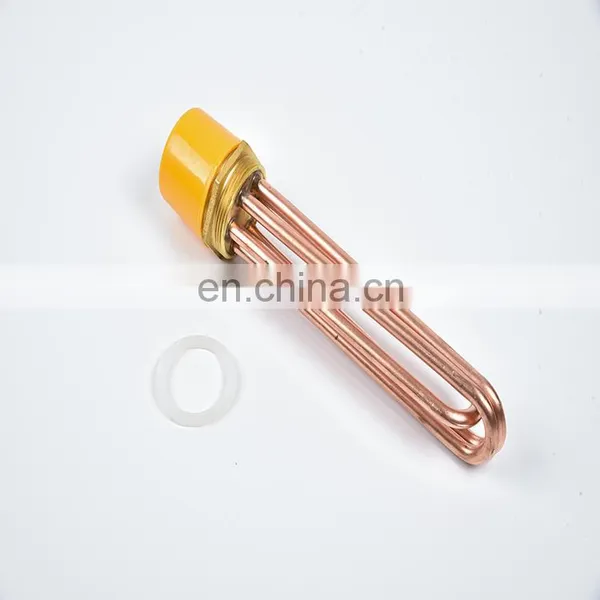

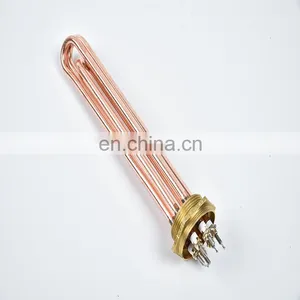

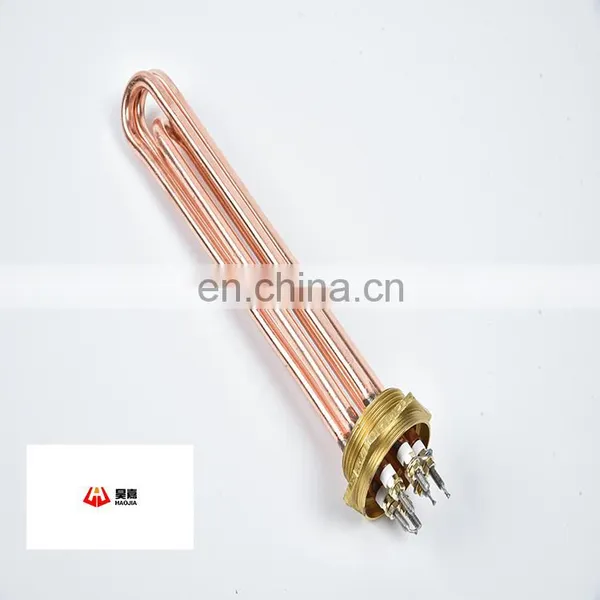

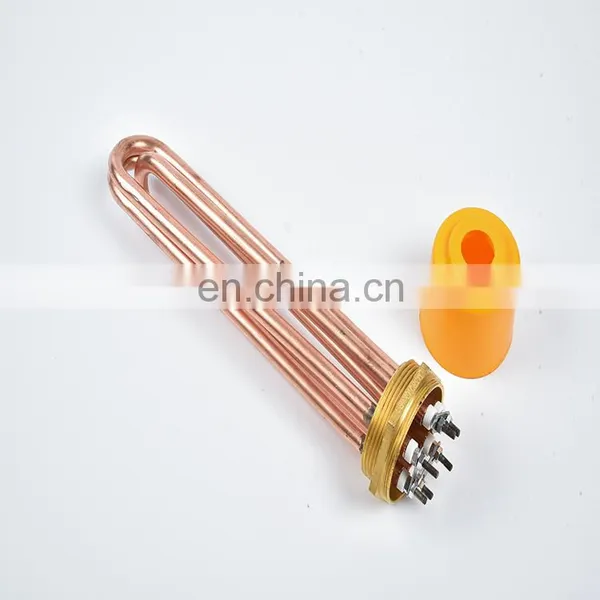

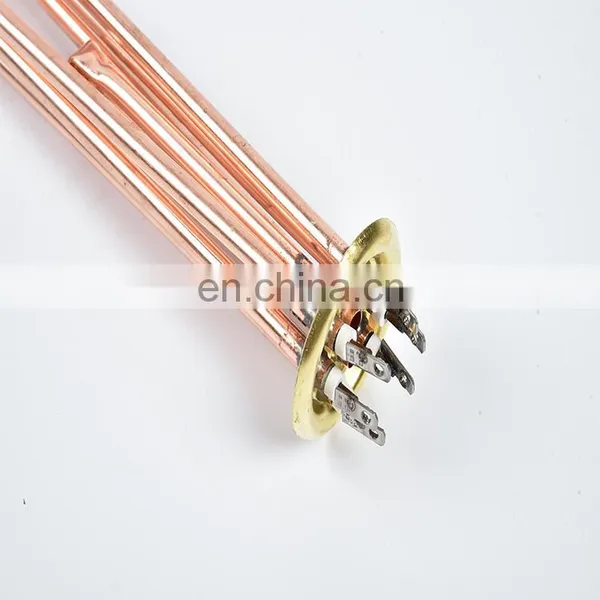

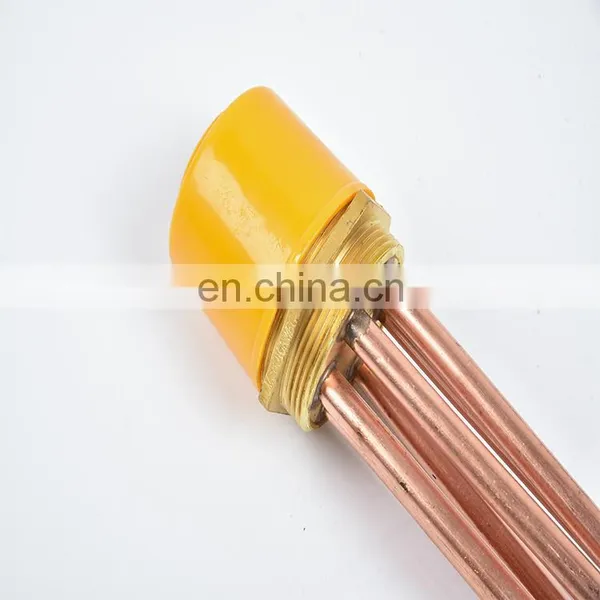

The popular customize copper water heater 110v small water heater 120v immersion water heater
| Name | Copper heating tube |
| Material | copper |
| Operating Voltage | 380V 220V |
| Power | 600W |
| Specification | Customized according to customer requirements |
| Size | custom made |
| Pipe diameter | Usually 8mm 10mm |
| Application | Boiling water heating |
»»CLICK THERE TO SEE MORE INFORMATION
Our heating tubes are fast and safe to heat, so we can choose from a wide range of styles.
Click to see more products,if you like us , you can click there contact us
Flange boiling water heating pipes are widely used in solar energy, air energy, engineering water tanks, etc.
»» CLICK THERE TO KNOW MORE DETAILS
electric heating pipe matters needing attention
1. Components are allowed to work under the following conditions:
(1) The relative humidity of the air is not more than 95%;
(2) The working voltage is not more than 1.1 times the rated value, and the outer casing should be effectively grounded.
2. When the heating medium is a liquid, the effective length of the element (H1 or H2) must be completely immersed in the liquid.
3. Components that heat liquids must not be used to heat gases or solids.
4. For heating liquid components, if there is scale or charcoal on the surface of the pipe, it should be cleaned before use, so as not to affect the service life of the components and reduce the thermal efficiency.
5. When smelting light metal or nitrate salt, alkali, asphalt, paraffin, etc., it is heated when it is solid. It should be started by depressurization. After the solid heating medium is completely melted, it can rise to the rated voltage.
6. Safety measures should be taken when heating nitrate salt to prevent explosion accidents.
7. The component wiring part should be placed on the insulation layer and outside the heating room to avoid contact with corrosive and explosive gases. The outlet end must be kept dry and clean to avoid flashover or short circuit. Do not use excessive force when wiring.
8, the end of the component may overflow a small amount of paste, this is the sealing material, does not affect the use, after the power is off, the spill can be cleaned.
9. The components should be stored in a room where air circulation, relative humidity is not more than 85%, and no corrosive gas.
10. After the component has been used for a long time and is not used for a long time, when the cold insulation resistance is lower than 1 megohm, the component can be baked in a drying oven with a temperature of about 200 degrees, or the voltage can be directly heated to remove moisture. Until it returns to normal.
»»CLICK THERE TO SEE MORE PRODUCTS
IF YOU LIKE US PRODUCTS,CLICK TO THERE CONTACT US»
1. Packing
Export carton packing box for small qty;
Export wooden packing box for large qty.
2. Shipping
1. Fedex/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-7 days for samples; 8-25 days for batch goods.
To see more details»
Taizhou haojia electric heating appliance CO., LTD. Is a professional manufacturer and manufacturer of heaters, electric heating tubes, electric heating wires, heating plates, thermocouples, thermal resistors, heat-resistant steel castings, heating rings, electric ovens, ovens and other products, with a complete and scientific quality management system.Taizhou haojia electric appliances co., LTD. Integrity, strength and product quality recognized by the industry.Welcome friends from all walks of life to visit, guidance and business negotiations.
CLICK TO CONTACT US »
|
Taizhou HaoJia electric appliances CO., LTD CONTACT US:LEIXI »» CLICK THERE TO SEE US SHOP MORE DETAILS
»» CLICK THERE TO CONTACT US
♦♦♦ We are 24 houes online
|
Precautions
If you like our company's products, click on the red circle collection store in the above picture. New and old customers offer 5 yuan, »»click here to go to our homepage collection
