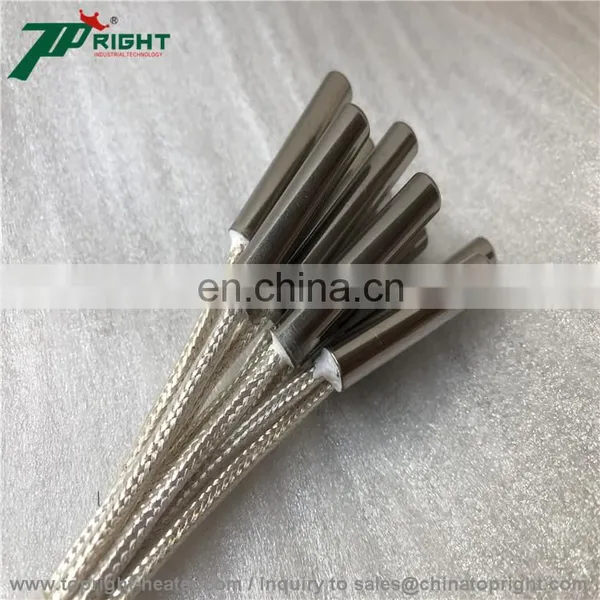

Help CenterClass A Industrial Pt100 Type Thermocouple Temperature Sensor
Related Products
-
Stainless Steel Probe 0~400C Temperature Sensor J Type Thermocouple in Probe 2*90mmUS$ 3.99 - 8.5MOQ: 10 Pieces -
Thermocouple K Type With Corrugated Hose Wire Length 500mmUS$ 3.9 - 8.4MOQ: 10 Pieces
-
Standard K-type Thermocouple With Probe 2*55mmUS$ 8 - 8MOQ: 10 Pieces
-
Standard K-type Thermocouple With Probe 2*50mmUS$ 1.9 - 8MOQ: 10 Pieces
-
Temperature Sensor Type Pt100 Probe in 5x35mm and 1m Length CableUS$ 0.8 - 8.49MOQ: 10 Pieces
The description of thermocouple :
Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
Thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure a wide range of temperatures.
Thermocouples sensors technical indicators:
Product |
Conductor material |
Type |
Graduation |
Use temperature°C(short time) |
Use temperature°C |
Thermocouple |
PtRh30-Ptrh6 |
WRR |
B |
0-1800°C |
0-1600°C |
PtRh10-Pt |
WRP |
S |
0-1600°C |
0-1300°C |
|
PtRh13-pT |
WRB |
R |
0-1600°C |
0-1300°C |
|
NiCrSi-NiSi |
WRM |
N |
0-1000°C |
0-1000°C |
|
NiCr-NiAl(Si) |
WRN |
K |
0-1200°C |
0-900°C |
|
NrCr-constantan |
WRE |
E |
0-700°C |
0-600°C |
|
Iron- Constantan |
WRF |
J |
0-600°C |
0-500°C |
|
Copper-Constantan |
WRC |
T |
0-400°C |
0-350°C |
|
Thermal resistance |
Copper heat resistance |
Cu50 |
-50-150°C |
||
Cu100 |
-50-150°C |
||||
Pt100 |
-200-600°C |
J type sensor
J Temperature Sensor
Temperature Sensor j
Temperature sensor K type
K type sensor
assemble K type
Ceramic sensor B type
R type thermocouple
Theremocouple S type
All kinds of thermocouple from Topright Industrial,welcome inquiry!
Type: B/S/R/K/J/E/N/T,custom for you!
More sizes and shapes to choice.
Since 2001,Topright
have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development. Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 200 countries. Please link:
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart". Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
