Introduction:

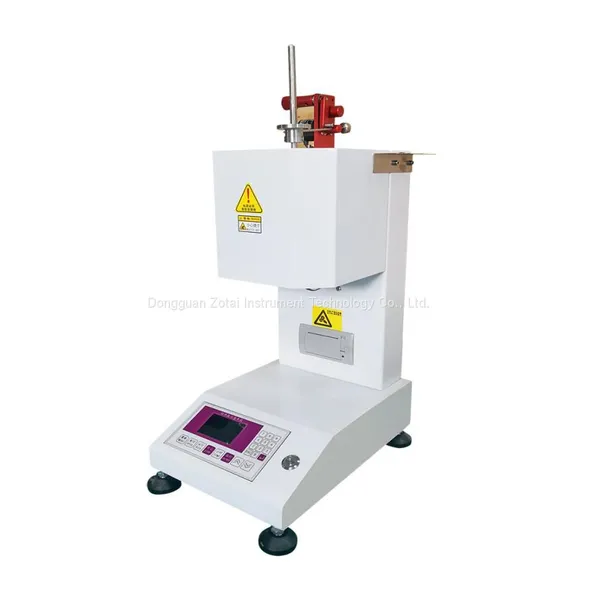

The melt index meter conforms to the standard requirements of GB / T3682-2000. The main parameters of the melt index meter are also full of ISO1133-97, ASTM1238, JIS and other standards. It can be used for polyethylene, polystyrene, polystyrene, ABS, poly Melt mass flow rate (MFR) or melt volume flow rate (MVR) of various plastic materials such as amides, fiber resins, acrylates, polyoxymethylene, fluoroplastics, polycarbonates, etc., are widely used in plastic production , Plastic products, petrochemicals and other industries as well as related colleges, scientific research units and commodity inspection departments.
Product features:
1.High-precision Chinese and English color controllers and specially customized membrane keys have unparalleled advantages in control accuracy and service life
2.Manual automatic material cutting integrated control, accurate to 0.1s, cutting time and cutting times can be set arbitrarily.
3.Built-in micro printer, can print test data
4.Dual temperature control system, using dual imported heating coils, dual imported PT100 platinum resistance sensors, to improve test accuracy and temperature stability.
5.Add displacement sensor to test MVR (volume method) with an accuracy of 0.01mm.
5.1 Volume method test can output the test result without cutting
5.2 The density value of the material at a specific temperature can be calculated by the ratio of the volumetric mass method
6.Can be connected to the computer via USB, and can set the test conditions on the computer through the software, print data, and store the data (optional).
7. Test method: mass method, volume method (MFR, MVR)
8. Display mode: English color LCD display
Main technical parameters:
Temperature range |
0 ℃ -450 ℃ |
Temperature fluctuation |
± 0.2 ℃ |
Temperature uniformity |
± 1 ℃ |
Temperature display resolution |
0.1 ℃ |
Time display resolution |
0.1S |
Diameter of the die |
Φ2.095 ± 0.005mm |
Length of discharge port |
8.000 ± 0.025mm |
Loading barrel diameter |
Φ9.550 ± 0.025mm |
Weight accuracy |
± 0.5% |
Displacement measurement accuracy |
0.01mm |
Volumetric timing accuracy |
0.01S |
Displacement measurement encoder |
Omron photoelectric rotary encoder |
Test range of quality method |
0.1-150g / 10min |
Volume method test range |
50-5000cm3 / 10min |
Output mode |
micro automatic printout |
Cutting method |
manual and automatic cutting |
Test load |
a full set of eight-level weights |
Power supply |
AC220V ± 10% 50HZ |
Attachment:
Weight |
2.16kg (standard) |
Weight tray |
1 piece (within load of level 1) |
Piston rod |
1 piece (within load of level 1) |
Die |
1 piece (tungsten carbide) |
Loading hopper |
1 piece (stainless steel) |
Loading rod |
1 piece |
Die cleaning rod |
1 piece (stainless steel) |
Gauze |
2 rolls |
Printing paper |
2 rolls |
