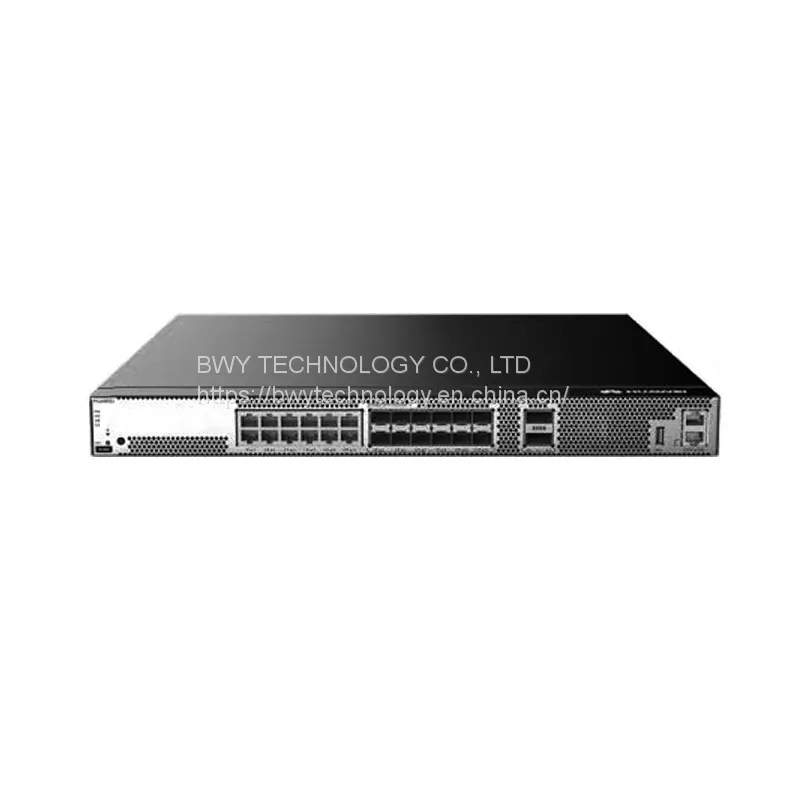

Help CenterAC6805 Huawei Wireless Access Controllers Mainframe (12*GE Ports, 12*10GE SFP+ Ports, 2*40GE QSFP+ Ports, no Power)
Related Products
-
AIR-AP3802I-E-K9 Cisco Aironet 3802i Access Point 802.11ac Wave 2 AP W/CleanAir, 4x43, Mod, Internal AntennaNegotiableMOQ: 1 Unit -
AIR-AP2802I-H-K9 Cisco 2800 Access Point AIR-AP2802I-H-K9 Dual-band, Controller-basedNegotiableMOQ: 1 Unit
-
Cisco AIR-AP1832I-H-K9 , 802.11a/g/n/ac Wave 2, Controller Based, 3 x 3 MU-MIMO, 1.733Gbps Thoughput, Dual-bandNegotiableMOQ: 1 Unit
-
AIR-CAP2702I-H-K9 Cisco Aironet 2700 Series Wireless Access Point 3*4 MIMO Technology Internal AntennasNegotiableMOQ: 1 Unit
-
AIR-CAP1702I-E-K9 Cisco Aironet 1700 Series Access Points Int Ant 3x3 MIMONegotiableMOQ: 1 Unit
AC6805 Overview
The Huawei AC6805 is a high-specification wireless access controller (AC) for medium- to large-sized enterprise campuses, enterprise branches, and school campuses. The AC6805 can manage up to 6K access points (APs) and provide up to 40 Gbit/s forwarding performance. It features high scalability and offers users considerable flexibility in configuring the number of managed APs. When used with Huawei's full series 802.11ax, 802.11ac and 802.11n APs, The AC6805 delivers an adaptable solution for medium to large campus networks, enterprise office networks, wireless Metropolitan Area Network (MAN), and hotspot coverage.
AC6805 Specification
| AC6805 Specification | |
Forwarding Capability |
40 Gbit/s |
Maximum Number of Managed APs |
6K |
Maximum Number of Access Users |
64K |
AP-AC Networking |
Layer 2 or Layer 3 networking |
Forwarding Modes |
Direct forwarding or tunnel forwarding |
AC Active/Standby Modes |
1+1 HSB or N+1 backup |
Radio Protocols |
802.11 a/b/g/n/ac/ac Wave 2/ax |
Dimensions (H x W x D) |
43.6 mm x 442 mm x 440 mm |
Interface type |
2 x 40G (QSFP+) + 12 x 10GE (SFP+) + 12 x GE |
Maximum power consumption |
231.7 W |
Operating temperature and altitude |
-60 m to +1800 m: 0°C to 45°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 220 m. |
Relative humidity |
5% RH to 95% RH, non-condensing |
Power module |
AC and DC power modules, supporting hot swapping, and hot backup NOTE:A maximum of two power modules are supported |
Number of managed APs |
Central APs：768 Common APs and RUs：6K NOTE:The RUs managed by the WLAN AC do not occupy the WLAN AC's license resources. However, the total number of managed common APs and RUs cannot exceed the upper limit allowed by the WLAN AC. |
Number of access users |
64K NOTE:The maximum number of access users varies depending on the authentication mode. |
Number of MAC address entries |
100K |
Forwarding capability |
40Gbit/s NOTE:Packet length: 1024 bytes |
Number of VLANs |
4K |
Number of routing entries |
IPv4: 16K l IPv6: 4K |
Number of ARP entries |
100K |
Number of multicast forwarding entries |
2K |
Number of DHCP IP address pools |
256 IP address pools, each of which contains a maximum of 64K IP addresses |
Number of local accounts |
6.4K |
Number of ACLs |
32K |
