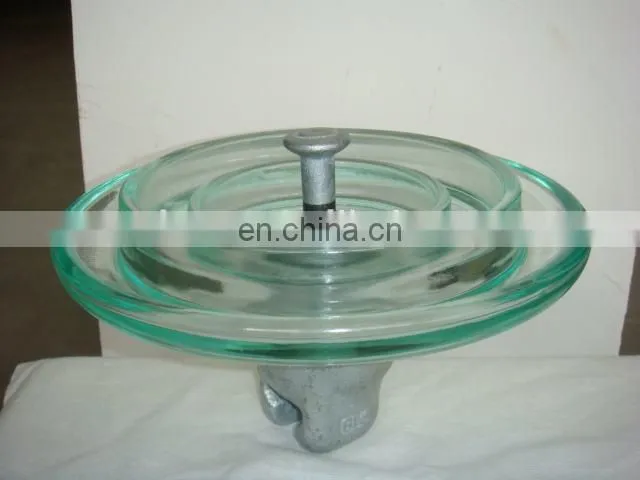

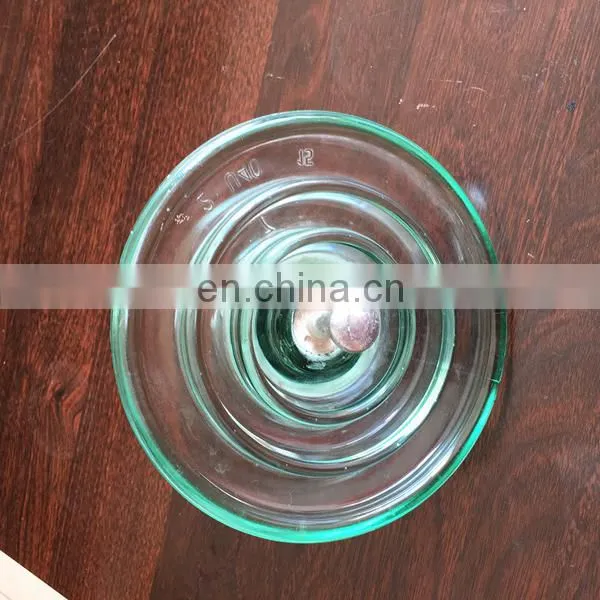

LXP-120 Toughened Glass Disc Suspension Insulator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Suspension Insulator for Power CableNegotiableMOQ: 1 -
Shackle Type Porcelain Electrical InsulatorNegotiableMOQ: 1
-
Toughened Glass Disc Suspension Electrical InsulatorNegotiableMOQ: 1
-
33kv Pin Type Glass Electrical InsulatorNegotiableMOQ: 1
-
2020year Toughened Glass Insulator U210BSNegotiableMOQ: 1
LXP-120 standard suspension insulator
Welcome your contact.
Email: aobest(at)
WhatsApp:+86 13310857673
Wechat:+86 13316918635
| LXP-120 insulator specification |
| GENERAL TYPE | U120B/146 | U120B/127 |
| TYPE OF RUITAI | LXP-120 | LXP2-120 |
| ( mm ) DIAMETER D | 255 | 255 |
| ( mm )SPACING H | 146 | 127 |
| ( mm ) CREEPAGE L | 320 | 320 |
| ( mm ) | 16 | 16 |
| ( kN )MECHANICAL FALING LOAD | 120 | 120 |
| ( kN ) TENSION LOAD TEST | 60 | 60 |
| ( kV ) POWER FREQUENCY WITHSTAND VOLTAGE(WET) | 40 | 40 |
| ( kV ) LIGHTENING IMPULSE WITHSTAND VOLTAGE LIGHTENING IMPULSE WITHSTAND VOLTAGE | 100 | 100 |
| ( P.U )IMPULSE PUNCTURE VOLTAGE | 2.8 | 2.8 |
| ( kV ) POWER FREQUENCY PUNCTURE VOLTAGE | 130 | 130 |
| ( µV ) ( 10kV,1MHz) | 50 | 50 |
| ( kV ) ELECTRIC IRON VISUAL TEST (CAP/PIN) | 18/22 | 18/22 |
| POWER FREQUENCY ELECTRIC ARC VOLTAGE POWER FREQUENCY ELECTRIC ARC VOLTAGE | 0.12s/20kA | 0.12s/20kA |
| ( kg )NET WEIGHT PER UNIT | 4 | 4 |

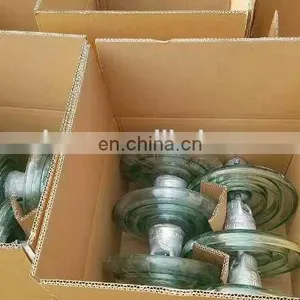

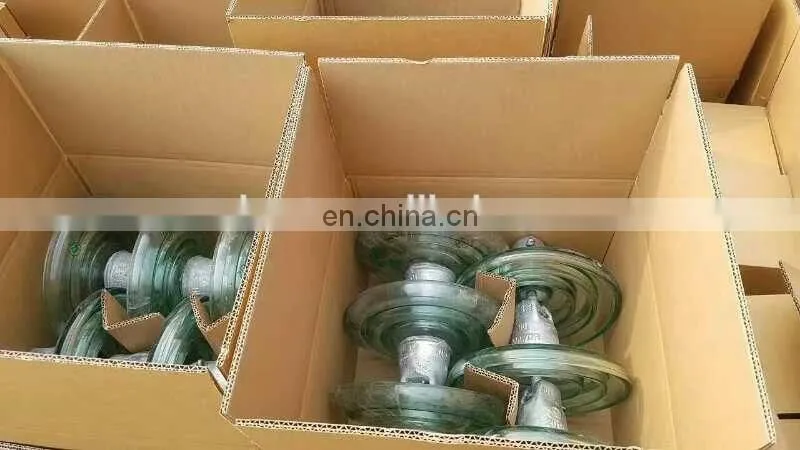

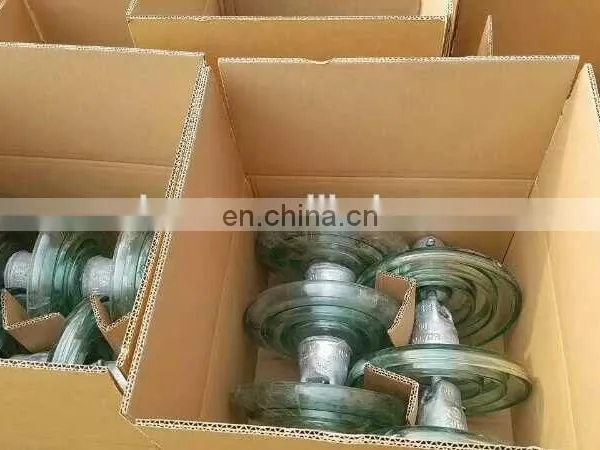

The LXP-120 insuator package:
