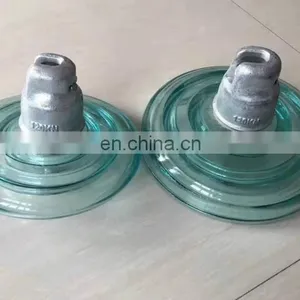

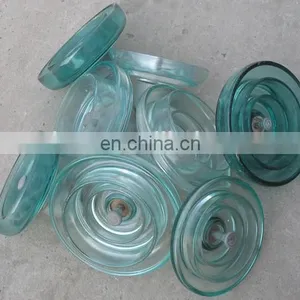

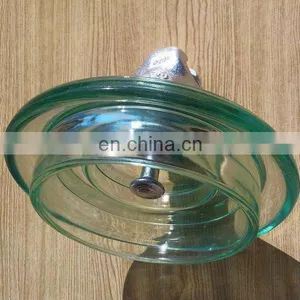

Help Center2021 Year Medium Voltage Toughened Glass Insulator LXP-40 Glass Insulator
Related Products
-
High Voltage Toughened LXP- 70 Glass InsulatorNegotiableMOQ: 1 -
2020year Good Quality China High Quality Glass Insulator LXAP-70NegotiableMOQ: 1
-
2021 Year Hot Sale Toughened Glass Insulator U120BP for KazakhstanNegotiableMOQ: 1
-
China High Quality Glass Insulator LXDP-70/100NegotiableMOQ: 1
-
Toughened Glass Diss Suspension Insulator U70BSP for UzbekistanNegotiableMOQ: 1

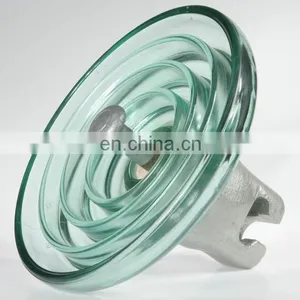

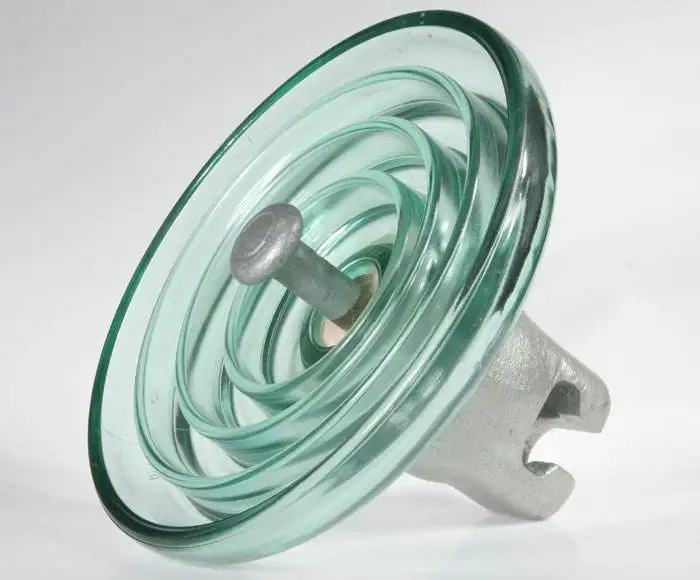

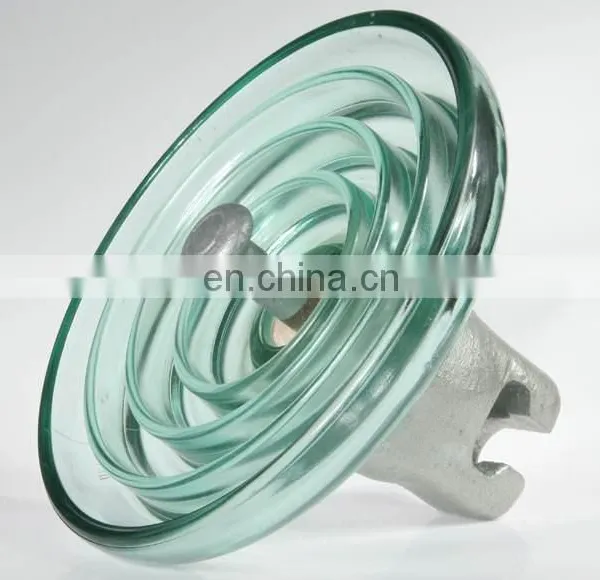

Toughened glass insulator LXP-40 glass insulator:
type LXP-40
Domestic designation LXY-40
IEC standard insulator U40B/110
Mini mechanicatl failing load 40KN
H Spacing H 110mm
D Diameter D 178mm
L Creepage L 185mm
Ball snd socket soupling 11
Stainless steel security clip W
power frenquency withstand
voltage for unit 150KV/25KV
lighting impulse withstand
voltage for unit 380KV/50KV
power frenquency puncture voltage 90KV
Rodio infulence voltage 50uV
Electric iron visual test 18KV/20KV
Impulse puncture voltage 2.8p.U
power frenquency electric arc voltage 0.12s/20KV
Net weight per unit 2.1
