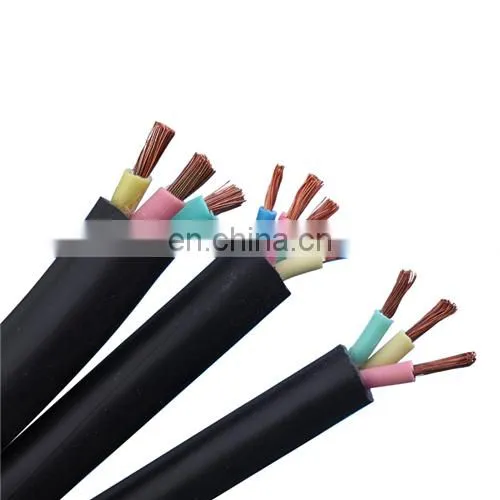

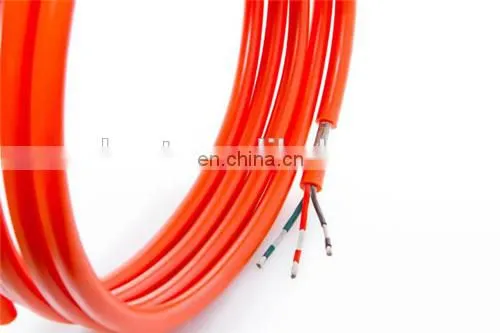

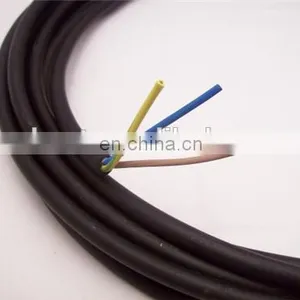

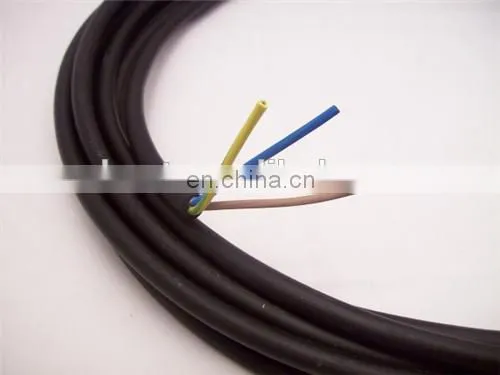

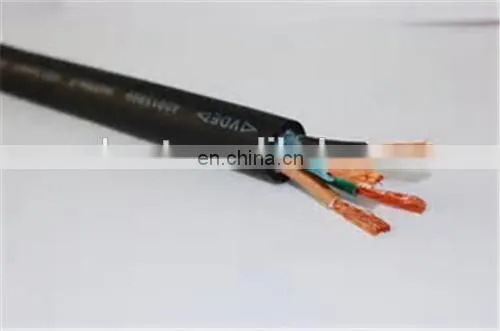

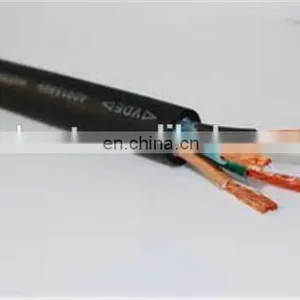

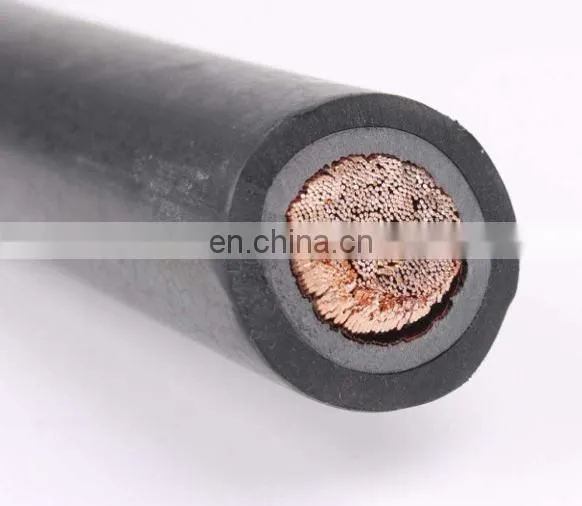

Universal Rubber Flexible Cable
First: Implemented standard
GB5013-1997(The rated voltage of Rubber insulate cable is 450/750v and under that), JB8735-1998 (The rated voltage of Rubber insulate cable and flexible cable is 450/750and which is under that)
Second: Application characteristics
The allowed long-term working temperature of the cable is 60°C
Third: cable type
|
Type |
Name |
Application |
|
245IEC53(YZ) |
Common Rubber Flexible Cable |
Used in the all kinds of movable electrical appliance or instrument |
|
245IEC57(YZW) |
Common Chloroprene Rubber sheathed Flexible cable |
|
|
YZ YZW |
Medium Type Rubble Sheathed Flexible cable |
Used in the all kinds of movable electrical appliance which can bear bigger external force of machine |
|
245IEC66(YCW) |
Heavy Type Rubble Sheathed flexible cable for Using Outdoor |
|
|
YC |
Heavy Type Rubber Sheathed Flexible cable |
|
|
YCW |
Heavy Type Rubber Sheathed Flexible Cable for Using Outdoor |
Forth: Specification
|
Type |
Rated voltage(v) |
No. of cores |
nominal cross-section |
|
245IEC53(YZ) |
300/350
|
2, 3, 4, 5 |
0.75-2.5 |
|
245IEC57(YZW) |
2, 3, 4, 5 |
0.75-2.5 |
|
|
YZ YZW |
2, 3, 4, 5 |
4-6 |
|
|
4(three in bigger and one in little ) |
1.5-6 |
||
|
0.75-6 |
|||
|
245IEC66(YCW) |
450/750 |
1 |
1.5-400 |
|
2 |
1.0-25 |
||
|
3 |
1.0-95 |
||
|
4 |
1.0-150 |
||
|
5 |
1.0-25 |
||
|
YC |
1 |
1.5-400 |
|
|
2 |
1.5-95 |
||
|
3,4 |
1.5-150 |
||
|
5 |
1.5-25 |
||
|
4(three in bigger and one in little ) |
2.5-150 |
||
|
YCW |
2 |
35-95 |
|
|
|
3 |
120-150 |
|
|
|
4(three in bigger and one in little ) |
2.5-150 |
Please contact me freely; maybe I’ll give you a big surprise. ^.^
