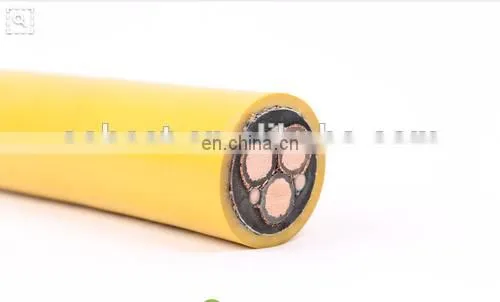

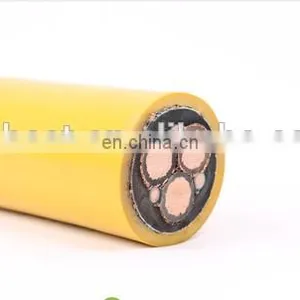

Help CenterASTM Standard Power Cable H07RN-F and Rubber Cable
Related Products
-
Hot !!! H07RN-F Rubber Copper CableNegotiableMOQ: 1 -
Hot Selling Soft Sheathed Rubber Cable H07rn-fNegotiableMOQ: 1
-
Chinese Rubber Double Insulated Cable for South AmericaNegotiableMOQ: 1
-
Submersible Pump H07RN-F CableNegotiableMOQ: 1
-
Hot Sale Factory Direct RUBBER POWER CABLE for GreeceNegotiableMOQ: 1
rated voltage:450/750V
cores: 1~6
conductor: copper, 5th od HD383
insulated: temperature: -35~95 degree
Application:
These rubber-sheathed cables are intended for applications of medium load in dry, moist and wet rooms, for outdoor equipment such in agricultural and industrial applications and locations with associated fire hazards. These cables are also used for large cooking vessels, hot-plates, hand-held lighting fixtures, electric tools such as circular saws, drills, handyman tools as well as for portable motors or machinery at building sites, also used for permanent installation.
|
H07RN-F power cable struction |
|||||
|
Conductor section:1.0-6.0mm2 Rated voltage:450/750v |
|||||
|
Part no. |
Line core number and conductor nominal section |
Norminal thinkness of insulation(mm) |
Norminal thinkness of sheath (mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω/km) |
|
110230 |
1x1.5 |
0.8 |
1.4 |
6.00±0.1 |
13.3 |
|
110231 |
1x2.5 |
0.9 |
1.4 |
6.60±0.1 |
7.98 |
|
110234 |
2x1.0 |
0.8 |
1.3 |
8.60±0.2 |
19.5 |
|
110235 |
2x1.5 |
0.8 |
1.5 |
9.60±0.2 |
13.3 |
|
110236 |
2x2.5 |
0.9 |
1.7 |
11.40±0.3 |
7.98 |
|
110237 |
2x4.0 |
1.0 |
1.8 |
13.40±0.4 |
4.95 |
|
110238 |
2x6.0 |
1.0 |
2.0 |
15.6±0.4 |
3.30 |
|
110239 |
3x1.0 |
0.8 |
1.4 |
9.2±0.2 |
19.5 |
|
110240 |
3x1.5 |
0.8 |
1.6 |
10.3±0.3 |
13.3 |
|
110241 |
3x2.5 |
0.9 |
1.8 |
12.00±0.4 |
7.98 |
|
110242 |
3x4.0 |
1.0 |
1.9 |
14.40±0.4 |
4.95 |
|
110243 |
3x6.0 |
1.0 |
2.1 |
16.80±0.5 |
3.30 |
|
110244 |
4x1.0 |
0.8 |
1.5 |
10.30±0.3 |
19.5 |
|
110245 |
4x1.5 |
0.8 |
1.7 |
11.30±0.4 |
13.3 |
|
110246 |
4x2.5 |
0.9 |
1.9 |
15.30±0.4 |
7.98 |
|
110247 |
4x4.0 |
1.0 |
2.0 |
15.90±0.4 |
4.95 |
|
110248 |
4x6.0 |
1.0 |
2.3 |
18.60±0.5 |
3.30 |
|
110249 |
5x1.0 |
0.8 |
1.6 |
11.30±0.3 |
19.5 |
|
110250 |
5x1.5 |
0.8 |
1.8 |
12.50±0.4 |
13.3 |
|
110251 |
5x2.5 |
0.9 |
2.0 |
14.60±0.4 |
7.98 |
|
110252 |
5x4.0 |
1.0 |
2.2 |
17.80±0.4 |
4.95 |
|
110253 |
5x6.0 |
1.0 |
2.5 |
20.60±0.5 |
3.30 |
|
110254 |
6x1.5 |
0.8 |
2.5 |
14.90±0.4 |
13.3 |
|
110255 |
6x2.5 |
0.9 |
2.7 |
17.40±0.4 |
7.98 |
|
110256 |
6x4.0 |
1.0 |
2.9 |
20.70±0.5 |
4.95 |
We can produce products as your requirement.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
