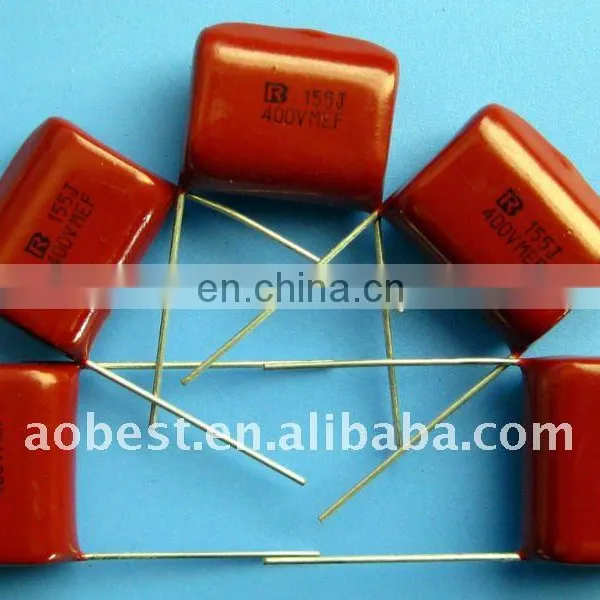

CL21 Metallized Polyester Film Capacitor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NHXMH-O / NHXMH-J (XLPE Insulated, HFFR Sheathed Multicore Cables)NegotiableMOQ: 1 -
H03Z1Z1-F /H05Z1Z1-F (XLPE Insulated, HFFR Sheathed Flexible Multicore Cables)NegotiableMOQ: 1
-
Good Quality Flat Twin and Earth CableNegotiableMOQ: 1
-
Hot Sale PVC Flat Twin and Earth CablesNegotiableMOQ: 1
-
H01RN-F Flexible Electric Rubber CableNegotiableMOQ: 1
MPE Metallized Polyester Film Capacitor CL21
FEATURE
High stability of capacitance and DF versus temperature and frequency.
Special series construction for high voltage and longterm ablity
High pulse rise rate(du/dt) and suitable for large current circuit
Special series construction for high voltage and longterm ablity
High pulse rise rate(du/dt) and suitable for large current circuit
SPECIFICATIONS
| Reference Standard | GB7335 |
| Temperature Range | -40--+85ºC |
| Capacitance Tolerance | J=±5%,K=±10% |
| Capacitance Range | 0.01--10.0uf |
| Voltage Proof | 1.5UR(5S) |
| Dissipation Factor | ≤1.0%(20ºC,1KHz) |
| Insulation Resistance | ≥7500MΩ CR≤0.33µF |
| ≥3000SCR>0.33µF(20,1min) |
