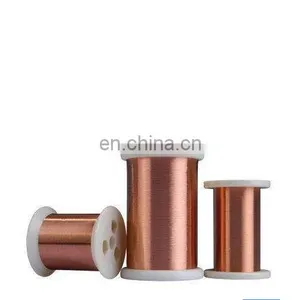

CCAM 0.12mm 0.15mm 0.2mm 0.4mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Medium Intensity LED Aviation Obstacle LightsNegotiableMOQ: 1 -
VFD Cable 3conductorxAWG4/0 With Ground CableNegotiableMOQ: 1
-
H07RN-F 4X14AWG High Quality Rubber Insulated Flexible Power CableNegotiableMOQ: 1
-
High Quality H07RN-F 2x8AWG High Quality Rubber Insulated Flexible Power CableNegotiableMOQ: 1
-
Best Price H07RN-F 4xAWG8 High Quality Rubber Insulated Flexible Power CableNegotiableMOQ: 1

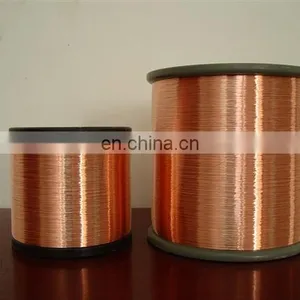

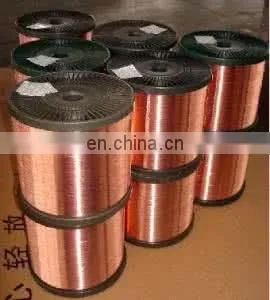

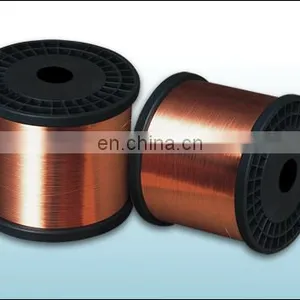

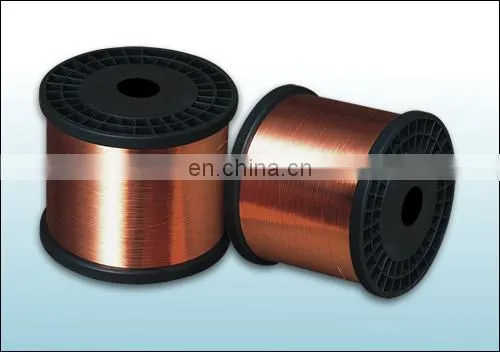

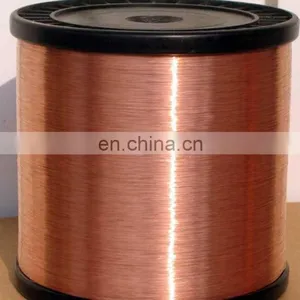

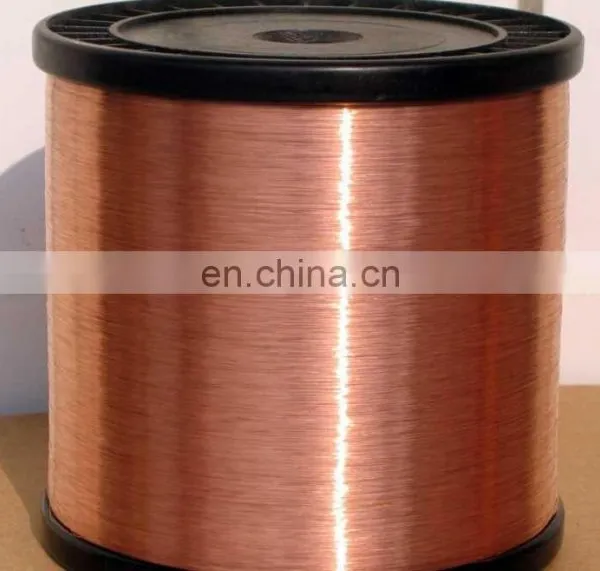

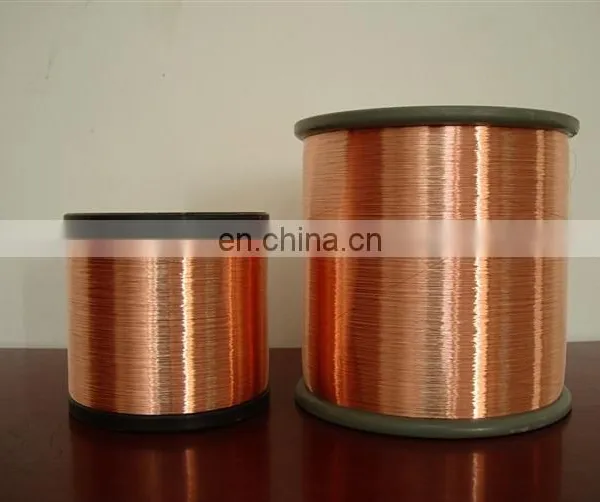

Bare CCAM Copper Clad Aluminum Magnesium Wire
CCAM Wire
1. Copper clad aluminum magnesium wire
| Property | Conductor | ||||
|
CCA wire |
CCAM wire |
CCA(plating) wire |
CCAM(plating) wire |
Copper wire |
|
(%)Copper volume |
15 | 13-17 | 3-10 | 3-10 | 100 |
| (g/m³)Specific gravity | 3.63 | 3.61 | 2.85 | 2.85 | 8.89 |
| Length compared to copper wire | 2.5 : 1 | 2.5 : 1 | 3.2 : 1 | 3.2 : 1 | 1 : 1 |
| (%IACS)Conductivity | 65% | ±50% |
62%-65% | 37%-50% | 100% |
| (Ωmm²/m)Dc resistivity | 0.02651 | 0.02857 | 0.027 | 0.047 | 0.01724 |
| (Mpa)Tensile Strength | 95-135 | 220-251 | 100-130 | >250 | 215-256 |
| (%)Elongation | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
