XA7140 Universal Bed Type Milling Machine with high quality and complete qualification
Product Description

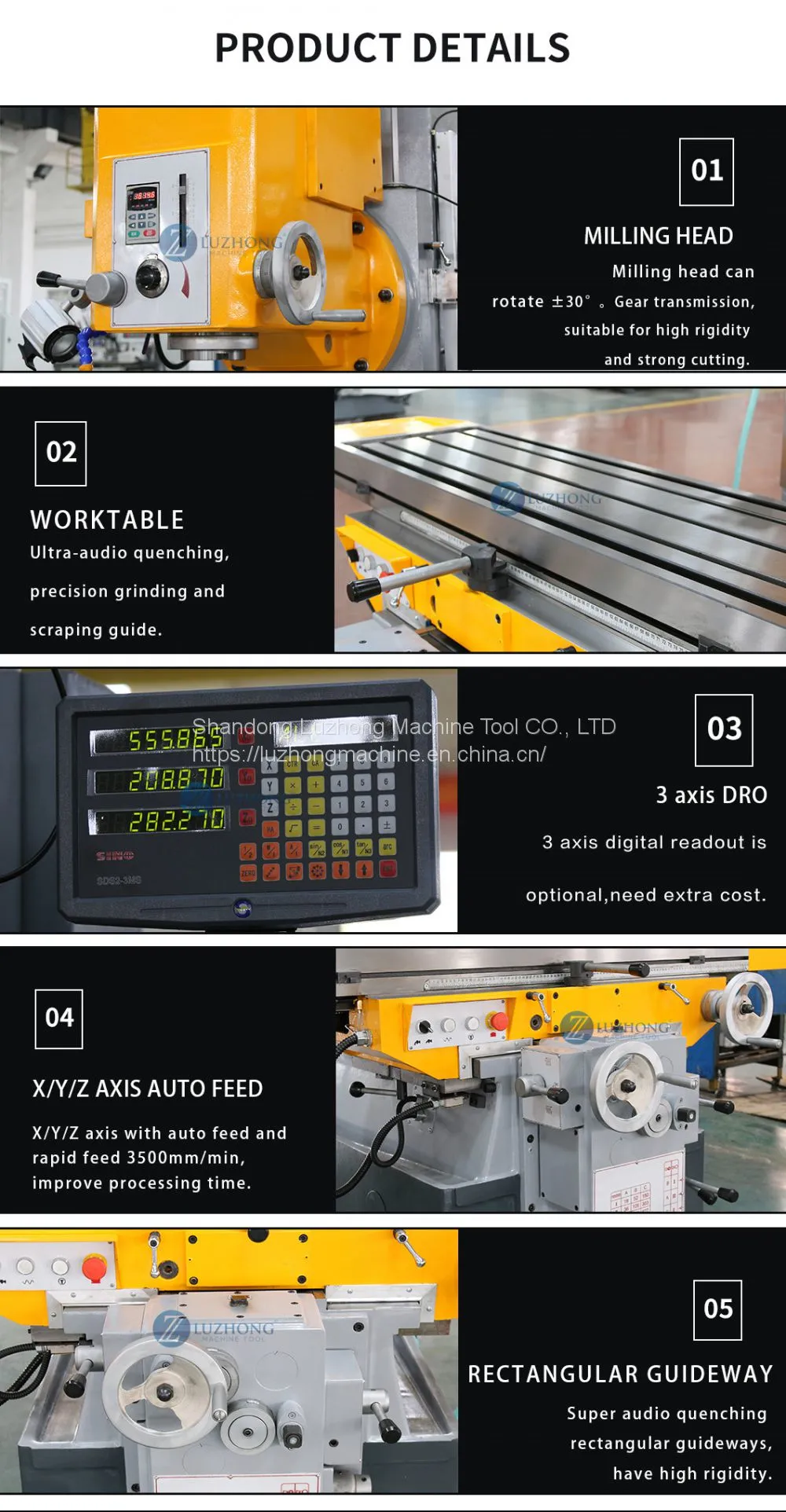

The main performance characteristics：
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.

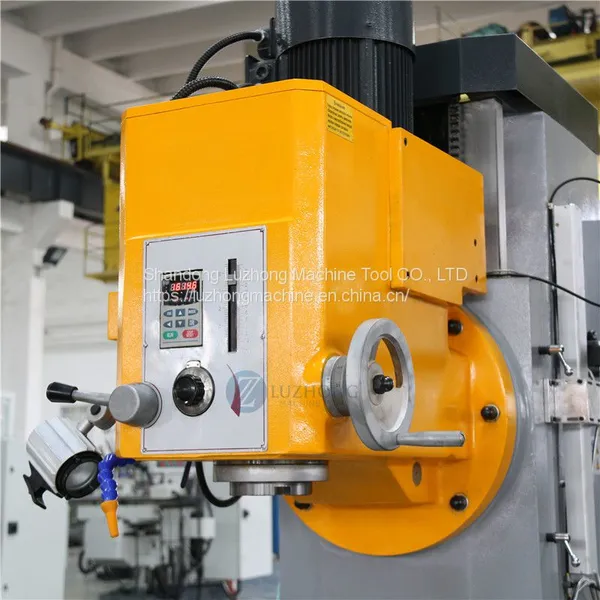

Milling head can be rotated 30 degrees,
Import frequency conversion and frequency conversion technology to make the spindle more convenient
Application：
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Parameters
Specifications |
Units |
XA7140 |
Table size |
mm |
1400x400 |
Table stroke |
mm |
800x400 |
T-type slot numbers/width/space |
mm |
3-18-100 |
Max. load working table |
kg |
800 |
Distance from spindle axis to column guide way |
mm |
520 |
Distance from spindle nose to table surface |
mm |
150-650 |
Spindle taper |
ISO50 |
|
Spindle quill travel |
mm |
105 |
Spindle speed range |
rpm |
18-1800 |
Spindle motor power |
KW |
7.5 |

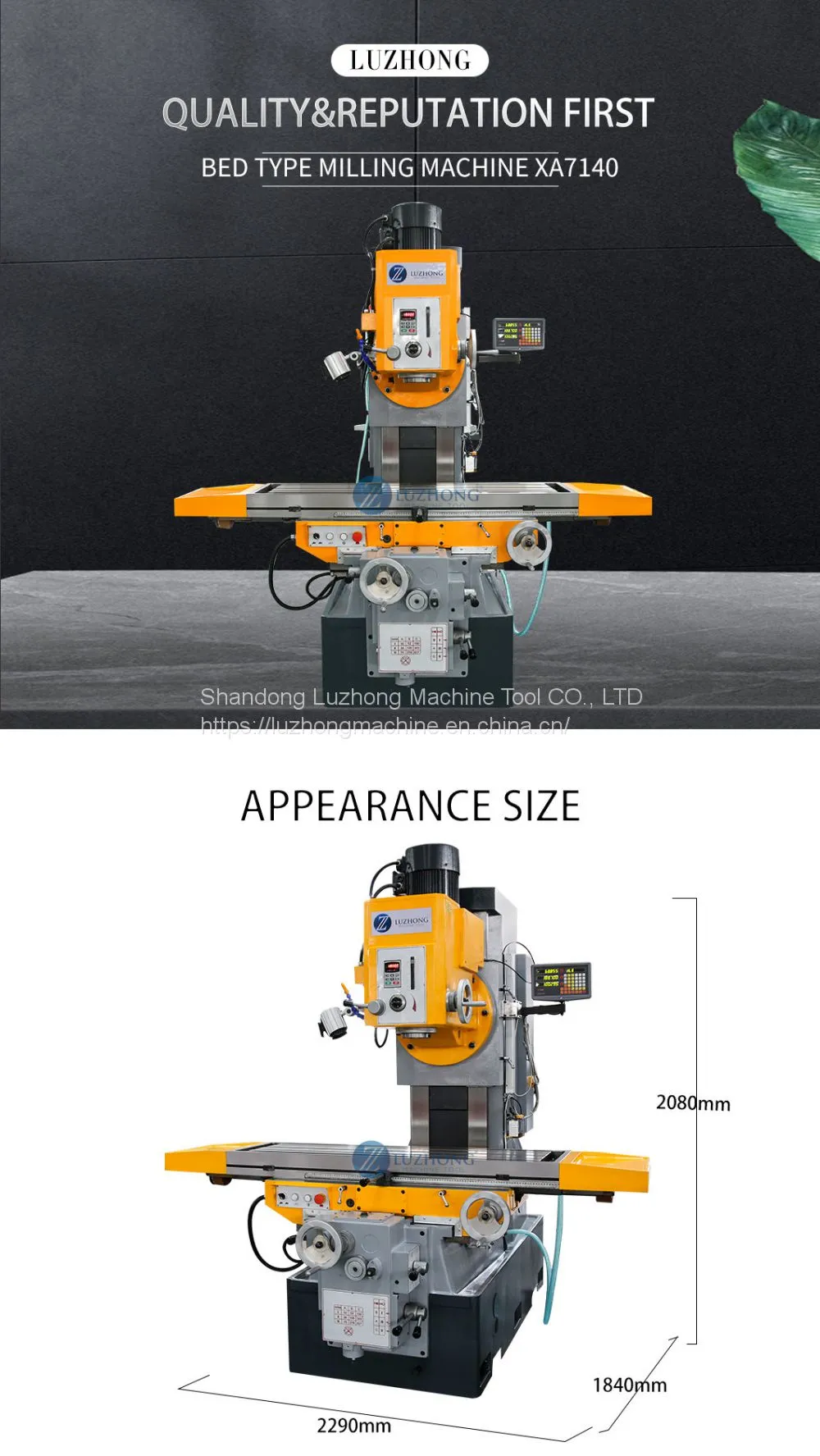

Overall dimensions |
mm |
2290x1840x2080 |
Machine weight |
Kg |
3860 |
Detailed Photos
