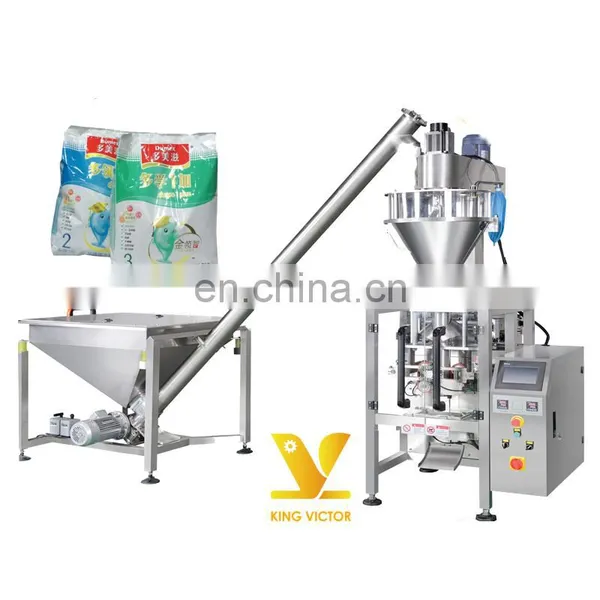

VFFS nitrogen flushing automatic coffee/milk powder packing machine price
What is Our Advantage?
1.Well and High Quality Control
2.Competitive Prices Automatic vertical form fill seal VFFS packing machinery
3.Small Order Acceptable
4.ODM Accepted
5.OEM Accepted
6.Tailor-made Product
More advantages waiting for your discovery!
go ! Below:
What is the Funtion of powder Packing Machine?
1.Computer PLC control and automatic alarming function
2.English or Chinese screen display, easy operation.
2.High-sensitivity photoelectric eye color tracing.More accuracy.
3.Bag typecan be customised to 4 sides sealing, pillow bag ,and gusset bag.
4.Packaging material :Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper&ect.
5. Famous brand components, ensure the quality and durability of machine.
6. Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
7. Ribbon code printer, link-bag device is option
8. Imported system of pulling film ad color mark sensor enable accurate positioning, beautiful packaging and excellent performance
What is Specification of Packing Machine?
We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.
|
Packaging Machine Specifications: |
|
|
Model |
KV-520DZ |
|
Measurement |
Auger |
|
Sealing Type |
Back sealing bag /gusset bag(optional ) |
|
Horizontal Sealing |
Netted Line / Straight Line |
|
Cutting |
Tooth Cut |
|
Measurement Range |
150~2000ml |
|
Packaging Rate |
30~80 bags/min |
|
Bag Width |
80~250mm |
|
Bag Length |
80~350mm |
|
Film Roll Width |
520mm(Max.) |
|
Film Roll Diameter |
300mm |
|
Bag Pulling |
Servo Motor Bag Pulling |
|
Power |
220V,50HZ,3KVA |
|
Machine Size |
3574*2166*2560mm |
|
Machine Weight |
1000KG |
More Details of coffee powder PAcking Machine Showing:
(Of Cource, Welcome you to Visit Our Factory!)

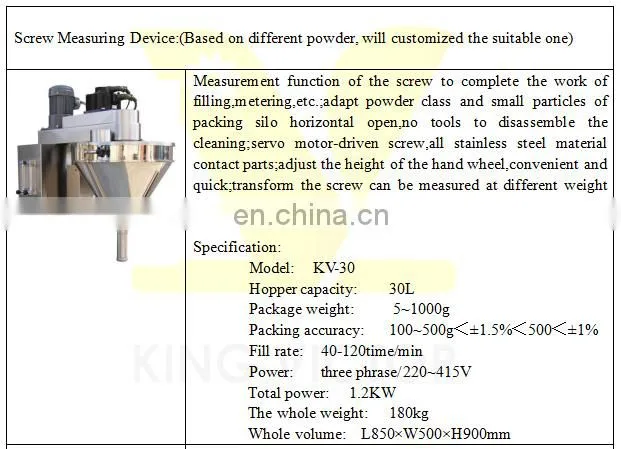

1.Auger measring detals:

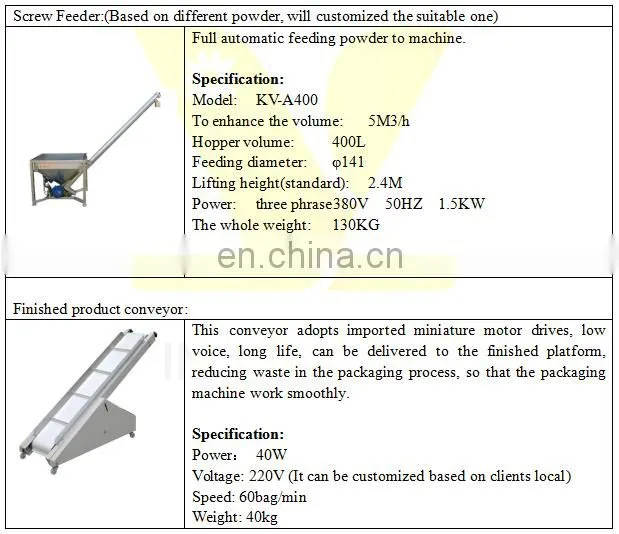

2.Customized Hoist: (Based on different product, will customize the suitable one.)
What Brand Electronic Staff used?
BiG Brand of Electronic Accessories:
Nitrogen flushing machine:
1.Process Principle:
When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and absorptive capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is compressed to 0.8~1.0MPa, air source enters in pressure-swing absorption tower for separation after being purified through dry and oil-water separation process (filter). Oxygen molecules are diffused and absorbed in carbon molecular sieve under pressure. Non-absorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization.
2.Process Flow Diagram of PSA Nitrogen Generator:
3.The whole nitrogen generator is made up of five systems:
1. Air-source supply system (air compressor and air tank);
2. Air purification system (active carbon filter etc);
3. Oxygen and nitrogen separation system (absorption tower, tube and electromagnetic valve);
4. Measurement and detection system (product storage tank, flowmeter and measurement analyzer);
5. Control system (computer controller);
More optional device can be choosen..
1.Optional Function:
1. Hole punch device 2. Tear notch device
3. Link bag device 4. Flip device
5. Gusset bag 6. Dust collected device
7. Static charge Eliminator 8. PE bag device
2.Optional External Device:
1. Air Compressor
2. Check weigher
3. Metal detector
4. Nitrogen machine
We will meet your requirement,pls do not hesitate to contact us...
Dear Friends,
Know More details or video as reference, pls feel free to contact Livia.
Tel: 0086 757 8671 0076
Mob/whatsapp: 0086 159 9202 3018
System Engineering Cases as for your refernce:
What kind of products can used this type Packing Machine?
Applications:
Model KV-520DZ is suitable for Powder who need plastic bag packaged.
For example:
*Detergent/washing Powder
*Fish Powder
*Anti-Baterial Powde
*drug powder
*Coffee Powder
*Milk Powder
*Flour
etc...
powder food Samples:
Packaging & shipping
Packaging :
- Standard Export Plywood case: 5 Caces
- Total Size (CBM): 7.50 CBM
We will according the size of packaging machinery to made of case, and ensure the safe of the packaging machinery.
Shipping:
- Upon receipt of payment , delivery date will be in 20-35 working days.
- By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way and the weight of the goods.
- European Countries: 22-28 days.
- United States: East --13-16 days, West--21-28 days.
- Brazil: 30-40 days.
- Russia: 36 days.
- Asia Countries: 3-5days.
King Victor are not only selling our machines to you ,we also do the best service for our customers.
WELCOME TO VISIT KingVictor "HOME"
Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.
- What is your packing product?
- How many gram per bag?
- What is bag size(the width ,length)?
- What is voltage and Hertz in your local?
We are looking forward to hearing from you soon.
If you want to design the special packing machine, we can manufacture the packing machine as your requirements.
