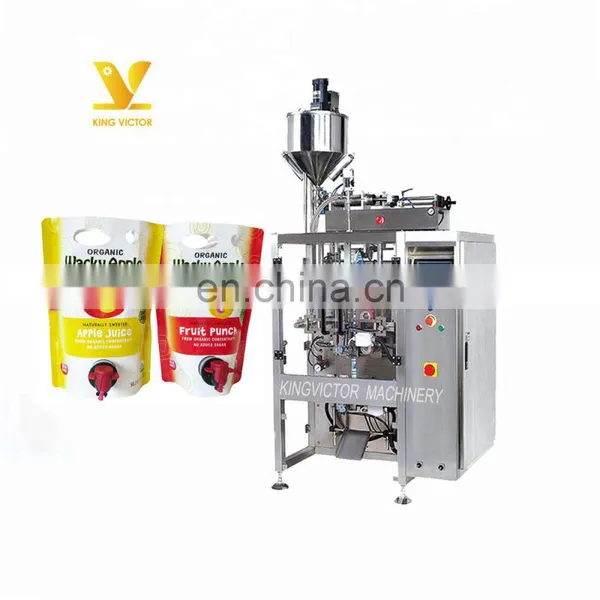

Juice Pouch Filling and Packing Packaging Machine
1.Hopper
(1)Automatic feeding and stop automation feature
(2)Save time and labor.
2.Injection Pump
(1)The machine uses compressed air to control the drive ,a high degree of safety
(2)The use of pneumatic controls and mechanical positioning,so fllling
high-precision accuracy can be controlled to ± 0.5%
3.Touch Screen
(1) PLC controlling system, intelligeny control, self-correction,operate more steadily
(2) Using PID temperature controller, make
heat balance better
4.Machine Host
(1)More suitable for packaging various materials
(2)Automatic correction function, save time, labor, film, more intelligent operation
(3)Dual encoders for more stable performance
5.Conveyor
(1)Convenient for transportation of finished products
(2)Reduce labor costs
(3)Reduce the impact on the finished products
What kind of products are feasible for this type of Packing Machine?
Applications:Suitable for packaging laundry liquid, soy sauce, vinegar, milk, mineral water, edible oil, fruit juice, carbonated beverage, chemical liquid, liquid pesticide, insecticide, ect.
We have several Models.
Don't Worry! We can customize the suitable one for you according to your requirement.
Just Tell us : Weight or Bag Size required.
Model |
KV-320YD |
KV-420YD |
KV-520YD |
KV-620YD |
KV-720YD |
KV-820YD |
Packaging
Speed
|
1-80Bags/min |
1-80Bags/min |
1-80Bags/min |
1-80Bags/min |
1-80Bags/min |
1-80Bags/min |
Power Specifications |
220V,50/60Hz |
220V,50/60Hz |
220V,50/60Hz |
220V,50/60Hz |
220V,50/60Hz |
220V,50/60Hz |
Bags Width |
50-150mm |
60-200mm |
80-250mm |
100-300mm |
100-350mm |
120-400mm |
Bags Length |
80-240mm |
80-300mm |
80-350mm |
100-450mm |
100-450mm |
120-550mm |
Equipment Power |
2Kva |
2.2Kva |
3Kva |
3.4Kva |
3.6Kva |
3.8Kva |
Multi Heads
1.Providing professional installation instructions and video of troubleshoot.
2.Providing machine control software updates and operation teaching in our factory.
3.Two years free maintenance for touch screen,inverter,PLC,temperature controler,photoelectric sensor with freight prepaid.
4.Engineers available to service the machinery overseas,buyers pay 100 US dollars daily service fees and travel expenses.
5.Pick-up services at BAIYUN airport,providing packaging solutions and testing material on machines,full refund if unsatisfied with the machine.
