Single Phase Active Positive And Negative Energy Measurement ADL10-E

Single Phase Active Positive And Negative Energy Measurement ADL10-E thumbnail-1
Single Phase Active Positive And Negative Energy Measurement ADL10-E thumbnail-2
Single Phase Active Positive And Negative Energy Measurement ADL10-E thumbnail-3
Single Phase Active Positive And Negative Energy Measurement ADL10-E thumbnail-4
Single Phase Active Positive And Negative Energy Measurement ADL10-E thumbnail-5
Single Phase Active Positive And Negative Energy Measurement ADL10-E photo-1

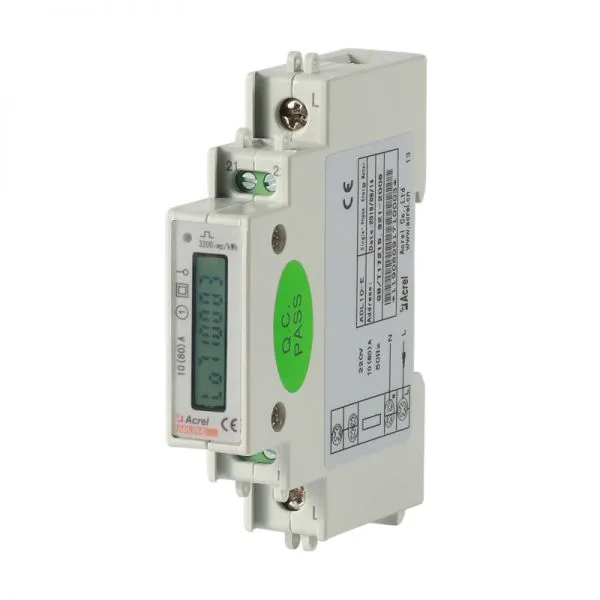

Single Phase Active Positive And Negative Energy Measurement ADL10-E photo-2
Single Phase Active Positive And Negative Energy Measurement ADL10-E photo-3
Single Phase Active Positive And Negative Energy Measurement ADL10-E photo-4
Single Phase Active Positive And Negative Energy Measurement ADL10-E photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADL10-E
Contact Supplier Request Quote Chat Now
Acrel Electric Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number ADL10-E
Phase Single Phase
Operating Temperature -25℃~55℃
Dimensions 18mm*96 mm*70mm
Accuracy Class Class 1
Measuring Energy Range 0-999999.9kWh

ADL din rail electric energy meter is with mini size,high accuracy,and it is easy to install.

ADL energy meters can measure electric energy with electrical pulse output function,and also can set

parameters of clock,rate period and so on.

Data can be exchanged between energy meter and super ordinary machine via RS 485 interface.

It is suitable to measure electrical parameters in government and buildings. It can also be used in energy management systems.


Characteristics


Main Functions



  • Suit for 230V  or 120V AC low voltage system

  • Input current:10(60)A

  • Measure and display  U,I,P,Q,S,PF,kWh,kvarh

  • 8 bits LCD display by turns

  • Communication(Optional): Modbus-RTU RS485


Dimensions and Wirings










Solutions and Applications


Datasheet


Voltage
Reference voltage
AC 220V
Reference frequency
45-65 Hz
Consumption
Current
Maximum
60A
Starting current
0.004 Ib
Consumption
Measurement performance
Accuracy of active kWH
Class 1
Standards complicant
IEC 62053-21:2003
Pulse
Pulse width
80+20 ms
Pulse constant
3200 imp/kWH
Communication
Interface
RS485
Protocol
Modbus-RTU
Outling
L*W*H(mm)
18*88*70
Environment
Temperature
Operating:-25℃~55℃；Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
