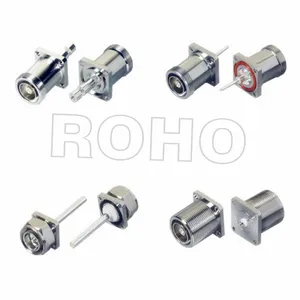

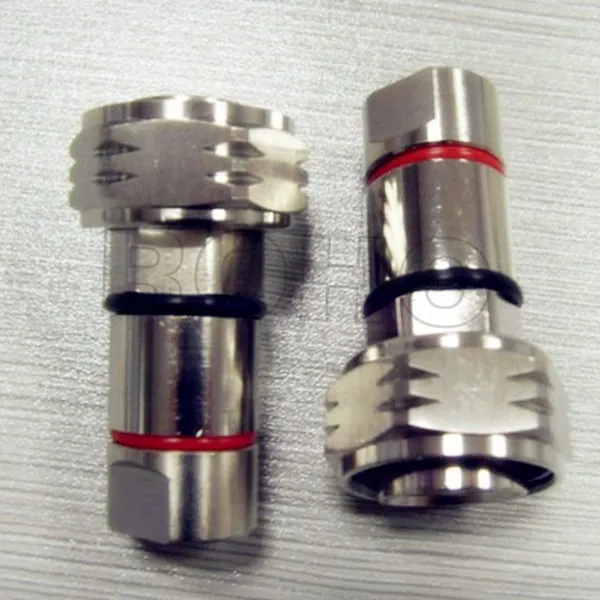

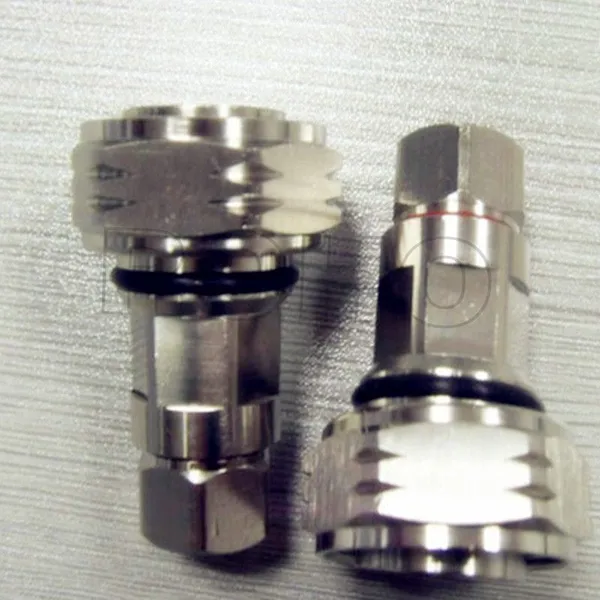

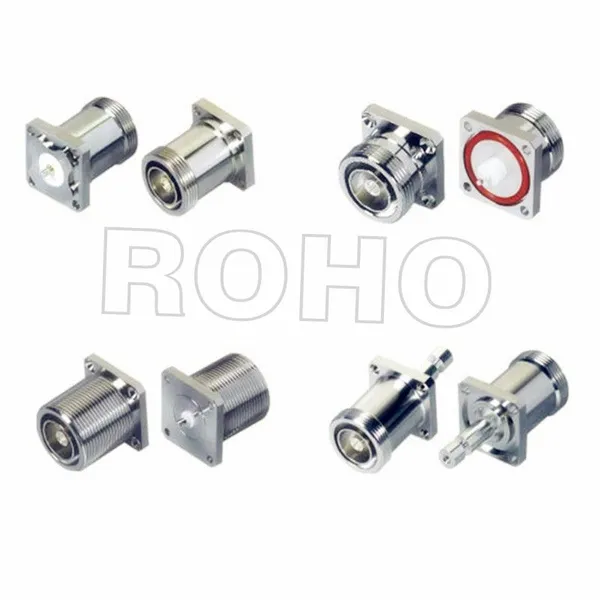

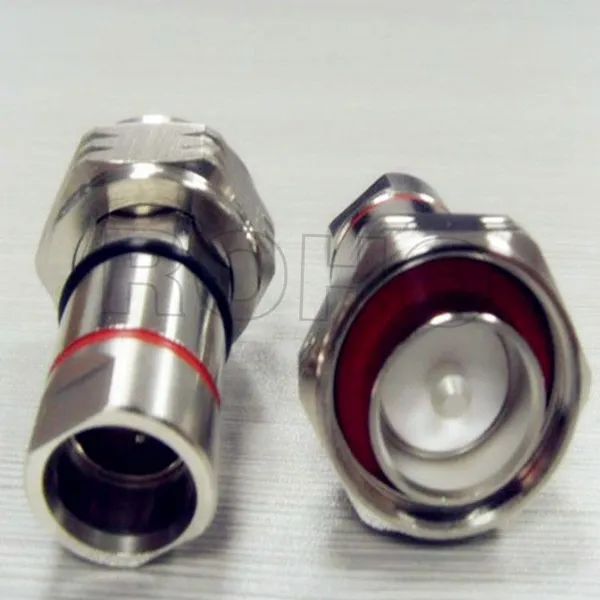

Low Pim RF Coaxial DIN 7/16 L29 Connector for Coaxial Cable
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ROHO
Place of Origin:
China
Model Number:
din, 7/16
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB ConnectorsUS$ 1 - 10MOQ: 1 Piece -
High Quality Ipex/Ufl/Mhf RF Coaxial Connector With Cable for PCB MountUS$ 1 - 10MOQ: 1 Piece
-
Straight BNC Female Jack to Ufl With Rg178 Cable Assemblies AntennaUS$ 1 - 10MOQ: 1 Piece
-
Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 CableUS$ 1 - 10MOQ: 1 Piece
-
2-Way Splitter N Female Power Splitter 700-2700MHz-4dB Power SplitterUS$ 1 - 10MOQ: 1 Piece
Brand Name
ROHO
Place of Origin
China
Model Number
din, 7/16
Type
DIN
Application
RF
Gender
Female
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency Range | 0-7.5GHz |
| Dielectric withstanding voltage (at sea level) | 4000 V RMS,50Hz |
| Working voltage (at sea level) | 2500 V RMS,50Hz |
| Insulation resistance | ≥ 100000 mΩ |
| Contact resistance | Inner conductor:≤0.4mΩ |
| Outer conductor:≤1.5mΩ | |
| RF leakage (at 1 GHz) | ≥128dB |
| MECHANICAL DATA | |
| Coupling nut torque | Recommended:25Ncm--30Ncm / 221 in.Lbs--260 in.Lbs |
| Proof torque:35 Ncm / 310 in.Lbs | |
| Coupling nut retention force | ≥1000N / 225.0 lbs |
| Contact captivation | ≥200N / 45.0 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--ternary alloy plating |
| Pin contacts | Brass--Au/AG plating |
| Socket contacts | Phosphor bronze / Beryllium copper--AG plated |
| Crimp ferrules | Copper--ternary alloy plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
