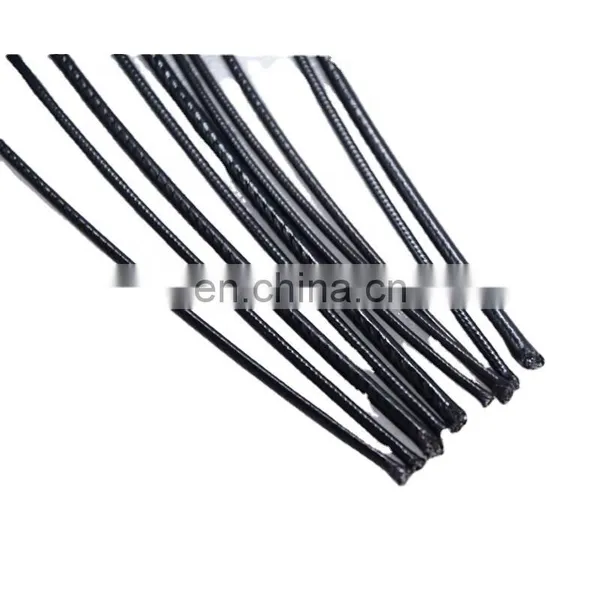

Wholesale 7*7 Motorcycle Auto Truck Clutch Throttle Gear Control Cable Steel Galvanized Wire Rope Manufacturers
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Control Cables Stainless Steel Wire Rope Galvanized Steel Wire 1*19 7*7 CD70 Brake Cable Inner Wirewith Die CastingNegotiableMOQ: 1 -
Control Cable Inner Wire Gear Wire 1*19 7*7 7*19 With PA CoatingNegotiableMOQ: 1
-
Three Wheeler Motorcycle Gear Cable Inner Wire 1.7mm*2.67m/1*19/6*7NegotiableMOQ: 1
-
Hot Sale Customized Auto Control Cables Stainless Steel Wire Rope Galvanized Steel WireNegotiableMOQ: 1
-
Wholesale Good Quality CD70 Clutch Cable Inner Wire With Die Casting Head 7*7galvanized Steel WireNegotiableMOQ: 1
Product description-
ITEM |
Wholesale 1*19 7*7 motorcycle auto truck clutch throttle gear control cable steel galvanized wire rope |
||||
MATERIAL |
1.Galvanized steel wire rope. ated PVC/PE /Teflon/Rubber/SLPE) High carbon steel with bigger braking load 3.Armed inner wire 4.gear inner wire |
||||
Structure |
1)joint :7x7,7x19 2)Rolling :1x19,1x12 3)Shift inner wire (1+14), injection molding inner wire , speedometer and so on |
||||
Diameter |
1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 1.8mm, 1.9mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm |
||||
Colour |
Injection molding inner wire and hose can be divided into many colors. Mainly in gray. |
||||
Application |
Motorcycle cable .auto cable, and other tractor, truck cables.We can also sell it into pieces with head and plastic outer. |
||||
Character |
1. 1*19 structure is hard than 7*7, used for goes smooth,Use the frequency is not high cable.After PVC coating, Increased life expectancy. Increased efficiency, increased sliding resistance. Use for Brake cable, Throttle cable,Bonnet cable. 2.7*7 Structure is soft than 1*19,and Life expectancy is higher than 1 * 19.For bending more,After PVC coating, Increased life expectancy. Increased efficiency, increased sliding resistance. the use of high frequency cable,Accelerater cable,clutch cable. |
||||
Standard |
We can also sell it into pieces with head and plastic outer. |
||||
Packaging |
Usually packing in1,000m/coil, 2,000m, 500m/roll, We also followed a definite package as per customer's requirement |
||||
Braking load (KGF) |
1)1*12 1.2mm :155 2) 1*19 2.0mm:425 3)1*19 2.5mm:660 4)7*7 1.5mm:228
5)7*7 2.0mm:380 6)7*7 1.2mm:146 7)1*19 1.9mm:385 8)1*19 1.6mm:296 |
||||
Tensile strength |
1870Mpa |
||||
OEM |
Application |
AUTO CLUTCH CABLE |
||||
Certification |
IATF16949:2016 |
Colour |
Black or customizable |
|||
Character |
Smooth,Tough and Durable |
Sample |
Avalible |
|||
Size |
OEM standard or customizable |
Market |
GLOBAL |
|||
MOQ |
100 pices |
Brand |
CRUBEST |
|||
Payment ways |
TT/LC/Paypal/Insurance |
Port |
Tianjin/Ningbo/Shanghai |
|||
LIFT TIME TEST |
||||||
CABLE NAME |
PUSH & PULL TIMES |
|||||
REAR BRAKE CABLE |
150,000 |
|||||
FRONT BRAKE CABLE |
200,000 |
|||||
CLUTCH CABLE |
300,000 |
|||||
THROTTLE CABLE |
500,000 |
|||||
COMPONENTS GLAV. STANDARD |
||||||
GLAV. COLOUR |
THICKNESS OF GLAV. |
S.S.T |
||||
WHITE/YELLOW |
2μm |
12 TO 24 HOURS |
||||
4-5μm |
24 HOURS |
|||||
6μm |
48 HOURS |
|||||
BLACK |
2μm |
24 HOURS |
||||
4-5μm |
48 HOURS |
|||||
6μm |
96 HOURS |
|||||
PRODUCE CAPACITY |
||||||
Motorcycle cable |
Implementation Standard |
QC/T228.1-1997 |
||||
Production capacity |
1 million / month |
|||||
Auto cable |
Implementation Standard |
QC/T29101-1992 |
||||
Production capacity |
300,000 / month |
|||||
CABLE MIN BREAKING STRENGTH |
||||||
CABLE NAME |
CABLE INNER |
MIN BREAKING STRENGHT |
||||
CLUTCH CABLE |
1*19 |
2.0MM |
4.06KN |
|||
REAR BRAKE CABLE |
1*19 |
2.3MM |
4.86KN |
|||
FRONT BRAKE CABLE |
1*19 |
2.5MM |
6.01KN |
|||
THROTTLE CABLE |
7*7 |
1.5MM |
1.99KN |
|||
FAQ
1:You are a trading company or a manufacturer ?
We are manufacturer of cables from 1990 with TS16949.
2.How about your exporting experience?
We have started exporting from 2008,we have a very professional team.
3. Can you produce according to the samples?
Yes, we can produce by samples or technical drawings. Here we are a experienced factory ,we have a high ability to develop new products.
4.How do you control the quality?how we trust you?
Here we are running TS16949.we have our own QC department and our own test room , we test 100% before packing the goods .
5.Will you stop produce when government check environment ?
No. our company has passed environmental audit .
6. How to place an order?
We produce according to customers’ specifications,so please give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks Or give the excat OEM numbers .Welcome contact with us for more details.
We are manufacturer of cables from 1990 with TS16949.
2.How about your exporting experience?
We have started exporting from 2008,we have a very professional team.
3. Can you produce according to the samples?
Yes, we can produce by samples or technical drawings. Here we are a experienced factory ,we have a high ability to develop new products.
4.How do you control the quality?how we trust you?
Here we are running TS16949.we have our own QC department and our own test room , we test 100% before packing the goods .
5.Will you stop produce when government check environment ?
No. our company has passed environmental audit .
6. How to place an order?
We produce according to customers’ specifications,so please give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks Or give the excat OEM numbers .Welcome contact with us for more details.
