AC Current Transducer BD-AI Measuring 0-5A With 4-20mA Analog Output

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2003

Factory Size:

3,000-5,000 square meters

Acrel Electric Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

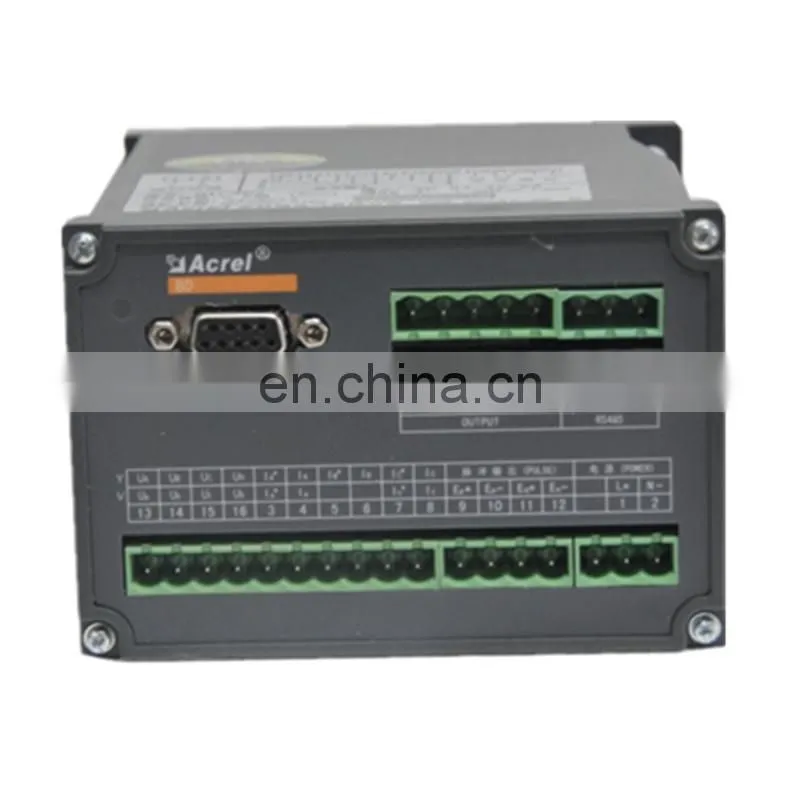

BD-AI

Single Phase AC Current Transducer

* Single phase AC current Measurement
* Overload: 1.2 times of rated value
* Analog Output DC 0-5V/0-10V/0-20mA/4-20mA

INFORMATION

Characteristic

Model: BD-AI

Current input: AC0-1A or 0-5A

Output: DC 0-5V/0-10V/0-20mA/4-20mA

Auxiliary power supply: AC85-265V/DC100-350V/DC24V/DC48V

Accuracy: class 0.5

Spec. and size

PARAMETER

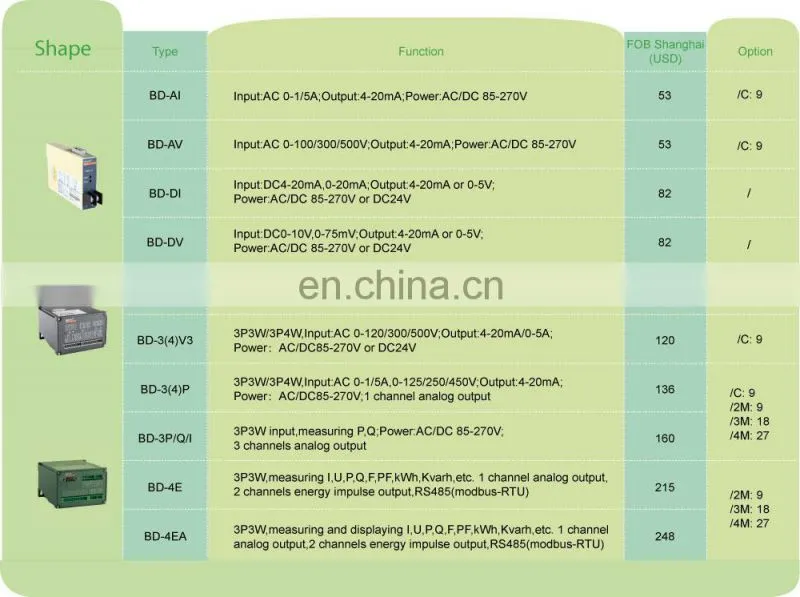

Type Technical parameters		BD-DI BD-DV	BD-TR BD-TRA		BD-AI BD-AV	BD-3I3 BD-3V3 BD-4V3	BD-3P BD-3Q BD-3P/Q/I	BD-4P BD-4Q BD-4P/Q/I	BD-3E BD-4E BD-4EA	BD-PF BD-F
Precision grade		0.5
Input	Signal	DC 4~20mA, 0~20 mA DC 0~10V, 0~75mV DC 0~300V		PT100	AC 0~1A,0~5A AC 0~120V,0~300V,0~500V		AC 1A,5A AC 100V,220V,380V
	Overload	Cerrent:1.2 times everlasting,10 times/1s instantaneousness Voltage:1.2 times everlasting,2times/1s instantaneousness
	Frequency	45Hz~65Hz
Output	Signal	DC 4~20mA,0~20mA,0~5V,0~10V
	Load	Current Output≤600Ω Voltage Output≥1000Ω
	Selected function	/	/		RS485 communicaton	/	RS485 communicaton
Power supply		AC 85V~265V/DC 100V~350V or DC24V	AC 85V~265V/DC 100V~350V		AC 85V~265V/DC 100V~350V or DC24V	AC 85V~265V/DC 100V~350V Or DC24V or DC48V	AC 85V~265V/DC 100V~350V
Temperature drift coefficient		Class 0.5 ≤200ppm/℃,class 0.2≤100ppm/℃
Response time		<400ms
Insulation resistance		≥100MΩ
Power frequency withstand voltage		the value of alternating current between the power supply, input and output: 2kV/1min
Environment	Temperature	operating temperature: -10℃ ~ +55℃ storage temperature: -25℃ ~ +70℃
	Humidity	≤95%RH, no dew, no aggressive gas
	Altitude	≤2500m
Installation method		TS35mm rail designed or screw
