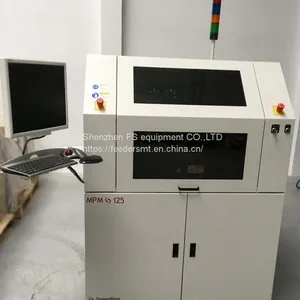

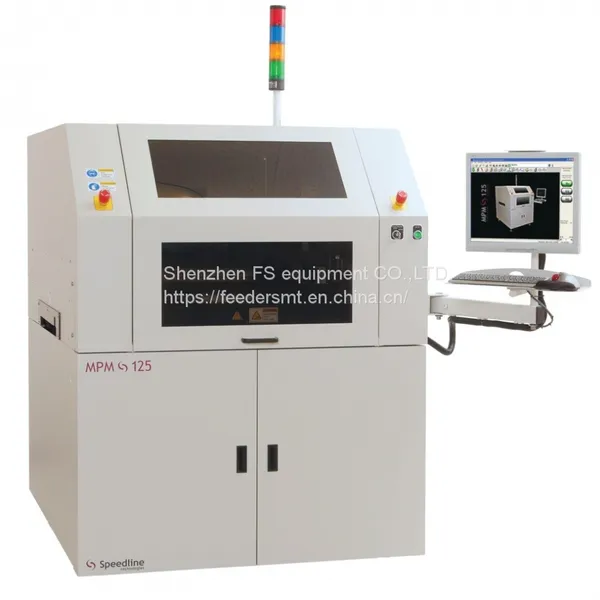

Help CenterSpeedline MPM 125 Screen Printer
Related Products
-
DEK Horizon Screen Printing Solder Paste MachineNegotiableMOQ: 1 Unit -
YCP10 Solder Paste Stencil Printer YAMAHANegotiableMOQ: 1 Unit
-
Stencil Wiping Roll Panasonic SPG SCREEN PAPER CLEANING Fabric RollNegotiableMOQ: 100 Rolls
-
Cleaning Paper Roll For Yamaha YCP10 YSPNegotiableMOQ: 100 Rolls
-
Panasonic Stencil Wiping Roll CleanerNegotiableMOQ: 100 Rolls
Technical Parameters of MPM125 automatic solder paste printing machine:
PCB substrate processing:
Board size (X×Y) 609.6mm×508mm (24″×20″)
Small board size (X×Y) 50.8mm×50.8mm (2″×2″)
Board thickness size 0.2mm (0.008") to 5.0mm (0.20")
Printing parameters
Printing area 609.6mm×508mm
Printing release film 0mm to 6.35mm
Printing speed is as fast as 305mm/sec
Printing pressure 0 to 22.7kg
Steel mesh size 737mm×737mm
performance
System alignment accuracy and repeatability ±12.5 microns (±0.00005″) @60, Cpk is greater than or less than 2.0*
Cycle time 13sec
Power requirements 200 to 240VAC (±10%) single phase @50/60Hz, 15A
Air requirements 100psi at 4 cfm (standard operating mode) to 18 cfm (vacuum wipe) (7 bar@5L/S to 12L/S), 12.7mm (0.5″) diameter pipe
Size: L1593×1214×1638 (mm)
Weight: 872kg
