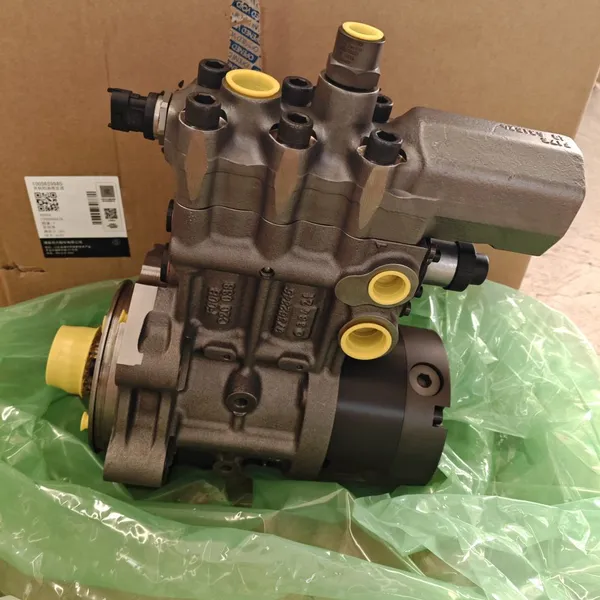

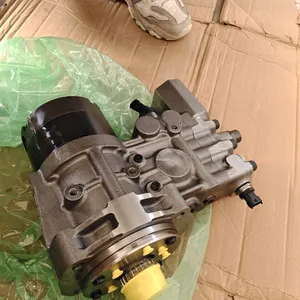

Help CenterWeichai Baudouin 16M33 Engine Parts 1010935000 Fuel Injection Pump Assembly
Related Products
-
612630060035 Temperature Sensor Weichai Engine Suitable for ShacmanUS$ 11 - 1111MOQ: 1 Piece -
1000424655 Ýag Süzgüji / Масляный фильтр / Oil Filter for Weichai Marine Diesel Engine WP4 WP6US$ 11 - 1111MOQ: 1 Piece
-
1003700724 Fuel Filter for Weichai WP6 WP10 WP12 Diesel Engine Used in DredgerUS$ 11 - 1111MOQ: 1 Piece
-
1007927878 Cylinder Liner for Weichai Baudouin 6M33 8M33 12M33 12M26 Diesel EngineUS$ 11 - 1111MOQ: 1 Piece
-
Гильза цилиндра / Cylinder Liner С62.02.24.1000 for CW6200ZC-7 Marine Diesel EngineUS$ 11 - 1111MOQ: 1 Piece
Weichai Baudouin 16M33 Maintenance Table
Safety conditions for preventive and corrective maintenance operations are intended to check.
■ Engine and generator alignment.
■ The tightness of the entire engine unit on the frame.
■ The tightness of the couplings and all elements transmitting power.
■ The isolation and condition electrical equipment.
■ The condition and tightness of electrical connections.
■ Control of gas, lubricating oil and coolant levels.
■ Operation of the alarm safety devices.
■ Replacement of gas, lubricating oil and air filter
| Movements | MD (8h) | M1 (750h ) | M2 (1500h ) | M3 (2250h ) | M4 (3000h ) | M5 (6000h ) | R1 | R2 | R3 |
|---|---|---|---|---|---|---|---|---|---|
| The coolant level | • | ||||||||
| The gas pressure in the pipeline | • | ||||||||
| Oil level | • | ||||||||
| The fan | • | ||||||||
| Lube grease quantity for fan pulley bearing and fan belt tensioner bearing | o | ||||||||
| ECU Panel | • | ||||||||
| Engine Protective Devices | • | ||||||||
| Walk-Around Inspection | • | ||||||||
| The air cleaner service indicator(if equipped) | • | ||||||||
| Belt | • | • | □ | ||||||
| Gas filter | □ | ||||||||
| The rocker arm and cross-bar clearance | o(1) | o(1) | |||||||
| Hose clamps | • | ||||||||
| Hoses and pipes | • | ||||||||
| Engine oil | □ | ||||||||
| The elastic support of engine | • | ||||||||
| Coolant(4000H) | □(2) | ||||||||
| Sensors | •/□ | ||||||||
| Hoses | □ | ||||||||
| Gas shutoff valve | • | ||||||||
| Gas reducer | • | ||||||||
| Overhaul(Top) | □(3) | ||||||||
| Overhaul(Structure) | □(4-) | ||||||||
| Overhaul(Major) | □(5-) |
• = Check
o = Adjust
△ = Clean
□ = Replace
