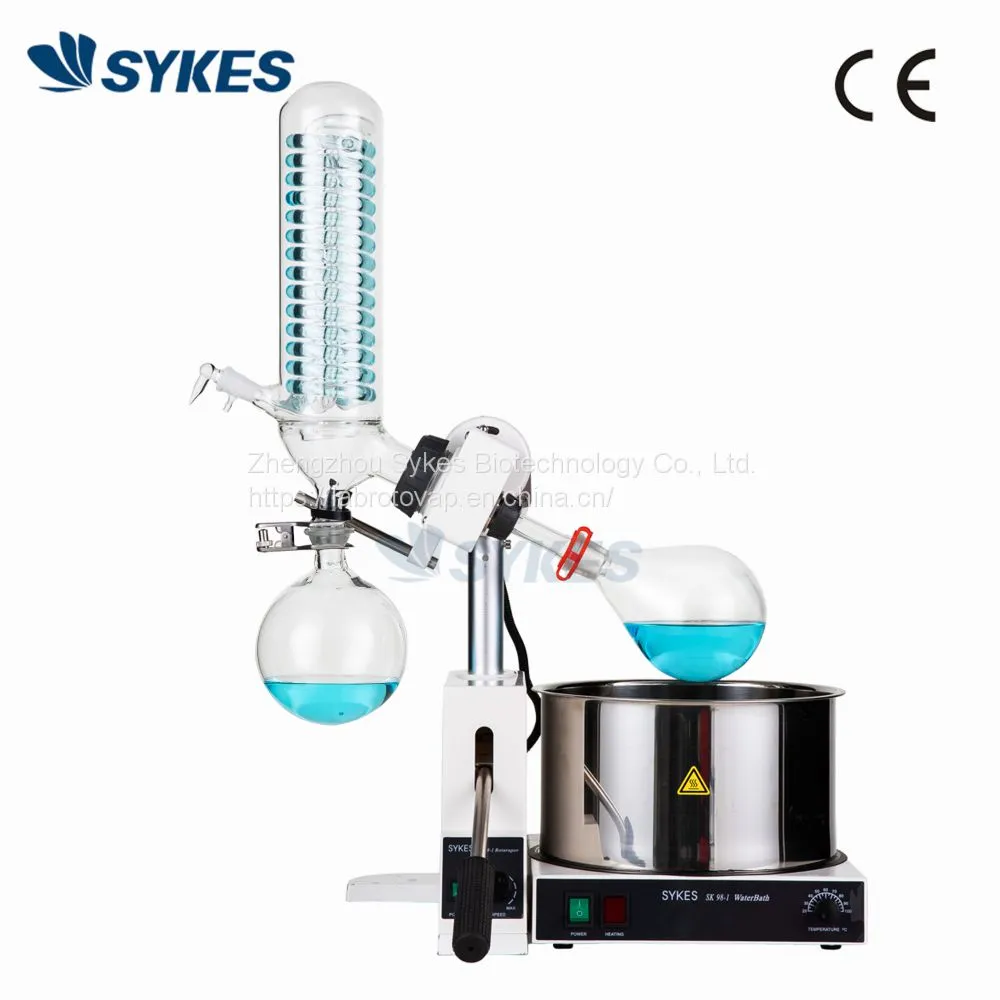

1L Laboratory Small Rotary Vacuum Evaporator Rotovap Rotavapor
Working Principle
An ( Explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.
Application
1. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap )is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.
2. An ( explosion-proof ) rotary evaporator ( also be called rotary vacuum evaporator or Rotary Devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.
Features
1. Sealing rings adopt imported German technology polymer composite to guarantee high vacuum level.
2. Lifting operation is convenient with smooth, and it is convenient to lock it.
3. Equipped with the special motor, rotation speed is stable and smooth, and rotation speed is 10 ~ 120rpm.
4. German mechanical temperature control can guarantee precise control.
5. High efficient condensation can reach 1500c㎡ condensation area.
6. High recovery.

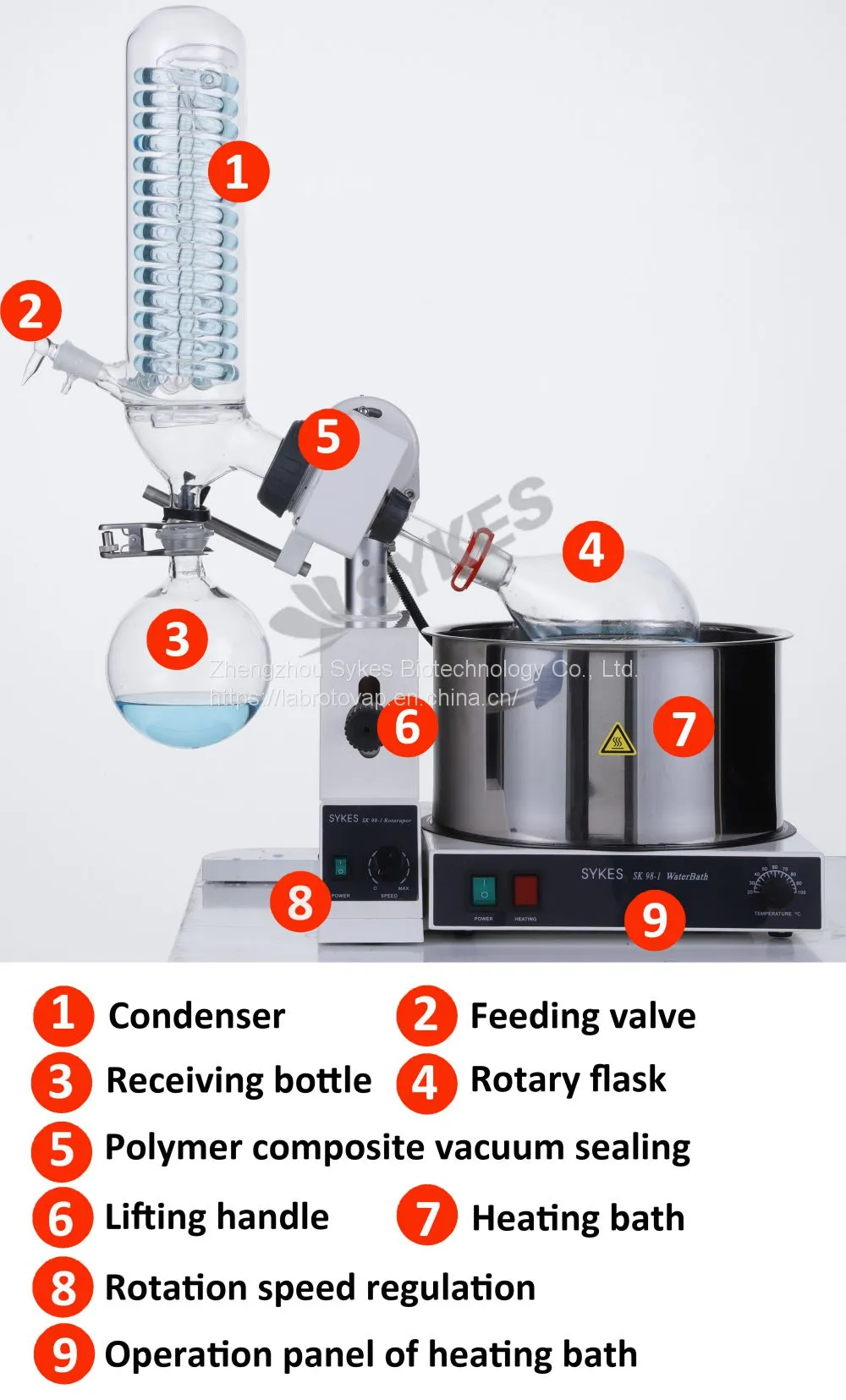

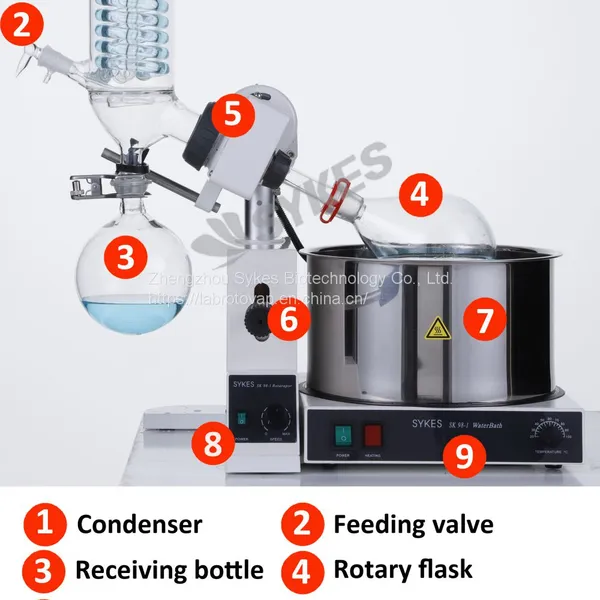

Configuration
Technical Data
Product |
Rotary Evaporator |
|
Model |
SK-98-1 |
|
Performance |
Rotary Speed (R/min) |
10-120 |
Evaporating Speed(ml/min) |
40 |
|
Ultimate Vacuum Degree (mp) |
0.1 |
|
Function |
Speed Control |
Mechanical speed regulation |
Safety Function |
Overload Protection |
|
Lifting |
Manual lifting |
|
Structure |
Motor |
Output Power 25W |
Condenser Type |
Double serpentine condensing tube |
|
Evaporating Flask |
0.5L/ 1L/ 2L Optional |
|
Receiving Flask |
1L |
|
Glass rotation axis |
15*190 |
|
Vacuum Sealing |
Polymer composite |
|
Specification |
Diameter of cooling nozzle (mm) |
10 |
Lifting Distance(mm) |
120 |
|
Temperature Range(℃) |
Room temperature -99℃ |
|
Rated Power Supply (V) |
220 |
|
Dimension (mm) |
400*490 |
|
Weight(kg) |
21 |
|
