Twin Shaft Batch Mixer
Twin Shaft Batch Mixer Introduction:
Twin Shaft Batch Mixer is used for mixing materials continuously & uniformly. During mixing the materials can be uniformly mixed with binder, after mixer; the blended materials can be continuously sent to the conveyor, transmit to the next equipment. Coal Dust Double Shaft Mixer is used for coal, coal slurry, fly ash, sludge, mineral powder, clay, oxidation iron, coal slurry, sludge, clay, fly ash etc. With the good effect on mixing & blending.
Twin Shaft Batch Mixer Working Principle:

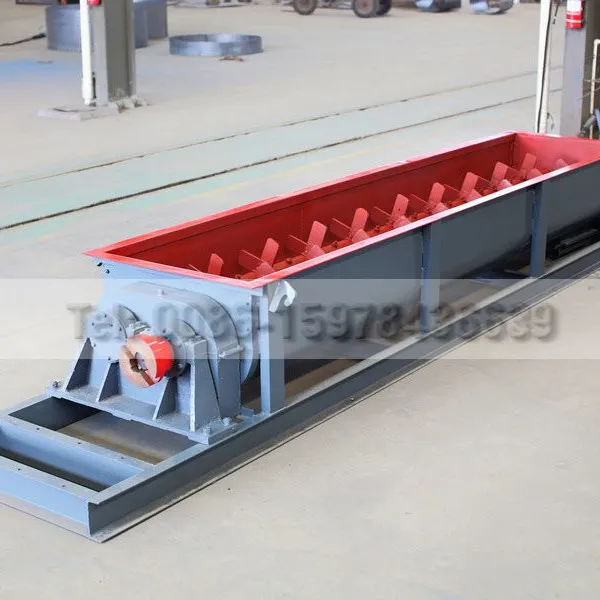

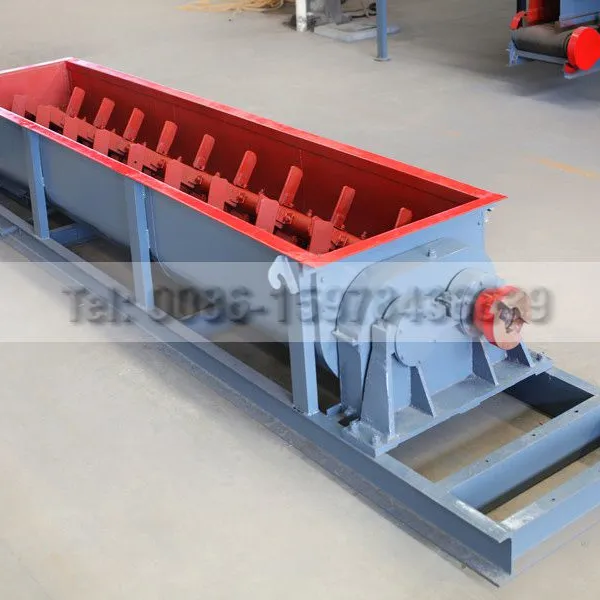

Twin Shaft Batch Mixer has high mixing speed and good uniformity; it can be added into sticky material which contains 30% liquid. When working, the two paddle rotors which do counter rotating are mixing in the middle. As to the paddle has many special angles, no matter the materials' shape, size, and density, the materials is mixed quickly and effectively.
Twin Shaft Batch Mixer Technical Parameter:
| Model | Capacity(t/h) | Chute Length(mm) | Propeller Diameter(mm) | Motor Power(kw) | Stirring Type | Spraying Type |
| 350 | 7-10 | 3-4 | 350 | 11-15 | Double Shaft Propeller Stirring | Straight+Spraying Nozzole |
| 450 | 10-18 | 3-4 | 450 | 15-22 | ||
| 550 | 15-25 | 3-5 | 550 | 22-37 | ||
| 650 | 22-32 | 3-5 | 650 | 37-45 | ||
| Remarks | Capacity will be different based on various material specific gravity | |||||
