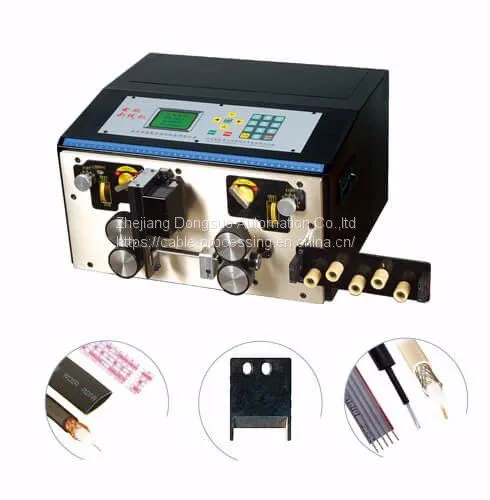

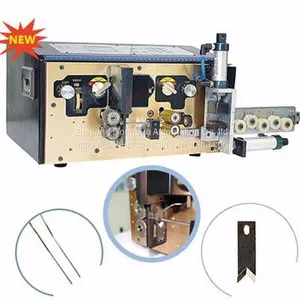

Automatic Wire Cutting and Stripping Machine

Automatic Wire Cutting and Stripping Machine thumbnail-1
Automatic Wire Cutting and Stripping Machine thumbnail-2
Automatic Wire Cutting and Stripping Machine photo-1
Automatic Wire Cutting and Stripping Machine photo-2
US$ 100 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGSUO
Place of Origin:
China
Model Number:
CWCS-3
Contact Supplier Request Quote Chat Now
Zhejiang Dongsuo Automation Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGSUO
Place of Origin China
Model Number CWCS-3
uick Details

  • Place of Origin:

  • China,Jiangsu

  • Brand Name:

  • Wejion

  • Model Number:

  • WJ-S41

  • Usage:

  • cutting stripping

  • Model:

  • WJ-S41

  • Conductor Cross-Section:

  • 0.1-4.5mm²

  • Stripping Length:

  • 0-35mm

  • Intermediate Stripping:

  • Intermediate Stripping

  • Display Screen:

  • Chinese / English LCD Screen

  • Power Supply:

  • 220V/110V

  • Conduit Diameter:

  • 5mm

  • Power:

  • 400W

  • Weight:

  • 28kg

  • Dimensions:

  • 420*400*280mm
Supply Ability

  • Supply Ability

  • 5000 Set/Sets per Month wire stripping machine

Packaging & Delivery

  • Packaging Details

  • wooden case,standard package

  • Port

  • shanghai

  • Lead Time:

  • Quantity(Sets) 1 - 1 2 - 10 11 - 20 >20
    Est. Time(days) 3 5 10 To be negotiated
arameters
Model
WJ-S41
WJ-S42
WJ-S44
WJ-T41
WJ-T42
Features
One wire stripping
Two wires stripping
Four wiresstripping
One wire stripping & twisting
Two wires stripping & twisting
Conductor Cross-Section
0.1-4.5mm²
Single 0.1-4.5mm²
Double 0.1-2mm²
Single 0.1-4.5mm²
Four 0.1-2mm²
0.1-4.5mm²
Single 0.1-4.5mm²
Double 0.1-2.5mm²
Stripping Length
0-35mm
0-35mm
0-35mm
0-30mm
0-30mm
Cutting Length
1-9999.9mm
Cutting Length Tolerances
±(0.002*L)mm
Intermediate Stripping
Max 15 sections
Display Screen
Chinese / English LCD Screen
Wire Feed Method
Roller feeding
Drive Method
4 wheels drive
Power Supply
220V/110V
Conduit Diameter
Φ5mm
Φ5mm
Φ4mm
Φ5mm
Φ5mm
Production Rate
3000-6000pcs/h
5000-10000pcs/h
5000-18000pcs/h
4000-8000pcs/h
4000-8000pcs/h
Power
400W
430W
450W
500W
550W
Weight
28kg
32kg
34kg
32kg
35kg
Dimensions
42*40*28cm
42*40*28cm
42*42*28cm
70*40*28cm
70*40*28cm


Product Tags: Automatic wire cutting machine , Automatic wire stripping machine , Automatic terminal crimping machine
