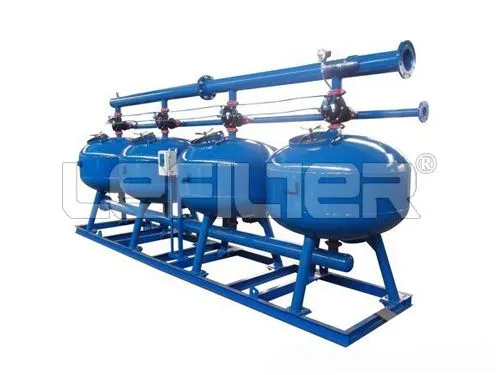

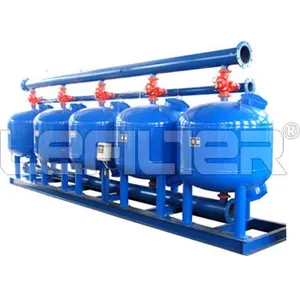

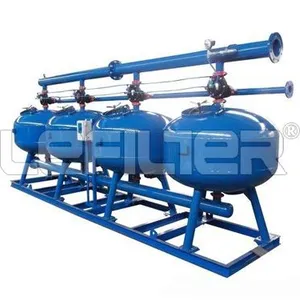

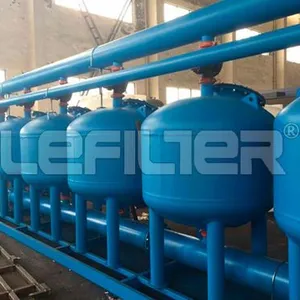

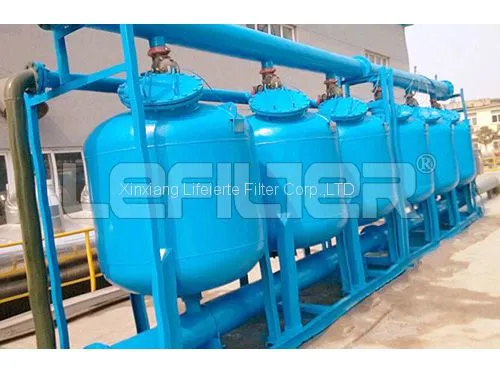

Shallow Sand Filter System for River Water Filtration
US$ 1000 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LEFILTER
Place of Origin:
China
Model Number:
LFQ-2200
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Shanghai / Shenzhen / Guangzhou
Delivery Detail:
15 days
Related Products
-
Control System Shallow Silica Sand Filter EquipmentUS$ 1000 - 5000MOQ: 1 Set -
Automatic Back Flushing Shallow Sand Media Filter For Cooling TowerUS$ 1000 - 5000MOQ: 1 Set
-
Carbon Steel Automatic Water Filter Machine Shallow Sand FilterUS$ 1000 - 5000MOQ: 1 Set
-
LEFILTER Shallow Medium Sand Filter Widely Used in Cooling Tower Circulating WaterUS$ 1000 - 5000MOQ: 1 Set
-
High-speed Sand Filter for Swimming Pool Water TreatmentUS$ 1000 - 5000MOQ: 1 Set
Brand Name
LEFILTER
Place of Origin
China
Model Number
LFQ-2200
Certification
ISO 9001:2015
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Condition
New
Introduction:
The shallow media filtration system consists of one or more standard high-speed filtration units. It is a kind of self cleaning water filter.
The water flows through the internal water distributor and the water collector.With different media,it can effectively remove particulate matter and reduce turbidity.If put in specific filter material, such as activated carbon, anthracite, etc.,the corresponding organic matter and ions can be adsorbed and removed.
The water flows through the internal water distributor and the water collector.With different media,it can effectively remove particulate matter and reduce turbidity.If put in specific filter material, such as activated carbon, anthracite, etc.,the corresponding organic matter and ions can be adsorbed and removed.
The filter unit is available in a variety of sizes from 16" (400mm) to 96" (2400mm) with different installation type.The filter can be used as an independent filtration system,with the water pump in the existing process,if it is used as a bypass filter,it can also be equipped with its own pump. The filter can also be installed on a common pipe with multiple processing units.
This can achieve unlimited filtering capabilities of this system.The backwashing of the filtration system is manual,semiautomatic and fully automatic,which can be started by manual button, PLC and pressure difference.The backwash cycle and backwash time are adjustable and are set to 3 minutes before delivery.This control is implemented by the DLFCS automatic filter control system.Users can also choose PLC control system, which can be realized high-demand control such as centralized or remote communication.
Advantage:
Filter status:
Backwash status:
1. The core components are imported origin (BERMAD, BACCARA, SIEMEN, MITSUBISHI).
2. The filter unit adopts a single-chamber design,which has better backwashing effect and lower rate on sand leak.
3. The water collector is available in stainless steel/ABS material for a longer life.
4. The outlet pipe is set at the bottom of the unit with smaller water resistance,convenient maintenance.
Feature:
1. High filtration speed and low pressure loss,completely solve the problem of slow filtration speed and small flow of ordinary mechanical media filter.
2.With modular settings,small footprint,less piping,low investment,the space is reduced by more than 40%, and the piping engineering capacity is reduced by more than 50%.
3.More functions with manual,semi-automatic,fully automatic backwash operation to meet your needs.
4.The backwash water source can be selected within the system,water tower or external water source, and can be automatically switched (special requirements).
5.It can be a single filter unit or a combination of multiple filter units,and the processing flow capacity can be expanded arbitrarily.
6.The shell and tubes are carbon steel Q235B by phosphate surface treatment with internal and external surface anti-corrosion.It can also be made of stainless steel.
Working principle:
The unfiltered water is evenly distributed through the water distributor, and the water passes through the packing layer in the filter in a laminar flow state. When water flows through the packing layer, impurities are trapped within the packing layer. There are a plurality of evenly distributed water collectors at the bottom of the filter. The filtered water is evenly collected and taken out, and the flat flow filtration can filter the filter at a high flow rate, and still achieve better filtration effect.
As the impurities accumulate in the packing layer, the internal head loss will increase. When the inlet and outlet head loss reaches the set value or reaches the set time, the system will automatically activate the constant pressure difference device to switch to the backwash state. When the backwash is over, the hydraulic valve changes the water supply direction to achieve Backwashing makes it easier to clean the accumulated impurities.
Technical data:
Application:
Contact information:
