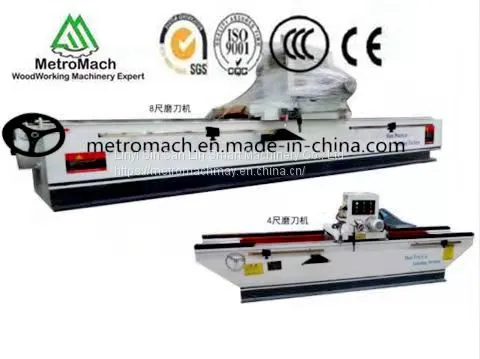

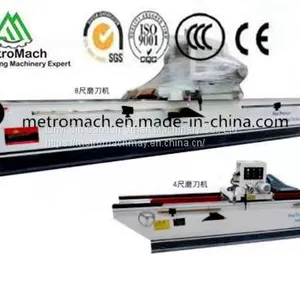

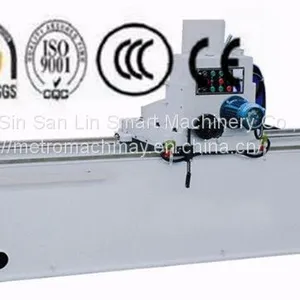

Help CenterAutomatic Woodworking 4FT/ 8FT Knife Grinding Grinder Machine
Related Products
-
Automatic Woodworking 4FT/ 8FT Knife Grinding Grinder MachineUS$ 3000 - 5000MOQ: 1 Set -
Automatic Woodworking 4FT/ 8FT Knife Grinding Grinder MachineUS$ 3000 - 5000MOQ: 1 Set
-
Automatic Woodworking Plywood Core Veneer Assemble Line/Core Veneer Paving Machine LineNegotiableMOQ: 1 Set
-
Automatic Woodworking Plywood Core Veneer Assemble Line/Core Veneer Paving Machine LineNegotiableMOQ: 1 Set
-
Automatic Woodworking Plywood Core Veneer Assemble Line/Core Veneer Paving Machine LineNegotiableMOQ: 1 Set
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.

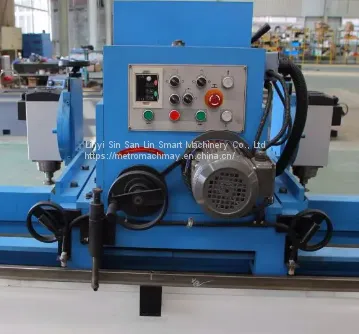

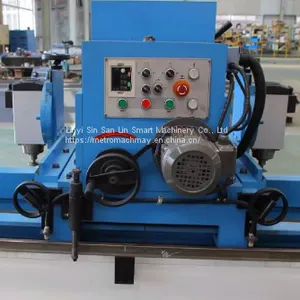

3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.

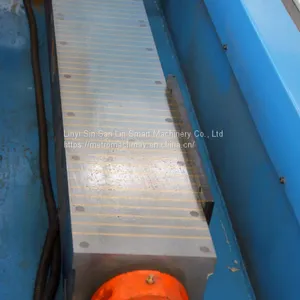

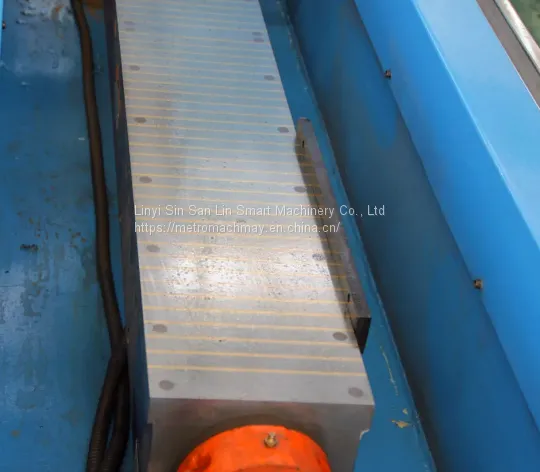

5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters:
| Machine name | Automatic knife grinder |
| Machine model | DM1815 |
| Max. Grinding length | 1500mm |
| Working platform width | 200mm |
| Working platform angle | ±90° |
| Grinding motor power | 4Kw |
| Linear speed of grinding wheel | 15m/s |
| Sliding plate speed | CVT |
| Machine size | 3300 x 1400 x 1400mm |
| Machine weight | 198Kgs |
