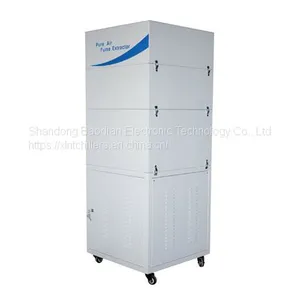

Bao-700 welding fume extractor is a medium-sized welding fume purifier suitable for general welding sites. Bao-700 whole fuselage adopts special structure design. It is small in size, low in noise and movable. It is suitable for indoor use. Bao-700 adopts high-power brand fan with large air volume. With four-stage filter element, the filtration efficiency can be as high as 99%.
Advantage Of Bao-700 Welding Fume Extractor
High efficiency filtration, refuse to penetrate dust: G3 primary efficiency filter element, F5 medium efficiency filter element, H13 high efficiency filter element, gas filter element.
After multi-stage purification, the air does not need to be discharged to the outside, so as to reduce the energy of indoor air conditioning.
Equipped with casters, small size and light body.
Specification Of Bao-700 Welding Fume Extractor
Air Flow 700m3/h
Voltage / Frequency 220V, 50Hz
Input Power 550W
Air Pressure 2000Pa
Filtration Rate 99.97% @ 0.3μm
Filter Type G3 primary Filter + F5 medium efficiency filter+ H13 HEPA filter + gas filter
Noise ≤ 60dB
Exhaust Arm φ150mm x 1.8M
Machine Dimension 550*550*1450mm
N.W 80kg
Application Of Bao-700 Welding Fume Extractor
Suitable for single station manual arc welding, argon arc welding, secondary welding, grinding and polishing and other fume collection and filtration.
Xintchillers is a reliable industrial water chiller manufacturers, we provide co2 laser water chiller, fume extractor, laser cutter extraction, laser cutting fume extraction, fume extractor for laser cutter and etc. Want to know more Please contact us now.
