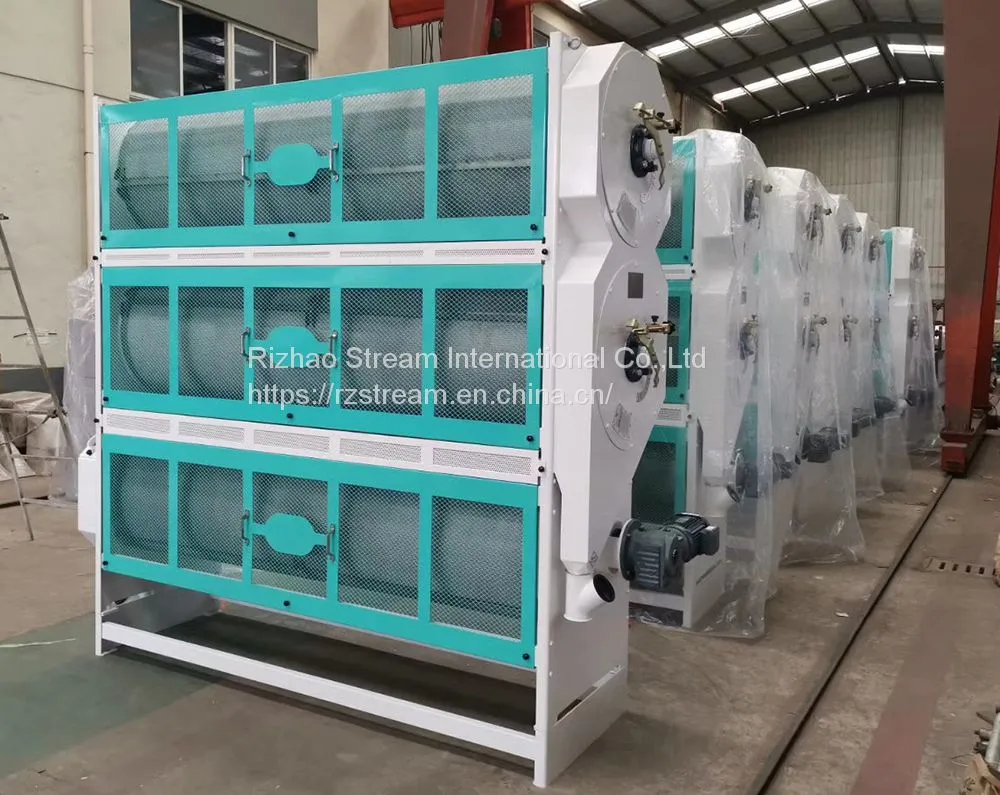

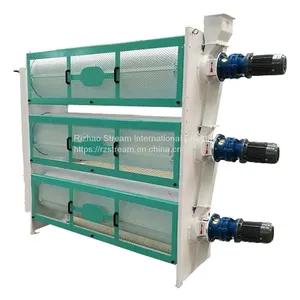

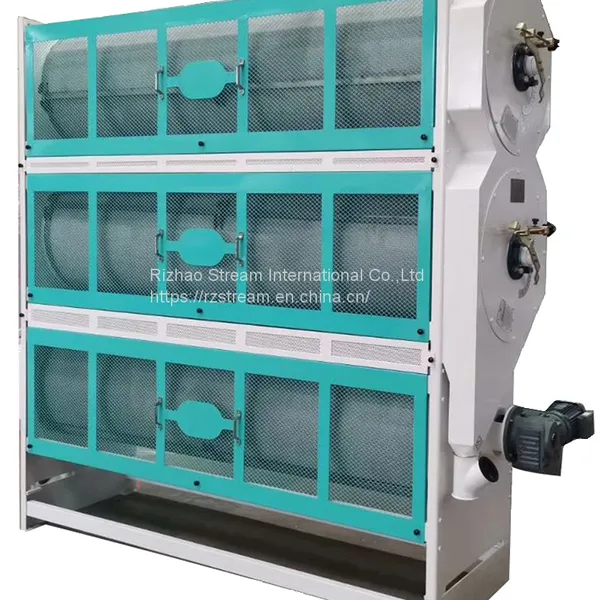

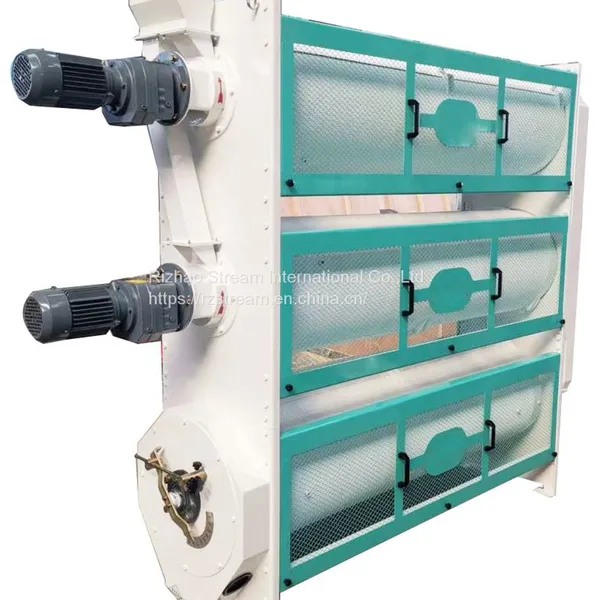

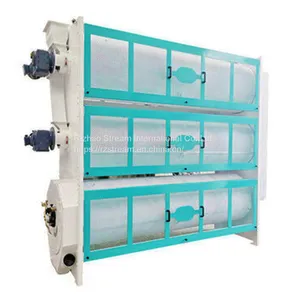

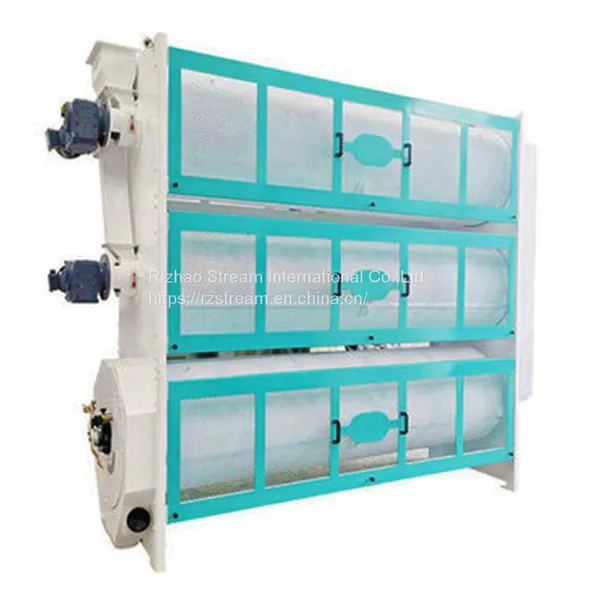

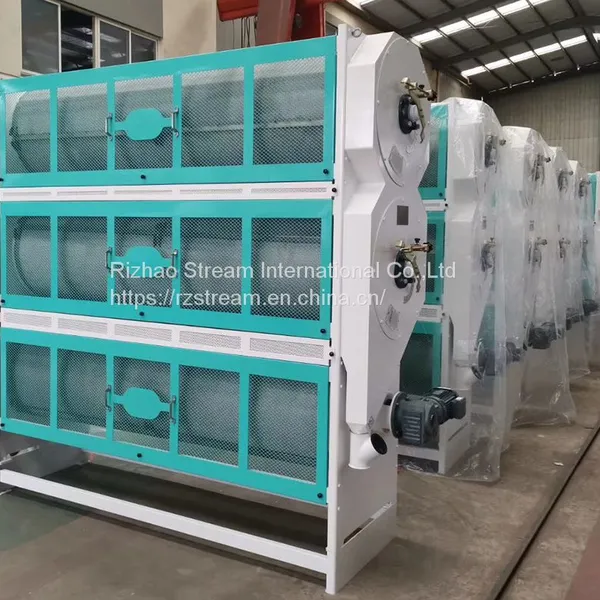

Help CenterMDJY Rice Grader Separator Rice Length Grader Machine
Related Products
-
MMJP Rice Grader Broken Rice Separator Machine of 4 ClassesUS$ 1500 - 2000MOQ: 1 Set -
DCS-15 Automatic Granule Grain Packing Machine Rice Bagging MachineUS$ 8500 - 9500MOQ: 1 Set
-
DCS-50 Cheap 5~50 kg Rice Grain Bag Packing Machine With Bag Sewing PriceUS$ 6000 - 8000MOQ: 1 Set
-
MWPG Rice Water/mist Polisher MachineUS$ 7000 - 9000MOQ: 1 Set
-
DT Series Industrial Continuous Vertical Grain Bucket Elevator Rice Mill Bucket ElevatorUS$ 600 - 800MOQ: 1 Set
Product Usage
MDJY rice length grader is specially designed to separate one or two kinds of broken or shorter grains from whole grain by length with the indented cylinder.
Broken grains which are longer than half of whole grain are difficult to separate through sieving or thickness/width grader but can be picked out by length grader.
Product Features
1.With high degree of precision;It can ensure that no broken rice is in the whole rice and vice versa.
2.The cylinders can be used in parallel or in series according to real requirements.
3. The process can be observe through the inspection window.
4.The sieve tube can be easily replaced and operation is simple.
Working Principle
Take the principle that the whole rice and the broken rice have different lengths to separate the broken rice from the whole rice.
It is assembled with rice grading sieve in flexible technological combinations (either series connection or parallel connection of expansion cylinder) to realize the grading requirements that the whole rice does not contain broken rice.
The grains which are longer in length drop out of the indents before they reach the cat trough. The grains which remain in the indents are thrown into the catch trough.
Technical Parameters
Model |
MDJY50*2 |
MDJY50*3 |
MDJY60/60 |
MDJY60*2 |
Capacity(t/h) |
1.0-1.5 |
2.0-2.5 |
1.0-2 |
2.0-2.5 |
Power(kw) |
0.75*2 |
0.75*3 |
1.1 |
1.1*2 |
Upper roller size (mm) |
500*1800 |
500*1800 |
600*2000 |
600*2000 |
Lower roller size (mm) |
500*1800 |
500*1800 |
/ |
600*2000 |
Fragment in |
≤2 |
≤2 |
≤2 |
≤2 |
the whole | ||||
Crude rice in the processed product |
≤5 |
≤5 |
≤5 |
≤5 |
Overall dimension L*W*H (mm) |
2080*720*1650 |
2080*720*2450 |
2770*1000*950 |
2770*1000*1860 |
Model |
MDJY60*3 |
MDJY71/71 |
MDJY71*2 |
MDJY71*3 |
Capacity(t/h) |
3.0-3.5 |
1.5-1.8 |
4-4.2 |
4.5-5.5 |
Power(kw) |
1.1*3 |
1.5 |
1.5*2 |
1.5*3 |
Upper roller size(mm) |
600*2000 |
710*2500 |
710*2500 |
710*2500 |
Lower roller size(mm) |
600*2000 |
/ |
710*2500 |
710*2500 |
Fragment in |
≤2 |
≤2 |
≤2 |
≤2 |
the whole | ||||
Crude rice in the processed product |
≤5 |
≤5 |
≤5 |
≤5 |
Overall dimension L*W*H(mm) |
2770*1000*2760 |
3300*1000*1050 |
3300*1000*2000 |
3300*1000*3040 |
