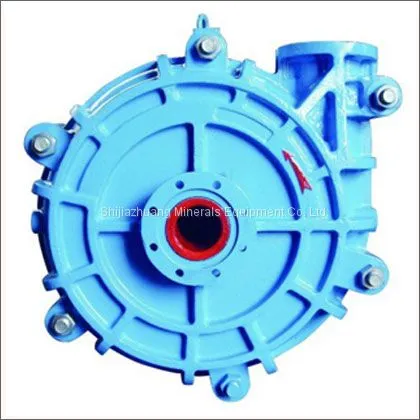

Help CenterSBH Series High Pressure Heavy Duty Slurry Pump
Related Products
-
SM Series Middle Pressure 8-inch Slurry PumpNegotiableMOQ: 1 Set -
SH Series Hard Metal Lined Heavy Duty Slurry PumpsNegotiableMOQ: 1 Set
-
10/8E-M (200EM) Slurry PumpNegotiableMOQ: 1 Set
-
Ball Mill Underflow Slurry Pump SCR/450TU (18-inch)NegotiableMOQ: 1 Set
-
A05 Centrifugal Slurry Pump SH/150E (6-inch)NegotiableMOQ: 1 Set
Certificate: CE/ISO
Place of Origin: Hebei, China
General Introduction:
▶Our horizontal slurry pumps are designed for heavy-duty applications such as mining, minerals processing, mill discharge, power plants, tailings, and other industrial applications, for maximum abrasion, erosion, and corrosion resistance.
▶The slurry pumps are in a wide range of sizes, available with both high chrome and rubber wearing parts. Components like impeller and volute come in a range of hard metal types and elastomers to suit the specific application.
▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal, and mechanical seal.
▶Our metal-lined slurry pumps are designed for heavy-duty industrial applications, to handle the most arduous slurries.
▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp-edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.
▶The high head (high pressure) pumps are suitable for heavy-duty applications where require a higher head per stage or higher pressure.
▶They are mainly used for long-distance transportation or other applications where more than one pump is required.
▶SBH slurry pump liners were designed to produce high heads per stage at high pressures.
Specifications:
|
Pump Model |
S×D (inch) |
Allowable Max. Power (kw) |
Material |
ClearWater Performance |
Impeller |
||||||
Capacity Q |
Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
NPSH (m) |
No. of Vanes |
Vane Dia. (mm) |
|||||
Impeller |
m3/h |
l/s |
|||||||||
SBH/25C |
1.5×1 |
30 |
Metal (A05) |
16.2-34.2 |
4.5-9.5 |
25-92 |
1400-2200 |
20 |
2-5.5 |
5 |
330 |
SBH/50D |
3×2 |
60 |
68.4-136.8 |
19-38 |
25-87 |
850-1400 |
47 |
3-7.5 |
457 |
||
SBH/75E |
4×3 |
120 |
126-252 |
35-70 |
12-97 |
600-1400 |
50 |
2-5 |
508 |
||
SBH/100F |
6×4 |
260 |
324-720 |
90-200 |
30-118 |
600-1000 |
64 |
3-8 |
720 |
||
SBH/100S |
6×4 |
560 |
324-720 |
90-200 |
30-118 |
600-1000 |
64 |
3-8 |
720 |
||
SBH/150S |
8×6 |
560 |
468-1008 |
130-280 |
20-94 |
500-1000 |
65 |
4-12 |
711 |
||
Materials:
Description of Parts |
Material |
Material Code |
Pump Body, Split-Casing |
Grey Iron |
G20/G21 |
Ductile Iron |
D20/D21 |
|
|
Impeller, Volute, Wear Liners, Expeller, Expeller Ring, Stuffing Box |
27% High Chrome |
A05 |
28% High Chrome, Low Carbon |
A49 |
|
Shaft |
304 Stainless Steel |
C21 |
316 Stainless Steel |
C23 |
|
Shaft Sleeve |
304 Stainless Steel |
C21 |
316 Stainless Steel |
C23 |
|
Aluminum Oxide Coating, White |
J04 |
|
Chrome Oxide Coating, Black |
J05 |
Applications:
Ball/Rod mill discharge
Coarse sand/tailings
Minerals concentrate
Heavy media
Bottom/fly ash, lime grinding
Features and Advantages:
▶Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime
▶Large, open internal passages designed to reduce internal velocities, maximize wear life, and lower operating costs
▶Minimal shaft/impeller overhang reduces shaft deflection and increases packing life
▶Effective expeller prolongs packing life while reducing or eliminating flush water requirement.
