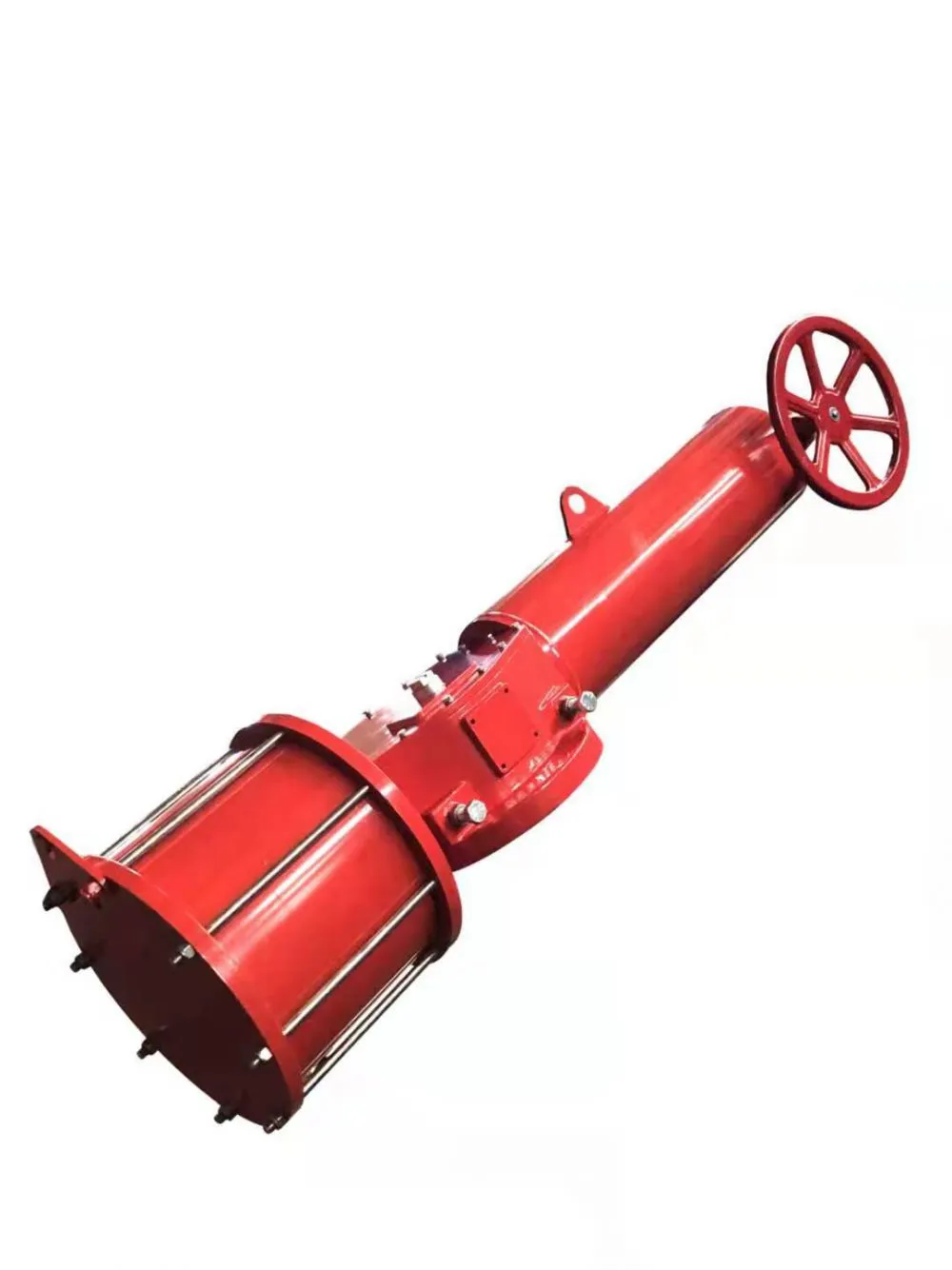

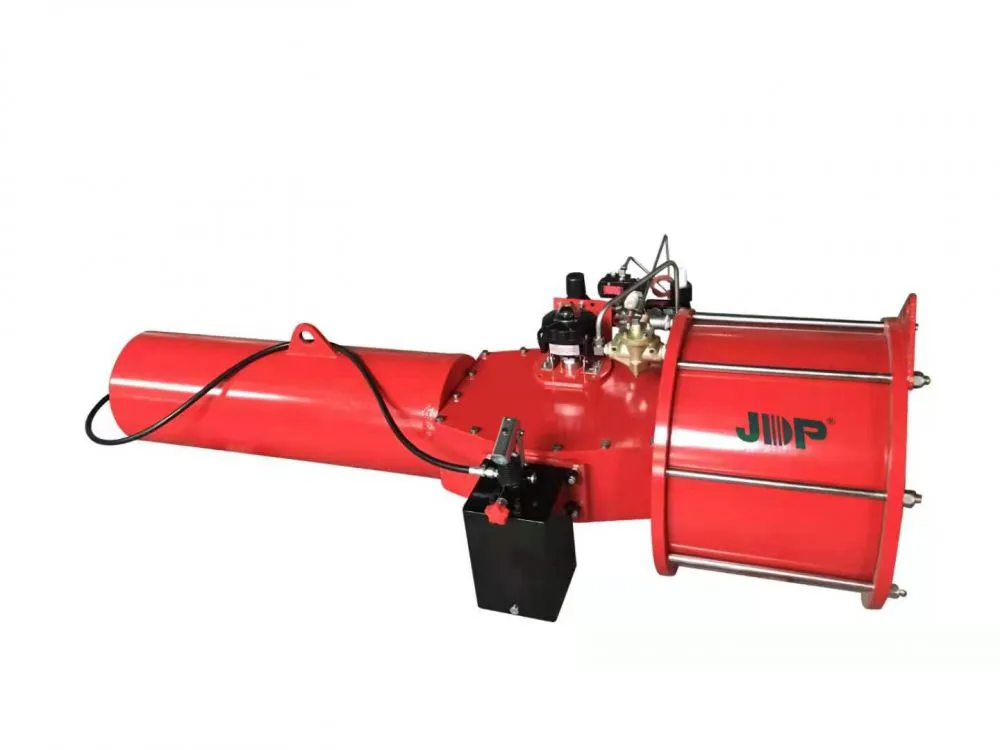

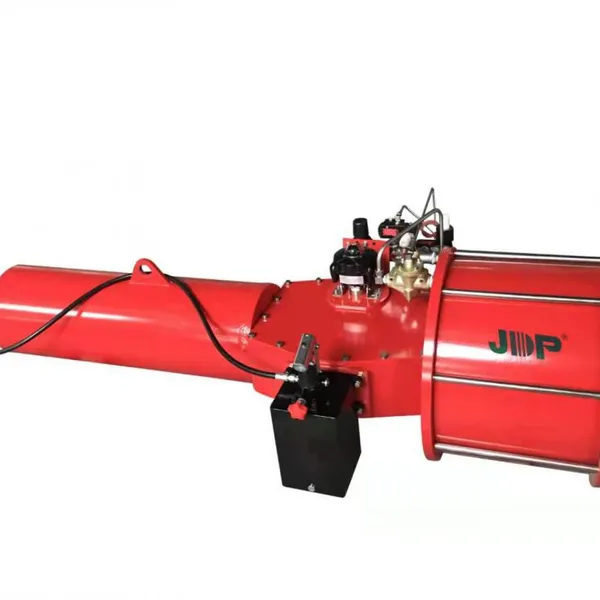

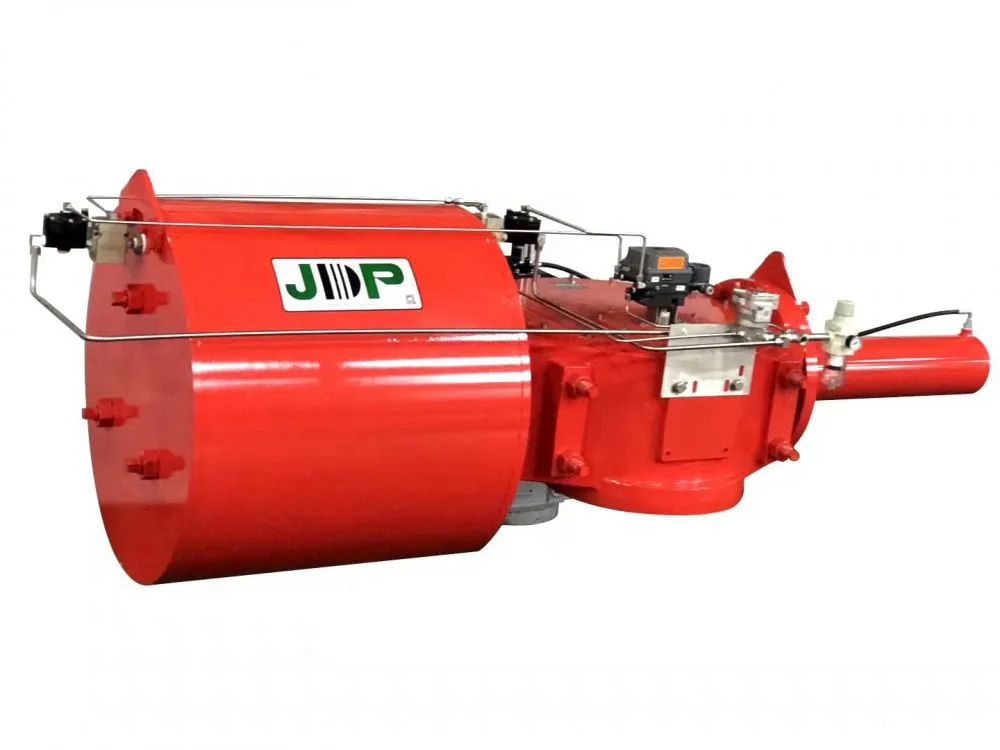

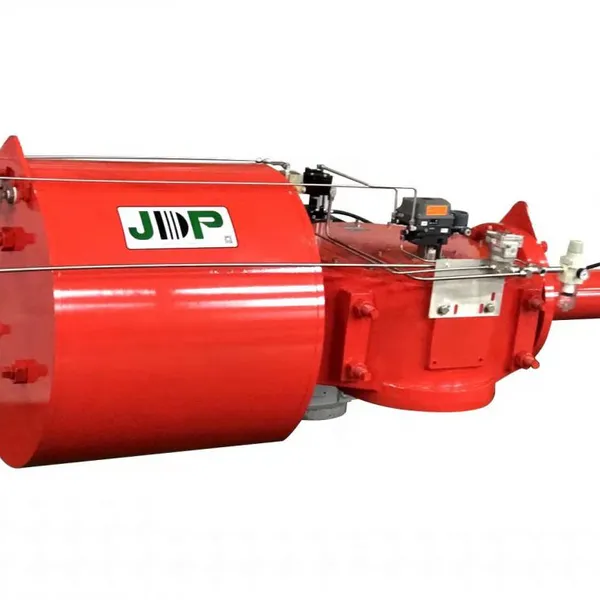

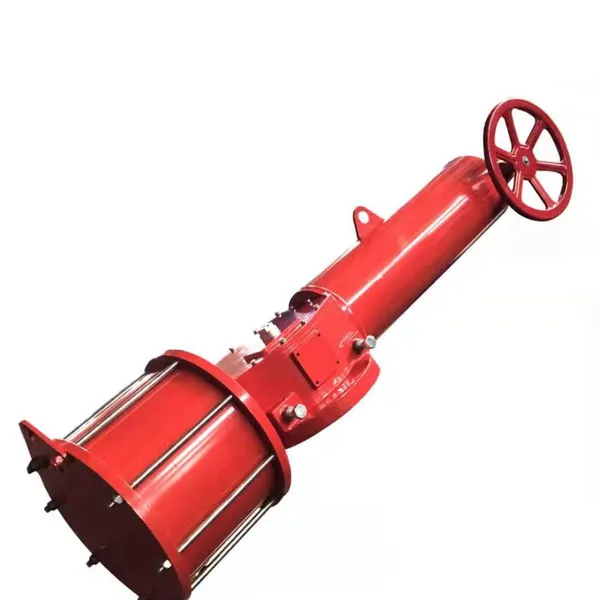

Pneumatic fork actuator
Product features
K series pneumatic fork actuator is divided into double acting, single acting spring return and hydraulic manual operation of three categories. The actuator is available in a variety of configurations and adopts a modular design with power modules. Perform mold
Block, spring module and hydraulic manual module can ensure the site maintenance is simple and safe. K series actuators are the most compact and lightweight actuators for installation. K series actuators consist of a separate cylinder belt
Moving the output shaft to realize 90 degree rotation movement. All sliding parts are equipped with oil-free bearings and guide rings to reduce the coefficient of friction and extend their service life. U-shaped characteristic curve of K series actuator
Line, output torque is more suitable for ball valve, butterfly valve isometric stroke configuration, especially suitable for driving large diameter and high pressure grade valves. Guide devices are provided in the execution module and the power module, which makes the execution mechanism move
It is stable and reliable.
